Giada

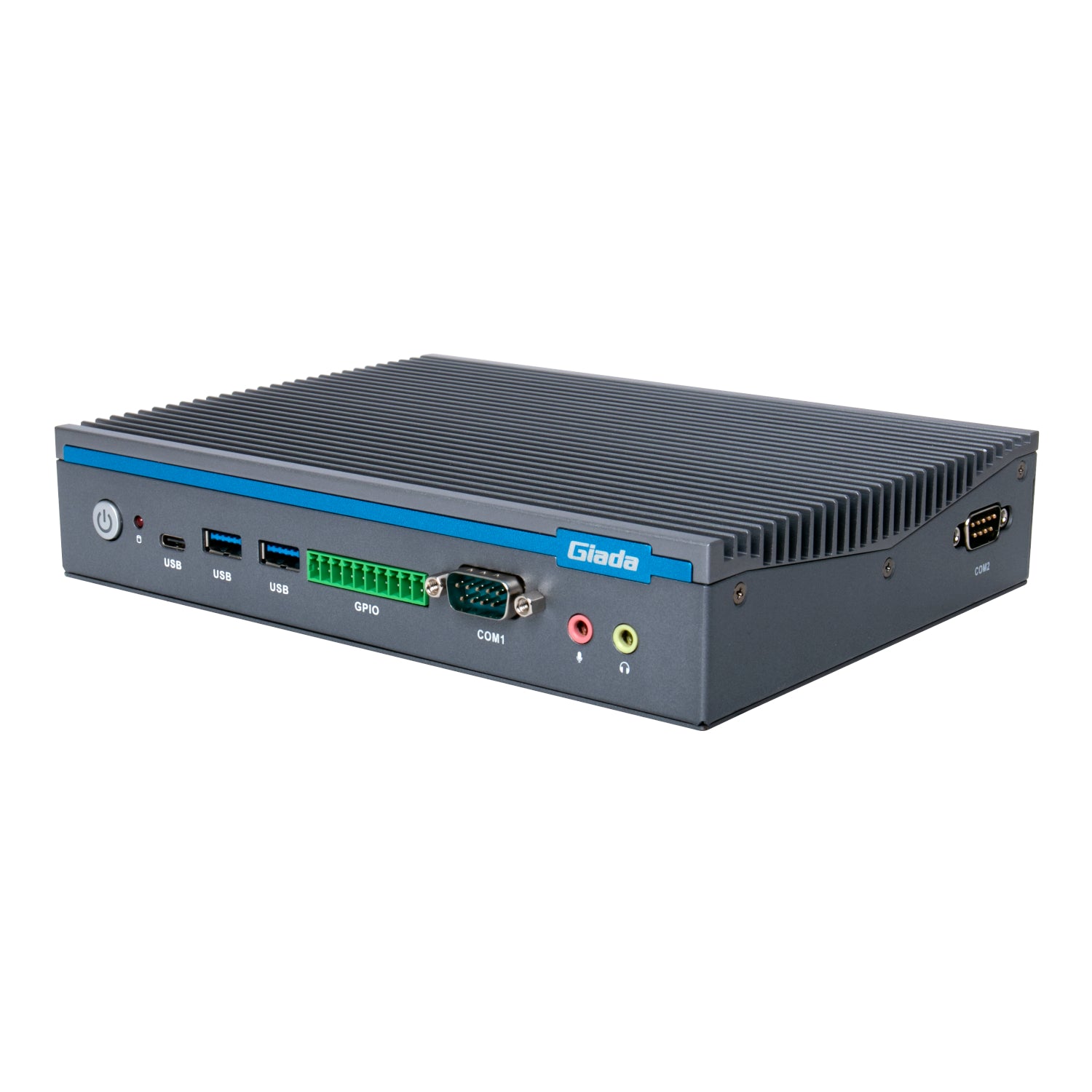

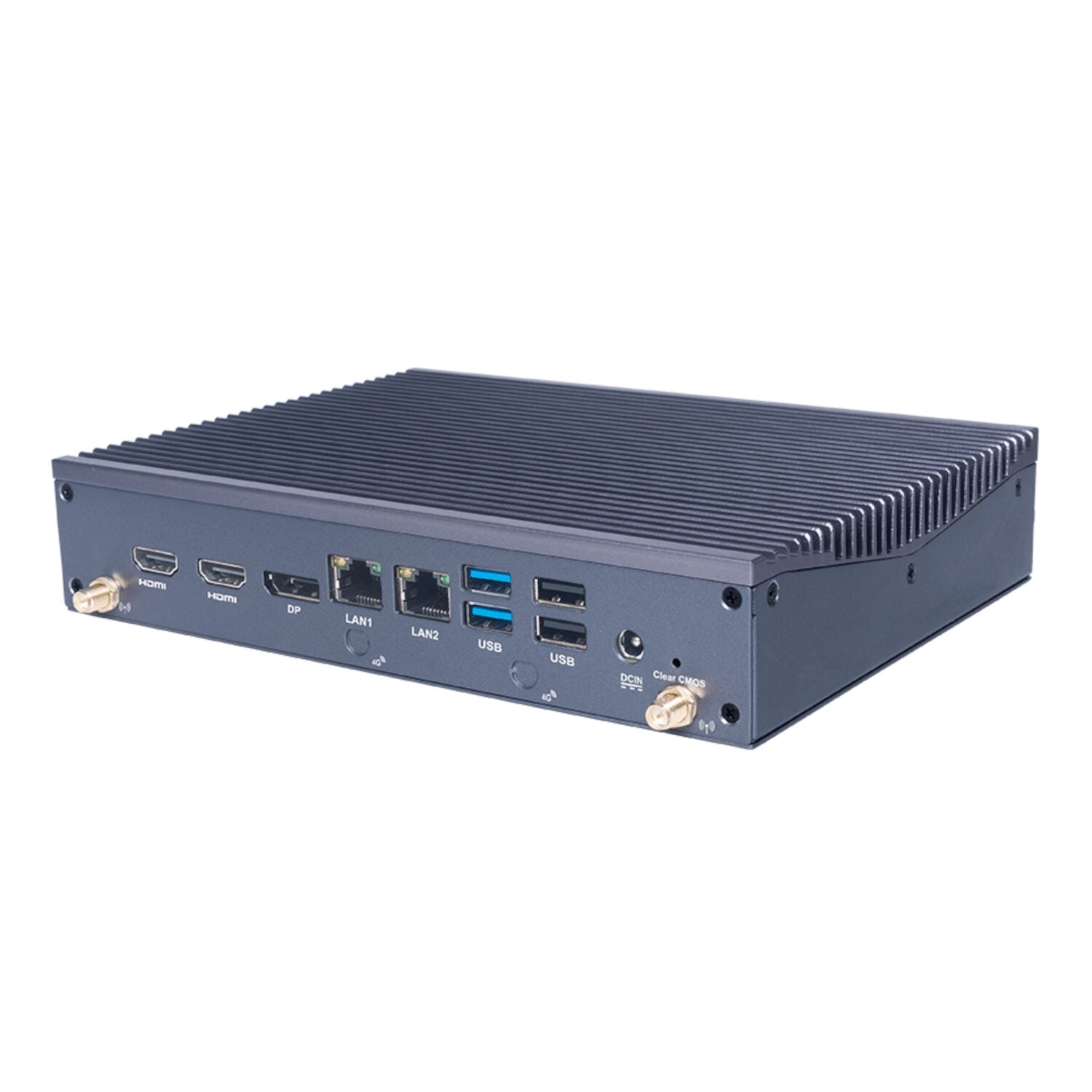

Giada DF613-I Fanless 8K Digital Signage Player, Intel 13th Gen Core i5
Pickup available at NexGen Computing
Usually ready in 24 hours
The Giada DF613 Fanless High-Performance PC is a compact, industrial-grade computing solution engineered for demanding digital signage and edge computing environments. Powered by Intel’s 13th Gen processors, this robust system delivers high-efficiency performance with ultra-low power consumption. It is ideal for mission-critical deployments in retail, transportation, and smart city infrastructures.
Designed to operate silently, the Giada DF613 Fanless High-Performance system features a fanless thermal architecture that ensures consistent and reliable performance in noise-sensitive or dust-prone environments. Support for 8K resolution and quad display output enables vivid, immersive visual experiences for content-driven applications, including multi-screen digital signage and real-time analytics.
Connectivity is optimised with dual LAN ports, multiple USB and COM interfaces, and a high-speed M.2 slot for flexible expansion. TPM 2.0 support and industrial-grade stability ensure the Giada DF613 Fanless High-Performance PC meets enterprise-level security and reliability standards.
Whether deployed in harsh industrial settings or modern commercial spaces, the Giada DF613 Fanless High-Performance system is purpose-built for uninterrupted 24/7 operation, offering superior longevity, energy efficiency, and deployment versatility.
FEATURES:
| Fanless, ultra-silent design | |
| Intel® 13th gen CPU support | |
| Supports up to 8K display ultra-high-definition visuals | |
| Quad display output for enhanced content delivery and multi-screen setup | |
| 8 Bi-directional GPIO port (10-pin Phoenix) | |
| Dual LAN with teaming ensures stable, high-throughput networking | |
| Rich I/O interface | HDMI, DisplayPort, USB, COM ports, and M.2 expansion |
| TPM 2.0 security module enables enterprise-grade data security and hardware-based encryption | |
| Industrial-grade reliability built for 24/7 operation in commercial, industrial, and embedded system environments | |
| Compact, slimline form factor space-saving chassis facilitates easy integration into space-constrained installations | |
SPECIFICATIONS:
| CPU | |
| CPU | Intel® CoreTM i5-1335U processor |
| E-Core Frequency | 3.30 GHz |
| P-Core Frequency | 4.50 GHz |
| Chipset | SoC |
| Processing Units | 6 Cores |
| Base Power | 15 W /15 W |
| Network | |
| Network Controller | |
| 1 x Intel i219-LM Gigabit Ethernet | |
| 1 x Realtek RTL8111H Gigabit Ethernet | |
| Ethernet Interface | 2 x RJ45 |
| Wi-Fi/BT | |
| 1 x E-Key M.2 (2230) for Wi-Fi/BT | |
| Support Wi-Fi 5/6/6E (CNVi) | |
| Mobile Network | |
| 1 x B-Key M.2 (3042) for 3G/4G, | |
| 1 x SIM Slot | |
| System | |
| System Memory | Up to 64 GB, 2 x SO-DIMM DDR4-3200 MHz |
| Storage | 1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD |
| Watchdog Timer | Yes |
| Auto Power On | Yes |
| RTC | Set up independently every day, a week as a cycle |
| Power Requirement | DC-IN, 19 V/4.74 A |
| Dimensions | 20 x 15 x 4 cm |
| Construction | Metal, Grey |
| Operating System | Windows 11 (64bit) /Linux Ubuntu (64bit) |
| Operating Temperature | 0°C ~45°C @0.7m/s Air Flow |
| Certifications | CE, FCC Class B, UKCA |
| Humidity | 95% @ 45°C (non-condensing) |
| Display | |
| GPU | Intel® Iris® Xe Graphics (Core i5) |
| Graphic Engine | DirectX 12.1, OpenGL 4.6, Opencl 3.0,8K 60fps 12b 4:2:0 HEVC/VP9/SCC |
| DirectX 12.1, OpenGL 4.6, Opencl 3.0, | |
| 8K 60fps 12b 4 | 2:0 HEVC/VP9/SCC |
| Display Interface | 1 x DP (Max.7680 x 4320 @60 Hz)2 x HDMI (Max.4096 x 2304 @60 Hz) |
| 1 x DP (Max.7680 x 4320 @60 Hz) | |
| 2 x HDMI (Max.4096 x 2304 @60 Hz) | |
| # of Displays Supported | 3 |
| I/O interface | |
| USB1 x USB Type-C,4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0 | |
| 1 x USB Type-C, | |
| 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0 | |
| GPIO | 8 bi-directional GPIOs (10-pin Phoenix) |
| Serial Port | 1 x RS232, 1 x RS232/422/485 |
| Audio | 1 x MIC-IN, 1 x AUDIO-OUT |
| Button | 1 x Power on, 1 x CLR-CMOS |
| Antenna2 x Connector for Wi-Fi/BT2 x Connector for 3G/4G (Reserved) | |
| 2 x Connector for Wi-Fi/BT | |
| 2 x Connector for 3G/4G (Reserved) | |
| Dimension | 20 x 15 x 4 cm |
WHAT'S IN THE BOX:
- Giada DF613-I i5-1335U Raptor Lake Fanless signage Player x1
