Giada DN84 Fanless ARM Player with Rockchip RK3576
Couldn't load pickup availability
High-Performance, Silent, and AI-Ready Edge Computing
Introducing the Giada DN84, a compact and powerful fanless ARM player designed for demanding edge AI and digital signage applications. At its core is the advanced Rockchip RK3576 octa-core processor, which combines four Cortex-A72 performance cores with four Cortex-A53 efficiency cores. This architecture, coupled with an integrated 6 TOPS NPU, delivers exceptional AI performance for tasks like image analysis and intelligent data processing right at the edge. Its rugged, all-metal, fanless construction ensures silent, 24/7 reliable operation, making it perfect for noise-sensitive or harsh environments.
Stunning Dual 4K Visuals
The Giada DN84 is engineered for visual excellence, featuring dual HDMI outputs capable of driving two independent displays. One port supports a stunning 4K (3840 x 2160) resolution at 120Hz, while the second supports 2560 x 1600 at 60Hz, providing crystal-clear and fluid visuals for high-impact digital signage, interactive kiosks, and complex monitoring setups. The integrated Mali-G52MC3 GPU ensures robust graphics performance, supporting OpenGL ES3.2, OpenCL2.0, and Vulkan for a wide range of multimedia applications.
Versatile Connectivity and OS Support
Experience seamless integration with a comprehensive set of I/O ports, including three USB 3.2 Gen1 ports, Gigabit Ethernet, and onboard Wi-Fi/BT for robust connectivity. The DN84 offers unparalleled software flexibility with support for both Android 14 and Debian 12 operating systems. This allows developers to choose the ideal platform for their application, whether it's for streamlined app integration on Android or leveraging advanced AI frameworks on Debian. With its low power consumption of just 6W TDP, the DN84 is an energy-efficient solution for continuous operation.
Comprehensive Specifications
| System | |
|---|---|
| CPU | Rockchip RK3576 Octa-Core Processor (4x Cortex-A72 & 4x Cortex-A53) |
| NPU | 6 TOPS RKNN, supports int4/int8/int16/FP16/BF16/TF32 acceleration |
| TDP | 6W |
| Memory | 4 GB Onboard LPDDR4/LPDDR4x (8 GB Optional) |
| Storage | 64 GB Onboard eMMC |
| Expansion | 1 x M-Key M.2 (2242) for SSD (Optional) |
| Supported OS | Android 14 / Debian 12 |
| Graphics & Display | |
| GPU | Mali-G52MC3 |
| Graphic Engine | OpenGL ES3.2, OpenCL2.0, Vulkan |
| Video Decoder | 8K@30fps H.264/H.265/VP9/AV2/AVS2 |
| Video Encoder | 4K@60fps H.264/H.265 |

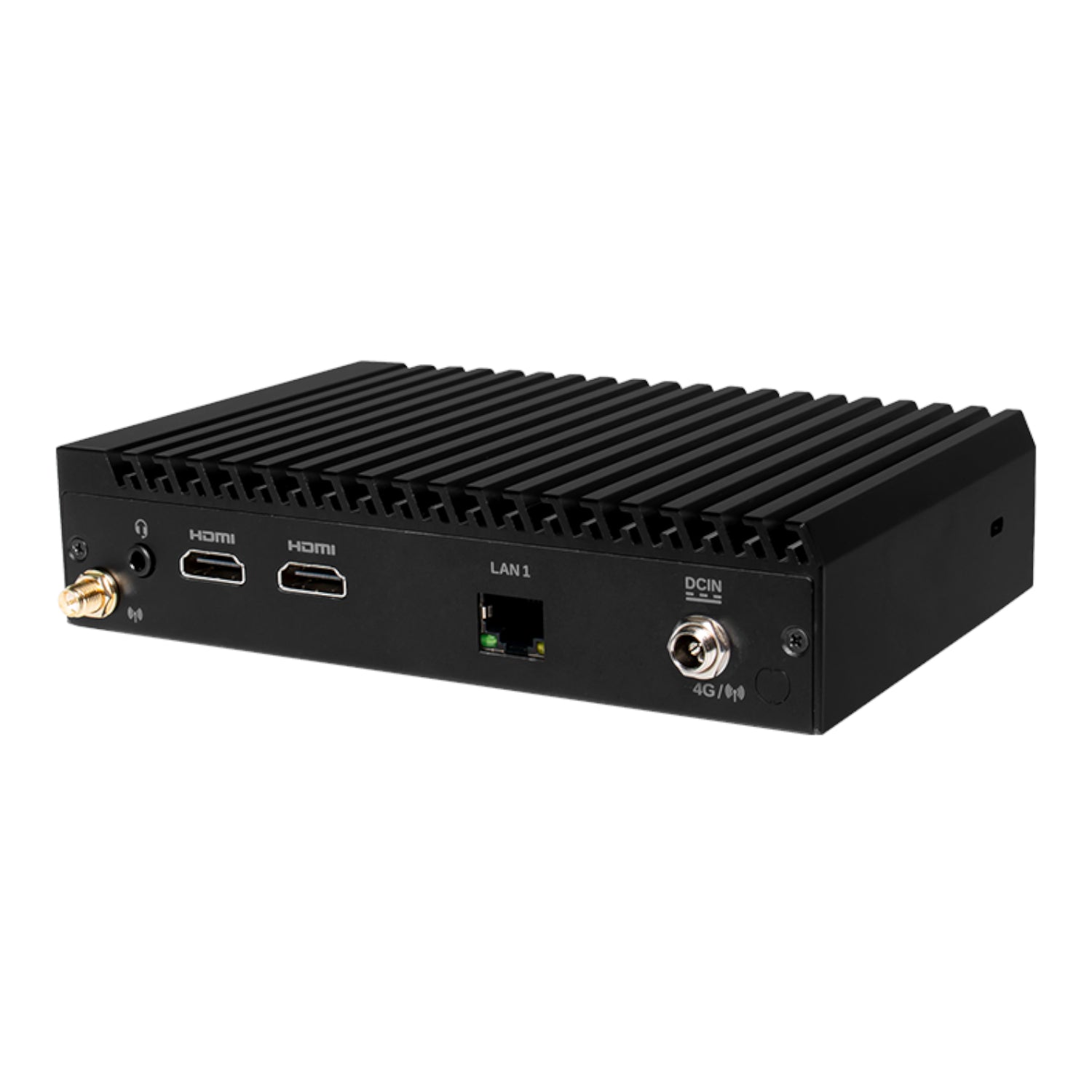

| Display Interface | 1 x HDMI (Max. 3840 x 2160 @120Hz) 1 x HDMI (Max. 2560 x 1600 @60Hz) |
| I/O Interfaces | |

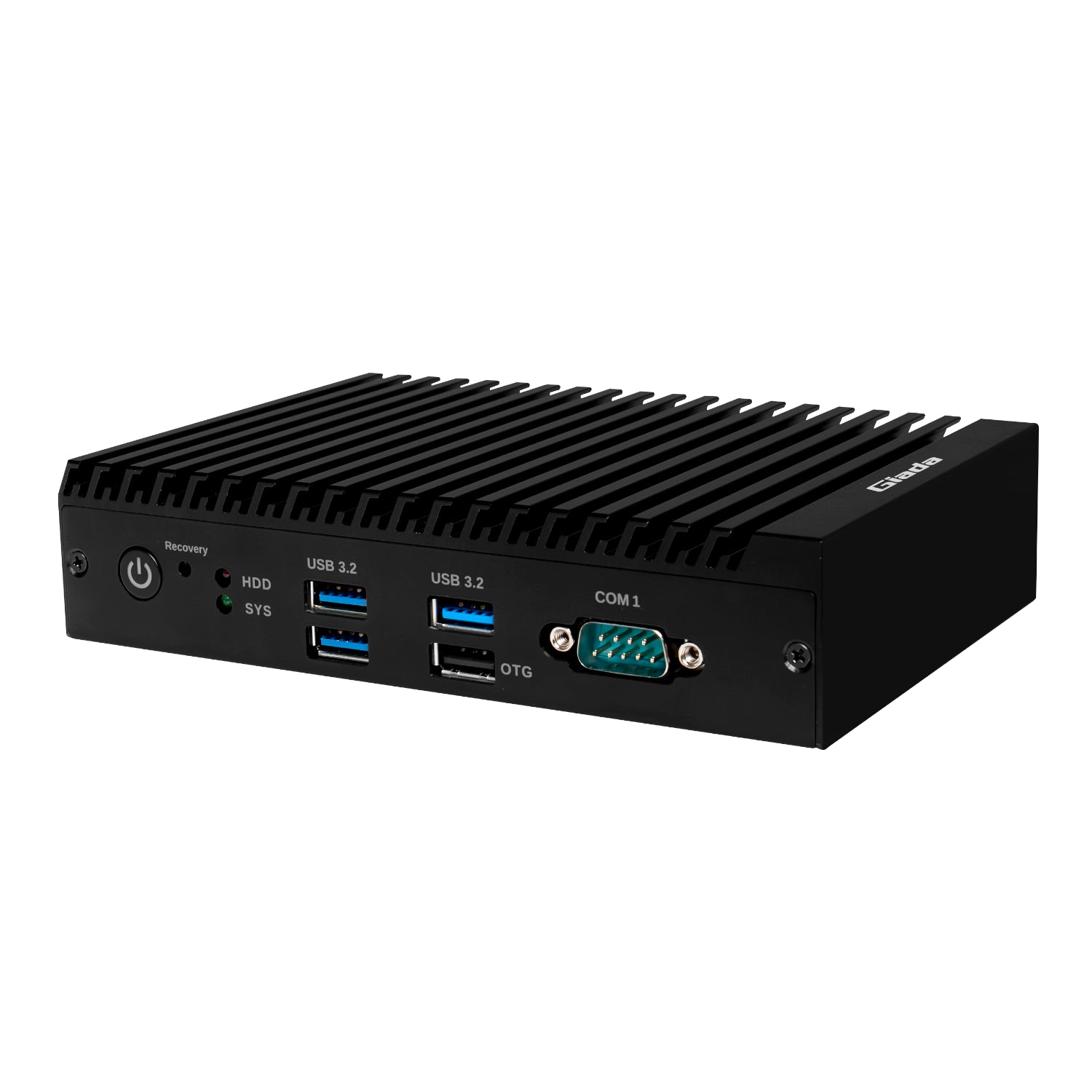

| USB | 3 x USB 3.2 Gen1, 1 x USB 2.0 (OTG) |
| Serial Port | 1 x RS232 (Optional: 1 x RS232, 2 x RS485) |
| Audio | 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) |
| Networking | 1 x RJ45 Gigabit Ethernet (Realtek RTL8211F) |
| Wireless | Onboard Wi-Fi/BT Module (1 x Antenna Connector) |
| Mobile Network | 1 x M.2 (3042) for 3G/4G, 1 x SIM Slot (Reserved) |
| Mechanical & Environmental | |
| Power | Lockable DC-IN, 12V/3A |
| Construction | Metal, Black |
| Dimensions | 165 mm x 108 mm x 40 mm |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) @0.7m/s Air Flow |
| Humidity | 95% @ 45°C (non-condensing) |
| Certifications | CE, FCC Class B, UKCA |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
