Grandstream

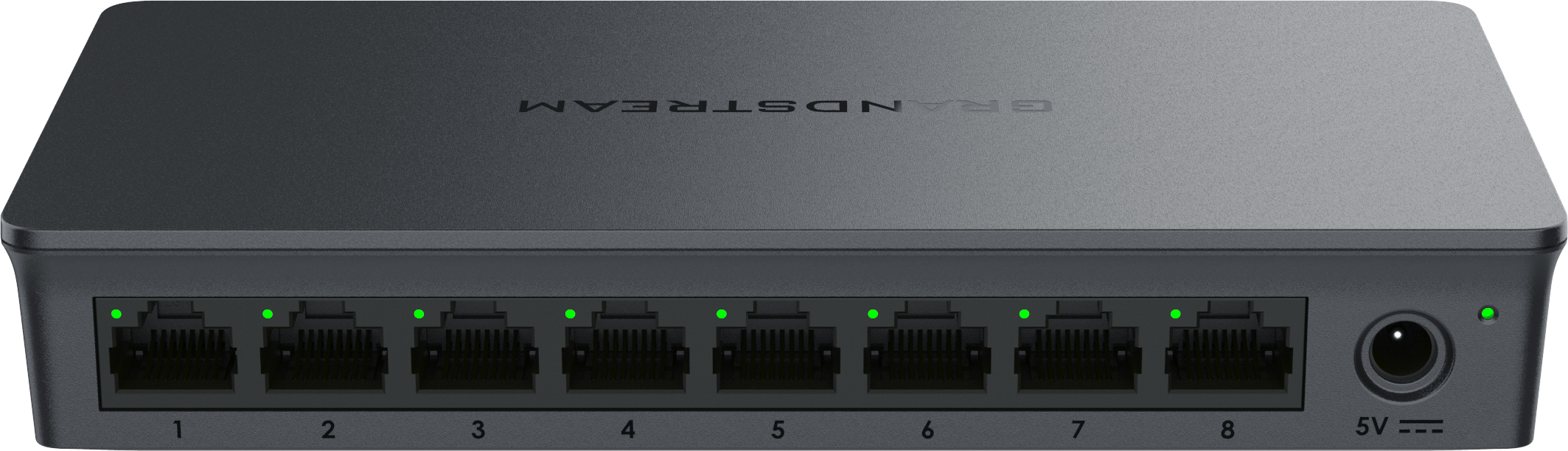

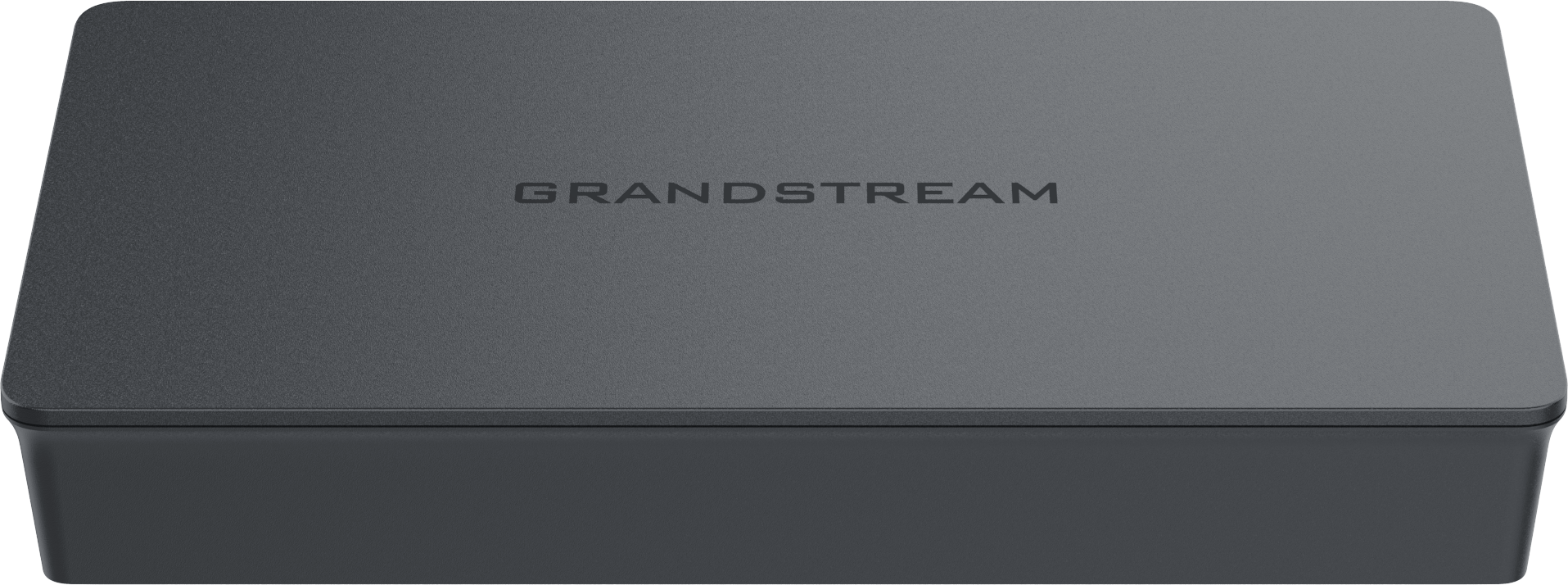

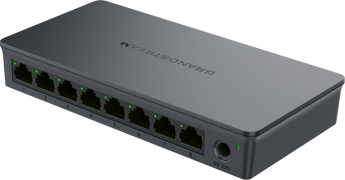

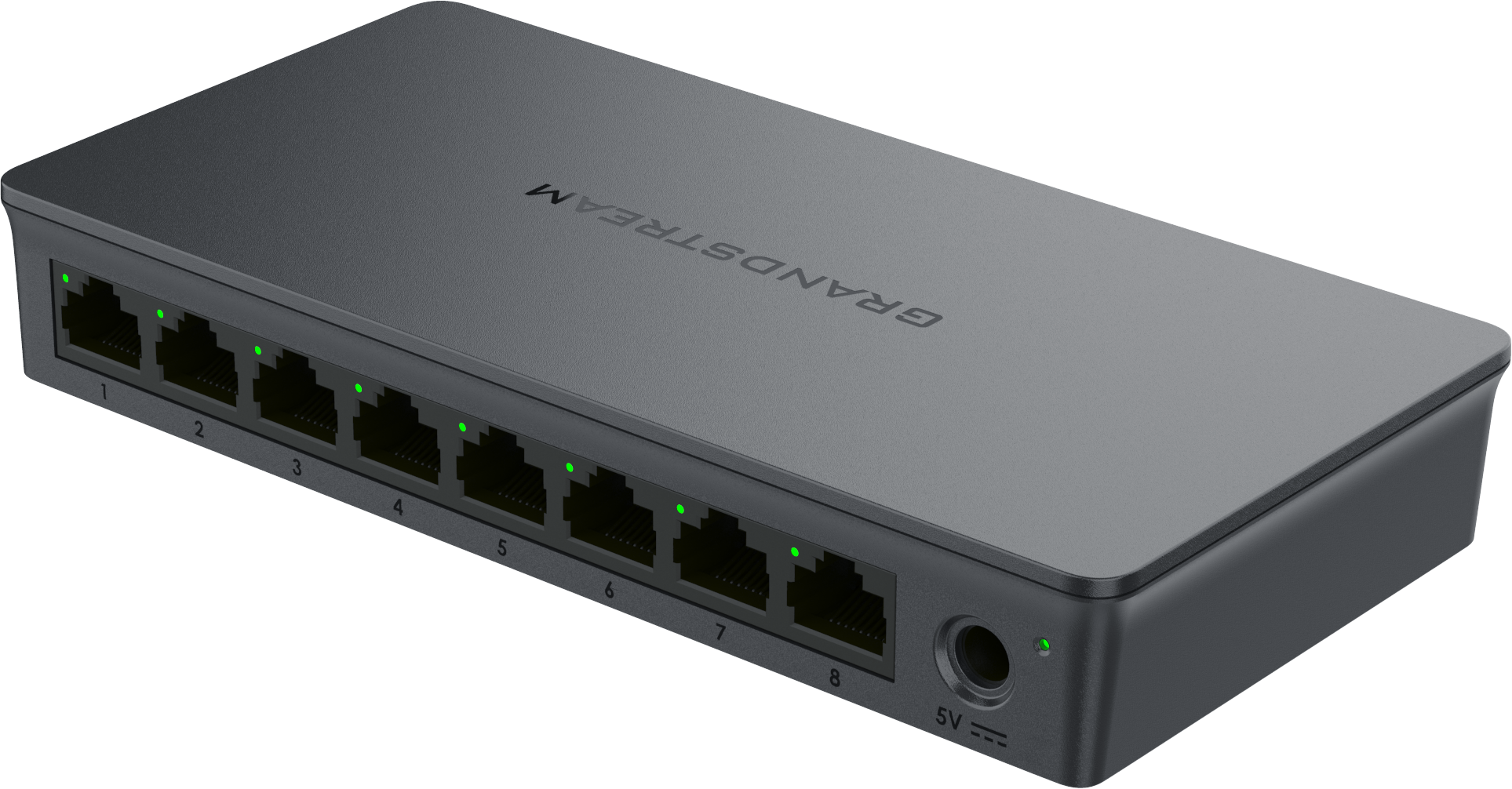

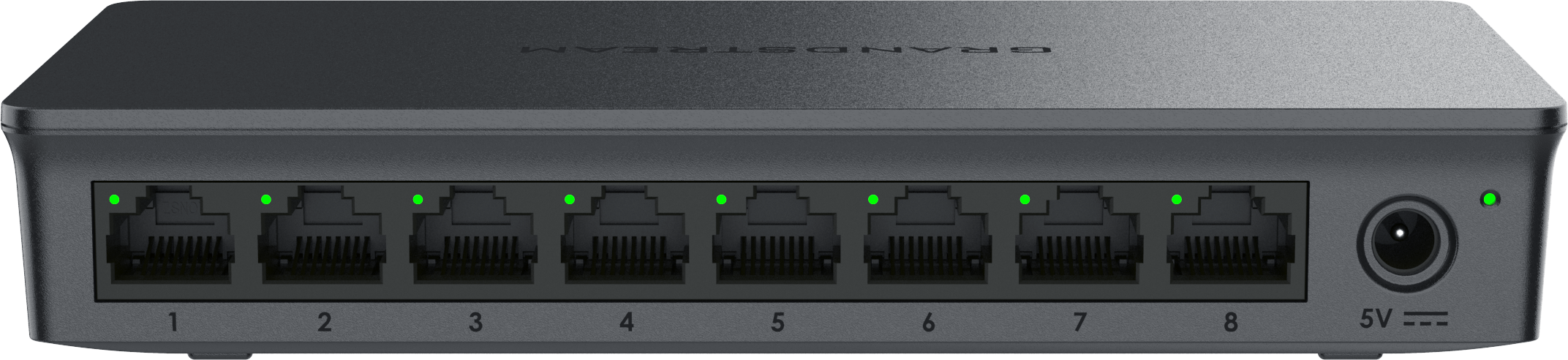

Grandstream GWN7701 8-Port Gigabit Unmanaged Desktop Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Effortless, High-Speed Network Expansion
The Grandstream GWN7701 is an unmanaged network switch designed to provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small-to-medium businesses. As a plug-and-play solution, it requires no configuration or installation, making network expansion simple and immediate. Its desktop and wall-mountable design offers flexibility for any workspace.
Intelligent and Efficient Performance
Featuring 8 Gigabit RJ45 ports, the GWN7701 is built for optimal performance. Each port automatically supports auto-negotiation to recognize the link speed of any 10/100/1000Mbps network device, intelligently adjusting for perfect compatibility and speed. The inclusion of Auto MDI/MDIX eliminates the need for crossover cables, further simplifying setup. With a robust 16Gbps switching capacity, this switch can handle significant traffic without bottlenecks, ensuring smooth data flow across your network.
Advanced Features for a Reliable Network
Despite being an unmanaged switch, the GWN7701 incorporates advanced features to maintain network stability and quality. It includes Broadcast, Multicast, and Unicast storm control to monitor and manage traffic levels effectively. It also supports 802.1p/DSCP QoS for prioritizing traffic and ensuring that critical data packets are delivered without delay. Furthermore, its green technology design actively reduces power consumption, making it an energy-efficient choice for your business.
Technical Specifications
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Port Features | 8 x 10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| Switching Capacity | 16Gbps |
| MAC Address Table | 8K |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature |
| LED Indicators | Per port: Link/Activity (Green), Per device: Power (Green) |
| Power Adapter | External 5VDC/0.6A |
| Max Power Consumption | 2.7W |
| Enclosure | Plastic |
| Mounting | Desktop/Wall-Mount |
| Dimensions (L x W x H) | 164 x 80 x 30mm |
| Weight | 0.17kg |
| Environmental | Operating Temperature: 0°C to 40°C; Storage Temperature: -40°C to 60°C; Operating Humidity: 10% to 90% Non-condensing |
| Compliance | FCC, CE, RCM, IC, UKCA |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
