Grandstream

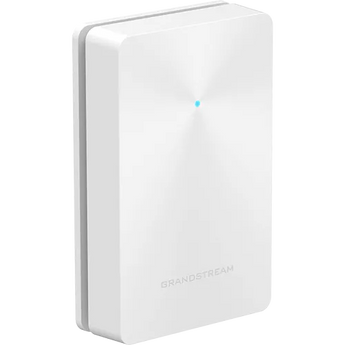

Grandstream GWN7624 AC1750 Wave 2 Wi-Fi 5 In-Wall Access Point
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance, In-Wall Wi-Fi for Demanding Environments
The Grandstream GWN7624 is a high-performance 802.11ac Wave-2 in-wall Wi-Fi access point, expertly designed for small-to-medium-sized businesses, hotels, offices, and residential complexes. This access point is engineered to provide a discreet and professional installation, blending seamlessly into any environment. It features advanced 4x4:4 MU-MIMO on the 5G band and 2x2:2 MIMO on the 2.4G band, delivering a combined wireless throughput of up to 2.03 Gbps. The GWN7624 is built to support up to 200 concurrent Wi-Fi client devices, making it an ideal solution for medium-density wireless network deployments.
Versatile Connectivity and Power Options
Beyond its powerful wireless capabilities, the GWN7624 offers exceptional wired connectivity with four Gigabit Ethernet ports. One of these is a dedicated uplink port with support for PoE/PoE+ to power the device. Additionally, two of the downstream ports feature Power over Ethernet (PSE), capable of providing power to other devices like IP phones, cameras, or other network endpoints. This self-power adaptation upon auto-detection of PoE or PoE+ simplifies installation and reduces cable clutter.
Centralized Management and Robust Security
Management of the GWN7624 is flexible and straightforward. It features an embedded controller that can manage up to 30 local GWN series access points. For larger deployments, it is also supported by GWN.Cloud, Grandstream's free cloud Wi-Fi management platform, and GWN Manager for on-premise software control. Security is paramount, and the GWN7624 addresses this with anti-hacking secure boot, critical data/control lockdown via digital signatures, a unique security certificate, and a random default password per device.
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac (Wave-2) |
| Antennas | 2 dual-band internal antennas, 2 5G internal antennas 2.4GHz, gain 3dBi 5GHz, gain 5dBi |
| Wi-Fi Data Rates | 5G: IEEE 802.11ac: 6.5 Mbps to 1733 Mbps; IEEE 802.11n: 6.5 Mbps to 600 Mbps; IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11n: 6.5 Mbps to 300 Mbps; IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; IEEE 802.11b: 1, 2, 5.5, 11 Mbps |
| Frequency Bands | 2.4GHz radio: 2412 – 2484 MHz 5GHz radio: 5180 – 5825 MHz |
| Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20, 40 and 80 MHz |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MIMO | 2x2:2 2.4GHz (MIMO), 4x4:4 5GHz (MU-MIMO) |
| Coverage Range | Up to 175 meters |
| Maximum TX Power | 2.4G: 24 dBm 5G: 22 dBm |
| SSIDs | 16 total, 8 per radio (2.4GHz and 5GHz) |
| Concurrent Clients | Up to 200 |
| Network Interfaces | 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet ports with PSE 1x 10/100/1000M Ethernet port |
| Auxiliary Ports | 1x Reset Pinhole |
| Mounting | In-Wall Mountable |
| LEDs | 1 tri-color LED for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 30 local GWN APs GWN.Cloud offers unlimited AP management GWN Manager offers premise-based software controller |
| Power and Green Energy Efficiency | Support 802.3az; PoE 802.3af/802.3at; PSE Maximum Output Per Port: 6W; Maximum Power Consumption: 25W |
| Environmental | Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
| Physical | Unit Dimensions: 135 x 86 x 38.5mm; Unit Weight: 206g Entire Package Dimensions: 173.5 x 113.5 x 50mm; Entire Package Weight: 301.5g |
| Package Contents | GWN7624 In-Wall Wireless AP, 4 Screws, Quick Start Guide |
| Compliance | FCC, CE, RCM, IC |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
