HDCVT
HDCVT HDMI1.4 70m Extender with IR
Pickup available at NexGen Computing
Usually ready in 24 hours

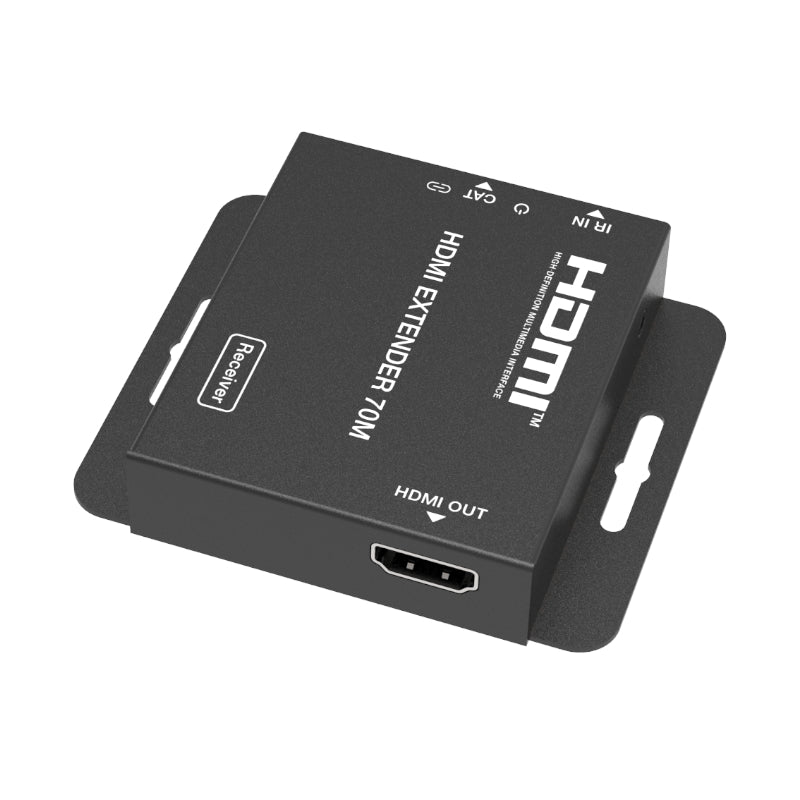

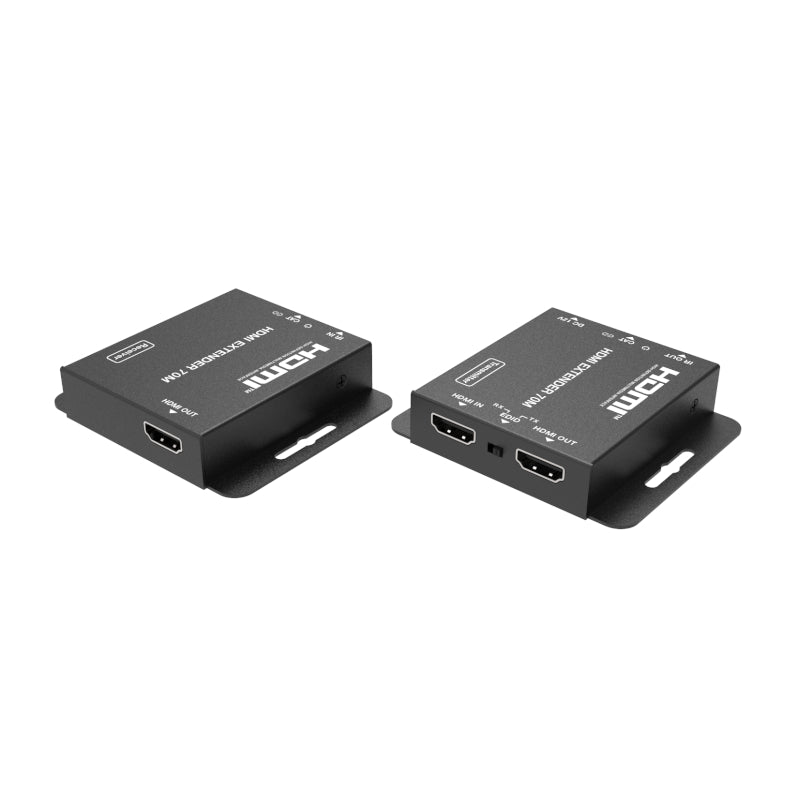

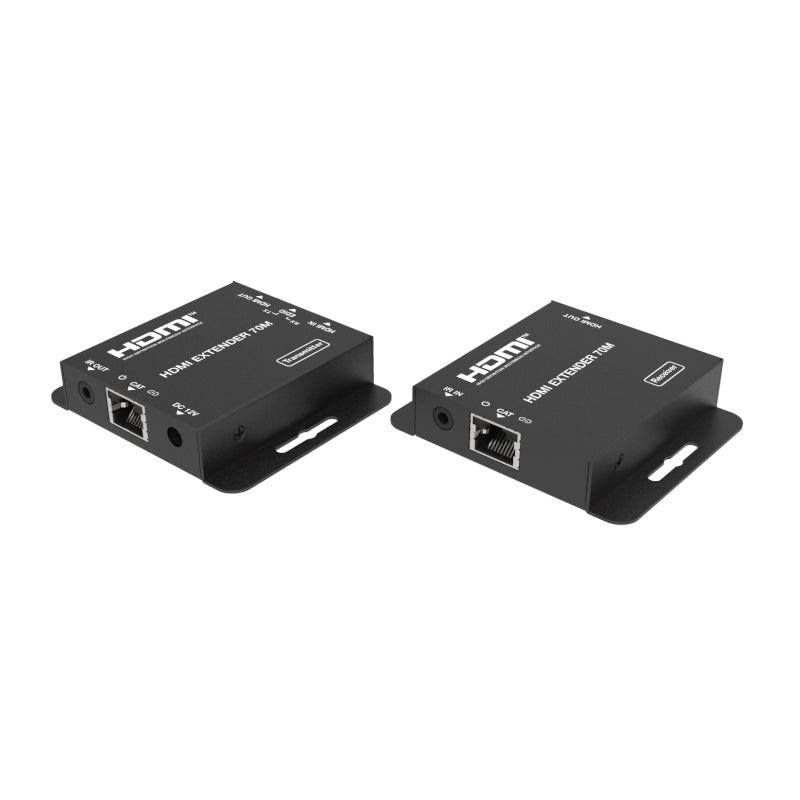

The HDCVT HDMI Extender with IR Control can extend your high definition video/audio signal and IR control signal up to 70m for 1080p resolution, and up to 40m for 4K30 resolution via a single CAT6 cable. The high-quality construction allows you to achieve zero delays, as well as uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can also be cascaded to the next extender, supporting resolutions of up to 4K @ 30Hz. For additional versatility, it supports the EDID copy function as well (you can choose local or remote EDID). To top it all off it also supports high-quality audio formats like PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching or with large-screen displays.
FEATURES:
| HDMI 1.4, HDCP 1.4 and DVI 1.0 Compliant | |
| Support Video Resolution up to 4K2K@30Hz YUV 4 | 4:4 |
| CAT6 | 230ft/70m for 1080p, 131ft/40m for 4K30 |
| CAT5E | 197ft/60m for 1080p, 115ft/35m for 4K30 |
| Support Copying EDID from Receiver Display or Loop Out Display | |
| Allow for Cascading via additional HDMI loop out port | |
| Support one-way POC functionality (from transmitter to receiver) | |
| One-way IR signal transmission | |
SPECIFICATIONS:
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
| Video Resolution | Up to 4K@30Hz |
| Audio Support Up to 7.1CH HD audio | |
| Input TMDS Signal | 3.3 volts |
| Input DDC Signal | 5.0 volts/P-P |
| ESD ProtectionHuman Body model | +/- 8 kV (air-gap discharge)+/- 4 kV (contact discharge) |
| Human Body model | +/- 8 kV (air-gap discharge)+/- 4 kV (contact discharge) |
| +/- 8 kV (air-gap discharge) | |
| +/- 4 kV (contact discharge) | |

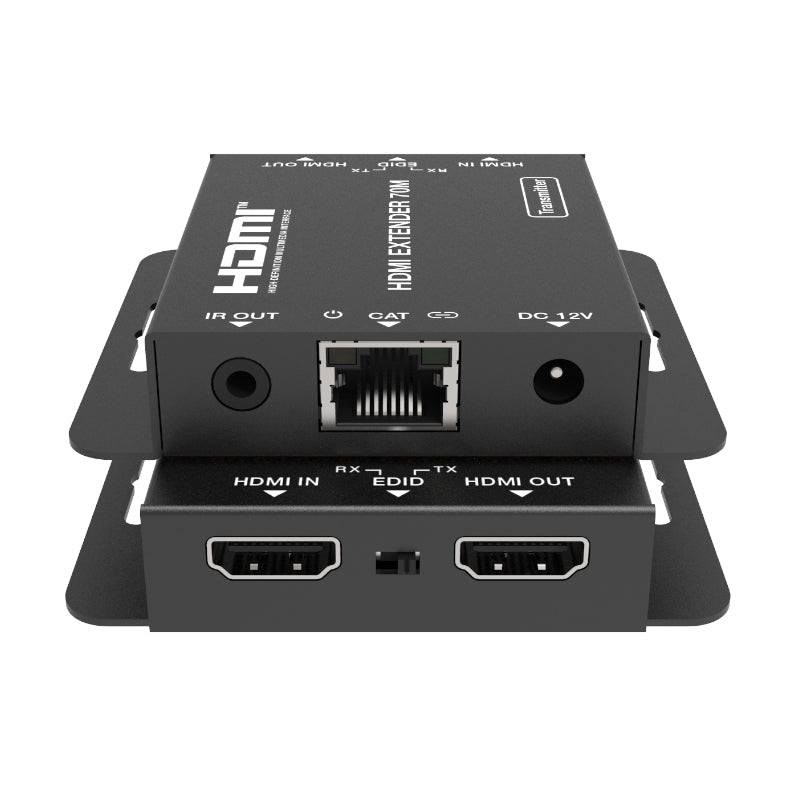

| Transmitter | Input:1 x HDMI Type A [19-pin female]Output:1 x HDMI Type A [19-pin female]1 x IR OUT [3.5mm Stereo Mini-jack]1 x CAT OUT [RJ45, 8-pin female] |
| Input | 1 x HDMI Type A [19-pin female] |
| 1 x HDMI Type A [19-pin female] | |
| Output | 1 x HDMI Type A [19-pin female]1 x IR OUT [3.5mm Stereo Mini-jack]1 x CAT OUT [RJ45, 8-pin female] |
| 1 x HDMI Type A [19-pin female] | |
| 1 x IR OUT [3.5mm Stereo Mini-jack] | |
| 1 x CAT OUT [RJ45, 8-pin female] | |

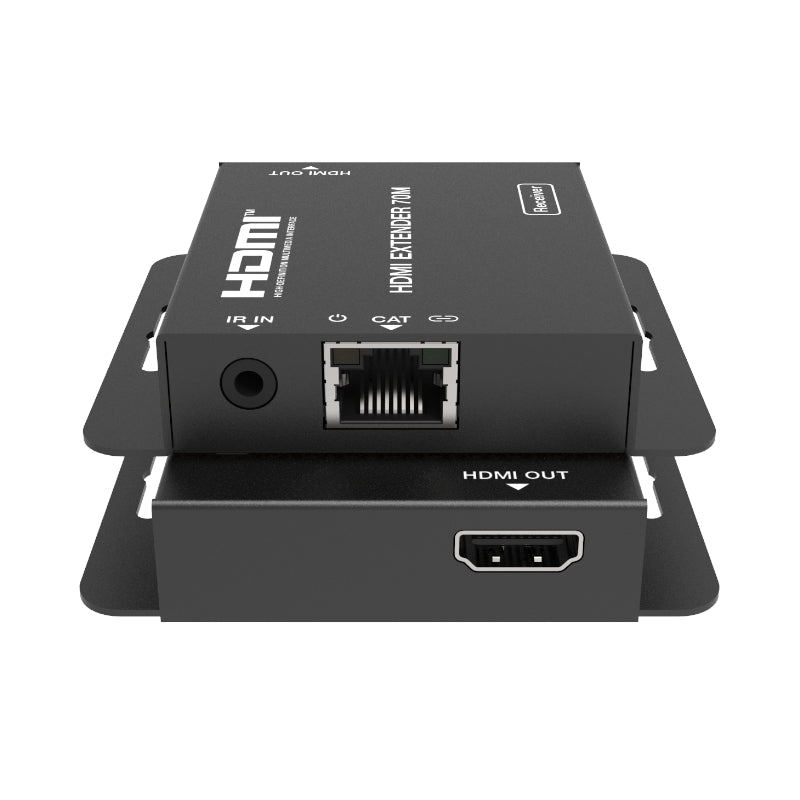

| Receiver | Inputs:1x IR IN [3.5mm Stereo Mini-jack]1x CAT IN [RJ45, 8-pin female]Output:1x HDMI Type A [19-pin female] |
| Inputs | 1x IR IN [3.5mm Stereo Mini-jack]1x CAT IN [RJ45, 8-pin female] |
| 1x IR IN [3.5mm Stereo Mini-jack] | |
| 1x CAT IN [RJ45, 8-pin female] | |
| Output | 1x HDMI Type A [19-pin female] |
| 1x HDMI Type A [19-pin female] | |
| Housing | Metal Enclosure |
| Colour | Black |
| Power Supply 12V/1A DC | |
| Power ConsumptionTransmitter | 1.86WReceiver: 0.87W |
| Transmitter | 1.86W |
| Receiver | 0.87W |
| Product Dimensions | 7.9 x 6.9 x 1.7 cm |
| Weight | Transmitter: 132gReceiver: 130g |
| Transmitter | 132g |
| Receiver | 130g |
WHAT'S IN THE BOX:
- HDCVT HDMI 70M Extender Receiver x1
- HDCVT HDMI 70M Extender Transmitter x1
- IR Blaster Cable x1
- IR Receiver Cable x1
- 12V/1A DC Power Adapter x1
- User Manual x1
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
