Dual Monitor Gas Spring Mount (Up to 32")
Integrated USB-C Multi-Port Dock Base
Dual Display Outputs / USB Hub & PD
VESA 75x75 & 100x100 / Cable Management

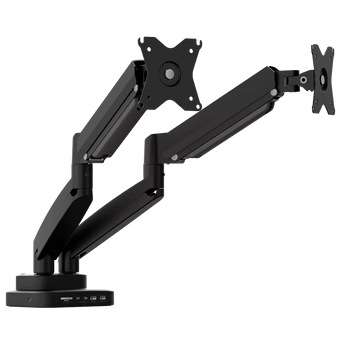

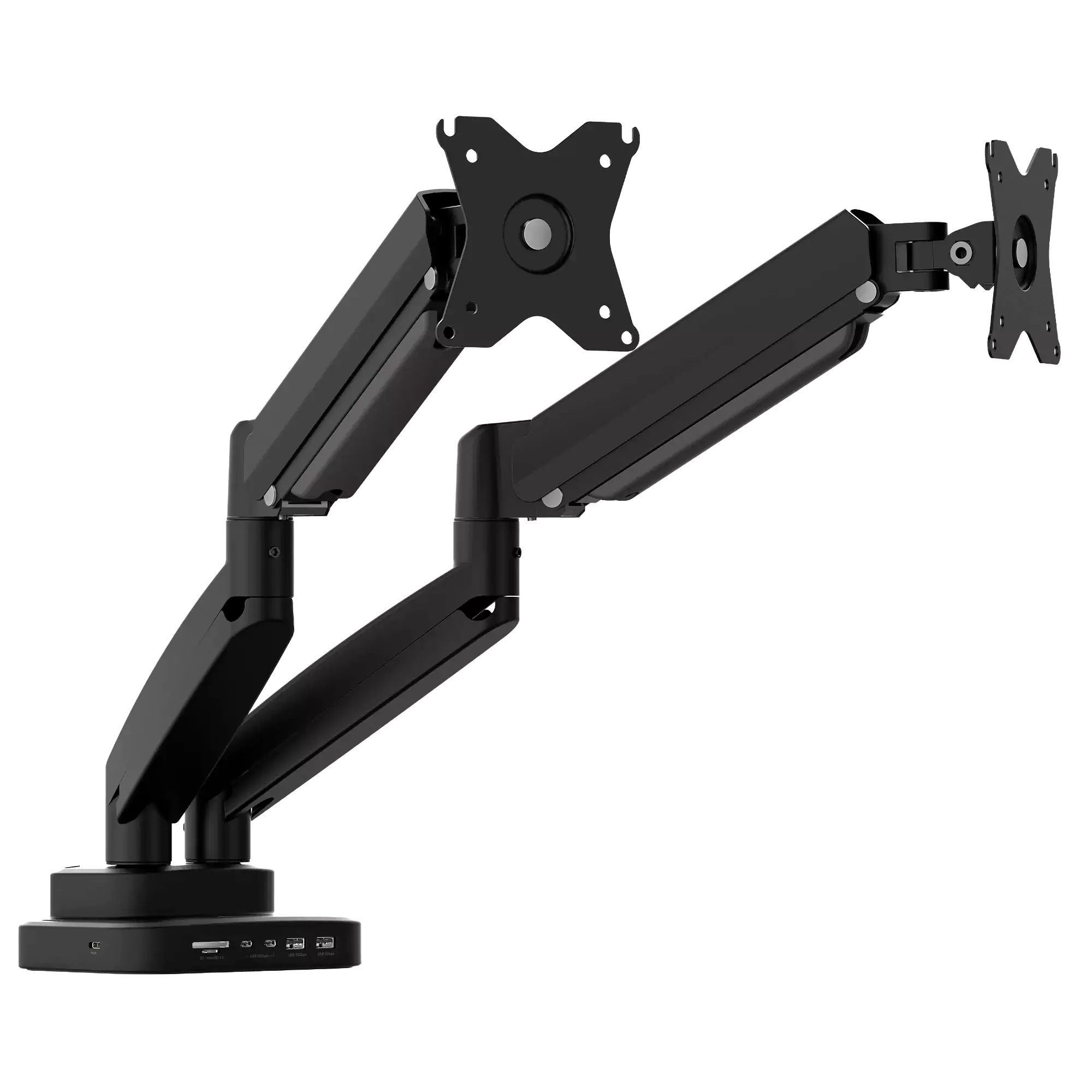

J5Create - JTSA302 Ergonomic Dual-Monitor Mount with Docking Station
Estimated delivery
Includes R 0 already in your cart
The JTSA302 is a gas spring monitor mount. Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI, Gigabit Ethernet, 1 x USB Type-A 10Gbps, 1 x USB Type-A 5Gbps 2 x USB-C 10Gbps, SD /microSD 4.0, and up to 100W PD pass through charging. The arm can hold max two 32" screens weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180����, tilt -45���� to +90���� and rotate 360����. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
Key Features
- Fully adjustable gas spring dual monitor mount with 10-in-1 dock
- Easily adjusts monitor to any height and allows the screen to swivel 180����, tilt -45���� to +90���� and rotate 360���� Conveniently set your monitor at an optimal angle
- Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI , Gigabit Ethernet, 1 x USB Type-A 10Gbps, 1 x USB Type-A 5Gbps, 2 x USB-C 10Gbps, SD /microSD 4.0, and up to 100W PD pass through charging
Specifications
- Additional Storage: No
-
Adjustable Angle: Screen Tilt: -45° to +90°
Arm Swivel: -180° to +180°
Screen Swivel: -90° to +90°
Screen Rotation: 360° - Assembly Required: Yes
- Audio Channel: 2.1 via HDMI
- Audio Supported: Yes
- Brand: J5Create
- Clamp Base: Yes (10-50mm)
- Color: Black
- Dimensions: 465mm x 320mm x 180mm
- Displays Supported: 2
- Grommet Base: Yes (10-50mm)
- Host Connector: 1x USB-C Female
- Max Refresh Rate: 4K @ 60 Hz
- Max Resolution: 3840 x 2160
- Maximum Weight: 8 kg
- Model: JTSA302
- Network Interface: Yes
-
Ports: 2x 4K60 HDMI (MST Dual 4K60)
2x USB-C 10 Gbps
1x USB Type-A 5Gbps
1x USB Type-A 10Gbps
1x 100W PD Pass Through Charging
1x SD / MicroSD 4.0
1x Gigabit Ethernet - Power Source: Bus-powered or self-powered
- Product Weight: 4 kg
- Stand Material: Aluminum / Steel / Plastic
-
VESA Pattern: 75x75mm
100x100mm - Video Output: 2x HDMI Female
- Warranty: 2 Years
- Wide Screen Support: Yes
Specifications
| Brand | j5create |
| Model | JTSA302 |
| Additional storage | No |
| Adjustable angle | Screen Tilt: -45° to +90° Arm Swivel: -180° to +180° Screen Swivel: -90° to +90 Screen Rotation: 360° |
| Assembly required | Yes |
| Audio supported | Yes |
| C-Clamp Base | Yes (10~50mm) |
| C - clamp base | Yes (10~50mm) |
| Docking station included | Yes |
| Grommet mounting Base | Yes (10~50mm) |
| Host connector | 1 - USB-C® Female |
| Maximum weight capacity | 17.6 lbs. (8 kg) |
| Network interface | Yes |
| Ports | 2- 4K60 HDMI™ (MST Dual 4K60) ; 2 - USB-C® 10 Gbps ; 1 - USB™ Type-A 5Gbps ; 1 - USB™ Type-A 10Gbps ; 1 - 100W PD pass through charging ; 1 - SD™ / microSD™ 4.0 ; 1 - Gigabit Ethernet |
| Power source | Bus-powered or self-powered |
| Vesa pattern | 75x75mm/100x100mm |
| VESA® Pattern | 75x75mm/100x100mm |
| Video output | 2 - HDMIâ„¢ Female |
| Warranty | 2 Year Limited |
| Audio channel | 2.1 via HDMIâ„¢ |
| Displays supported | 2 |
| Max display refresh rate | 4K @ 60 Hz |
| Max display resolution | 3840 x 2160 |
| Wide screen supported | Yes |
| Input current | Up to 5A |
| Input voltage | Up to 20V |
| Output current | Up to 4.25A |
| Output voltage | Up to 20V |
| Power consumption | ≤ 900 mA |
| Power delivery | Up to 100W |
| Color | Black |
| Operating humidity | < 85% non-condensing |
| Operating temperature | 30 to 116°F (0 to 30°C) |
| Product depth | 465 mm / 18.3 in |
| Product height | 320 mm / 12.6 in |
| Product weight | ≈ 8.82 lbs. (4 kg) |
| Product width | 180 mm / 7.08 in |
| Stand material | Aluminum/Steel/Plastic |
| Storage humidity | < 85% non-condensing |
| Storage temperature | 0 to 155°F (-10 to 65°C) |
What's in the Box
- 1 × JTSA302 Ergonomic Dual-Monitor Mount with Docking Station
- 1 × USB-C® 10Gbps male to male host cable (100 cm / 3.3 ft)
- 1 × Installation tools & accessories
- 1 × Quick Installation Guide (QIG)
