LigoWave

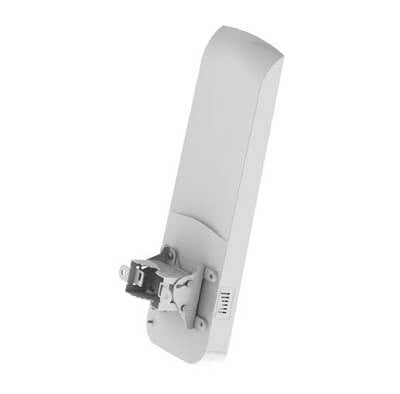

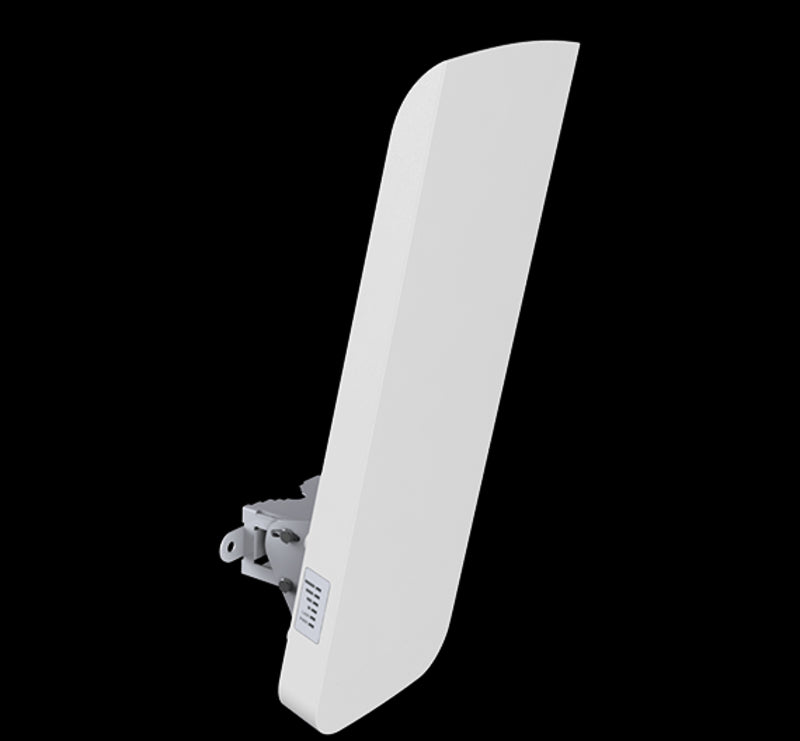

LigoWave DLB 2.4Ghz Base Station with 90 Degree Sector Antenna
Pickup available at NexGen Computing
Usually ready in 24 hours
Engineered for Superior Performance and Reliability in 2.4GHz Wireless Networks
Experience unparalleled performance and stability with the LigoWave DLB 2-90, a premier base station for the 2.4 GHz class. This unit masterfully combines a robust, state-of-the-art 802.11n radio core, featuring MIMO 2x2 technology, with a high-gain, dual-polarized 90-degree sector antenna. The result is a powerful, all-in-one solution designed to facilitate the rapid and effective creation of high-throughput, stable wireless networks. Ideal for Point-to-Multi-Point (PTMP) deployments, it ensures reliable communication for up to 64 client devices, even in congested wireless environments, thanks to the smart dynamic polling protocol, iPoll.
Robust, All-Weather Construction
Built to endure the harshest conditions, the DLB 2-90 features a durable polycarbonate plastic enclosure with UV inhibitors. This rugged design is tested to meet IP-65 standards for protection against dust and water, ensuring years of reliable outdoor operation without cracking or degradation from direct sunlight. It is also equipped with a grounding lug and a grounded 24-volt PoE for professional installation, offering resistance to electrical surges.
Advanced and User-Friendly OS
The device is powered by the LigoWave OS, a reliable, advanced, and feature-rich operating system. It boasts a responsive HTML5-based graphical user interface for easy setup and management. Key software features include dual-firmware image support for safe, failsafe remote upgrades. Should a power failure interrupt an upgrade, the device will simply restart with the previous firmware, ensuring network uptime and reliability.
Key Features at a Glance:
- High-performance 170 Mbps capacity.
- Powerful 31 dBm transmit power for extended range.
- Integrated 16 dBi dual-polarized 90° sector antenna.
- Advanced MIMO 2x2 radio core.
- iPoll 2/3 smart polling data protocol for enhanced performance.
- IP-65 rated weatherproof enclosure.
- Flexible wall or pole mounting with 30-degree down-tilt adjustment.
Technical Specifications
| WLAN Standard | IEEE 802.11 b/g/n, iPoll (proprietary) |
| Radio Mode | MIMO 2x2 |
| Radio Frequency Band | 2.402 - 2.492 GHz (FCC 2.412 - 2.462 GHz) |
| Transmit Power | Up to 31 dBm (country dependent) |
| Channel Size | 5, 10, 20, 40 MHz |
| Data Rates | 170 Mbps (40MHz channel) |
| Antenna Type | Integrated dual-polarized 90° sector antenna |
| Antenna Gain | 16 dBi |
| Azimuth Beamwidth (H pol) | 100 deg |
| Elevation Beamwidth | 30 deg |
| Power Supply | 24V Passive PoE (adapter included) |
| Enclosure | IP-65 rated, Polycarbonate with UV inhibitor |
| Operating Temperature | -40°C (-40 F) to +65°C (+149 F) |
| Management | SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap |
| Certifications | FCC/IC/CE |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
