LigoWave

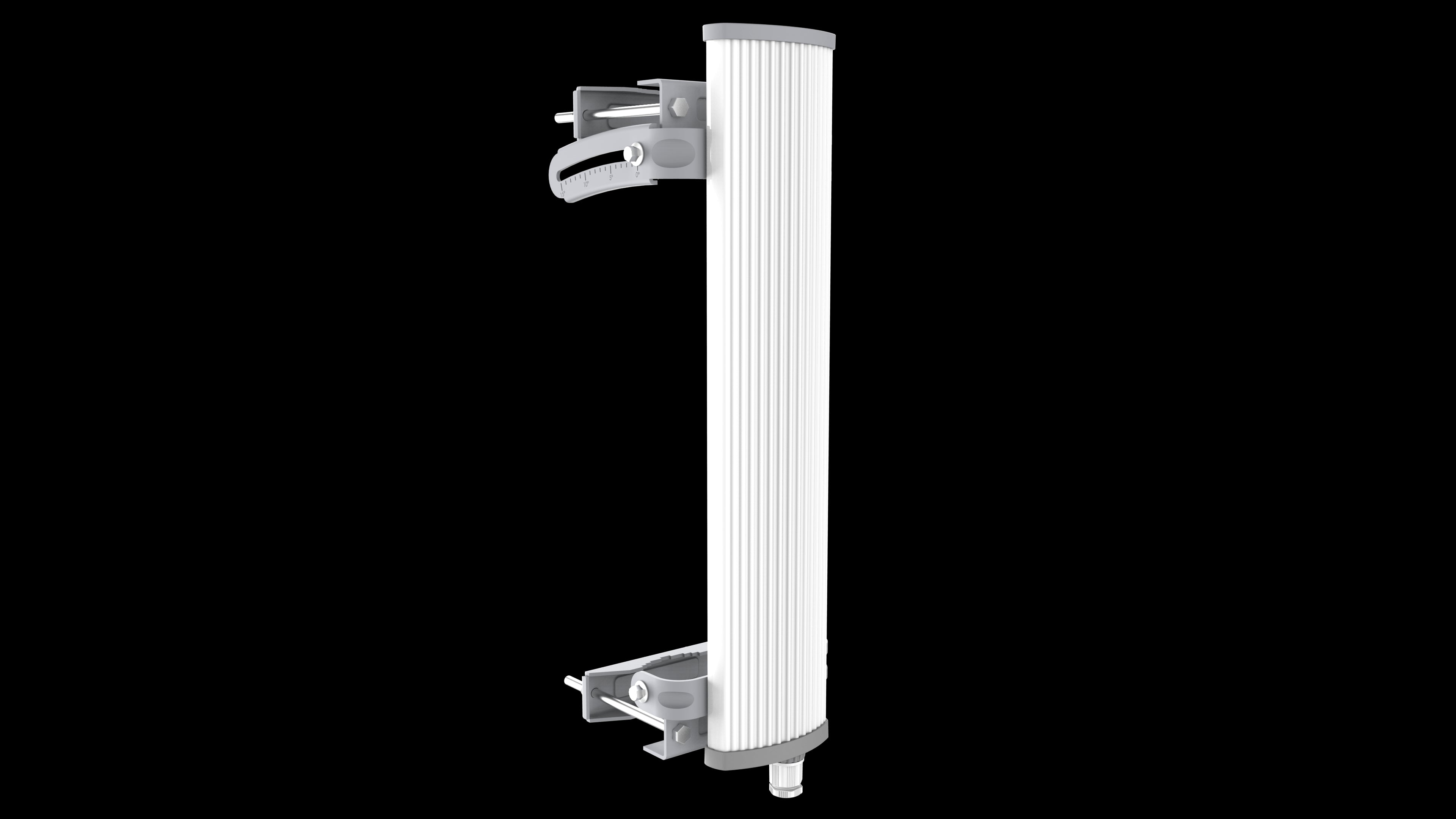

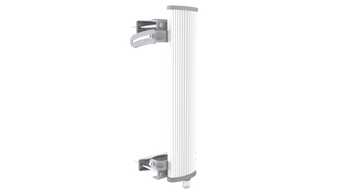

LigoWave DLB 5Ghz 17dBi PRO Base Station with 90 Degree Sector Antenna
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance 5GHz Point-to-Multipoint (PtMP) Access Point
Experience robust and reliable wireless connectivity with the LigoWave DLB 5 PRO, a high-performance base station designed for demanding Point-to-Multipoint installations. Powered by a dedicated 720 MHz CPU and 128MB of RAM, this access point delivers consistent throughput for a high number of connected clients. Its integrated 17 dBi dual-polarized 90-degree sector antenna ensures wide and targeted coverage, making it an ideal solution for service providers and enterprise networks.
Engineered for Durability and Performance
The LigoWave DLB 5 PRO is built to withstand the harshest environments. Its IP67-rated metal enclosure provides superior protection against dust and water ingress, ensuring longevity and reliability in any climate zone. This rugged housing also enhances RF performance by acting as a heatsink and providing improved noise immunity, which is critical when co-locating multiple base stations on a single tower. The all-in-one design, with the radio directly connected to the antenna, minimizes signal loss and reduces the risk of cable failures.
Advanced Technology for Stable Networks

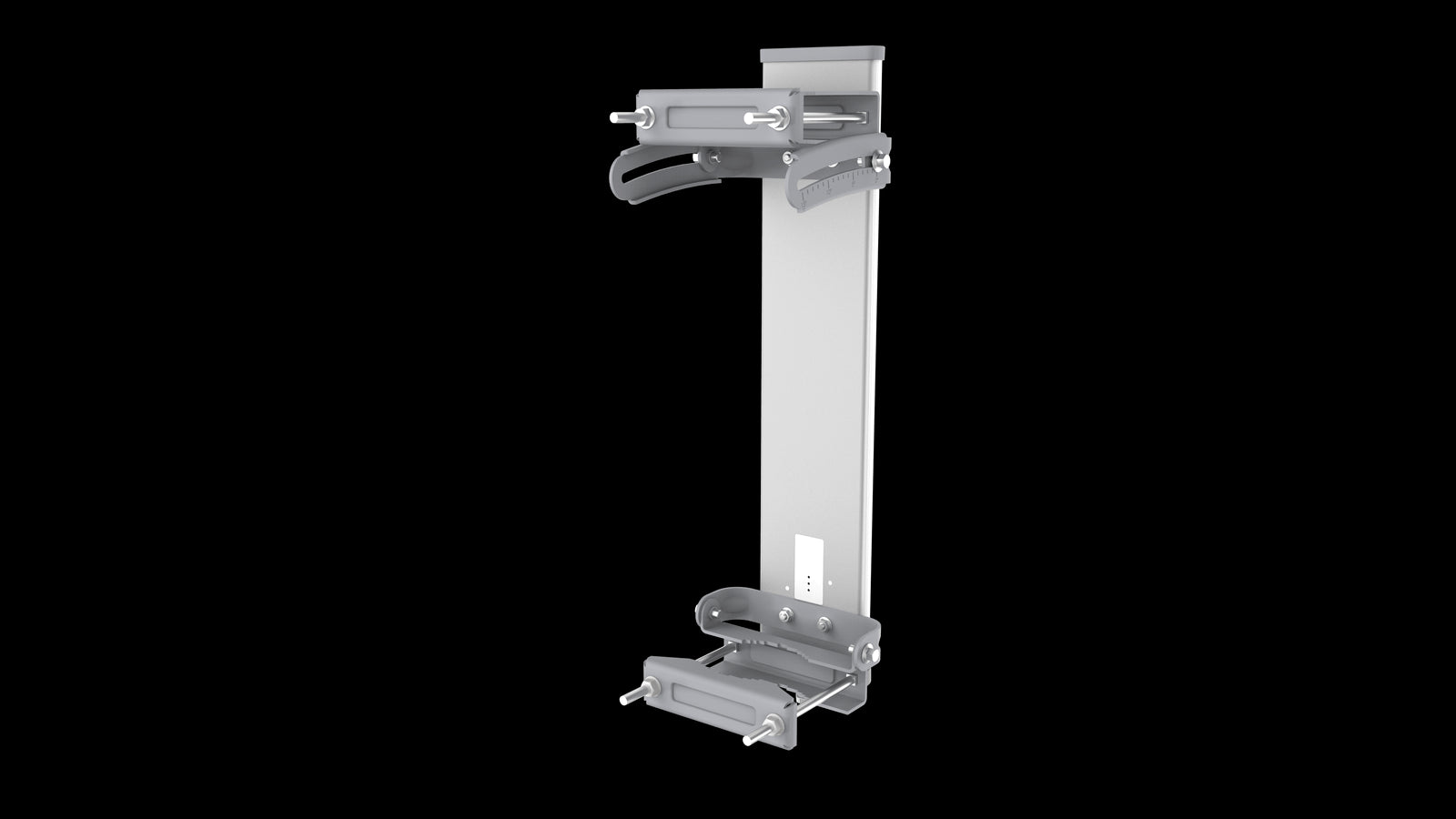

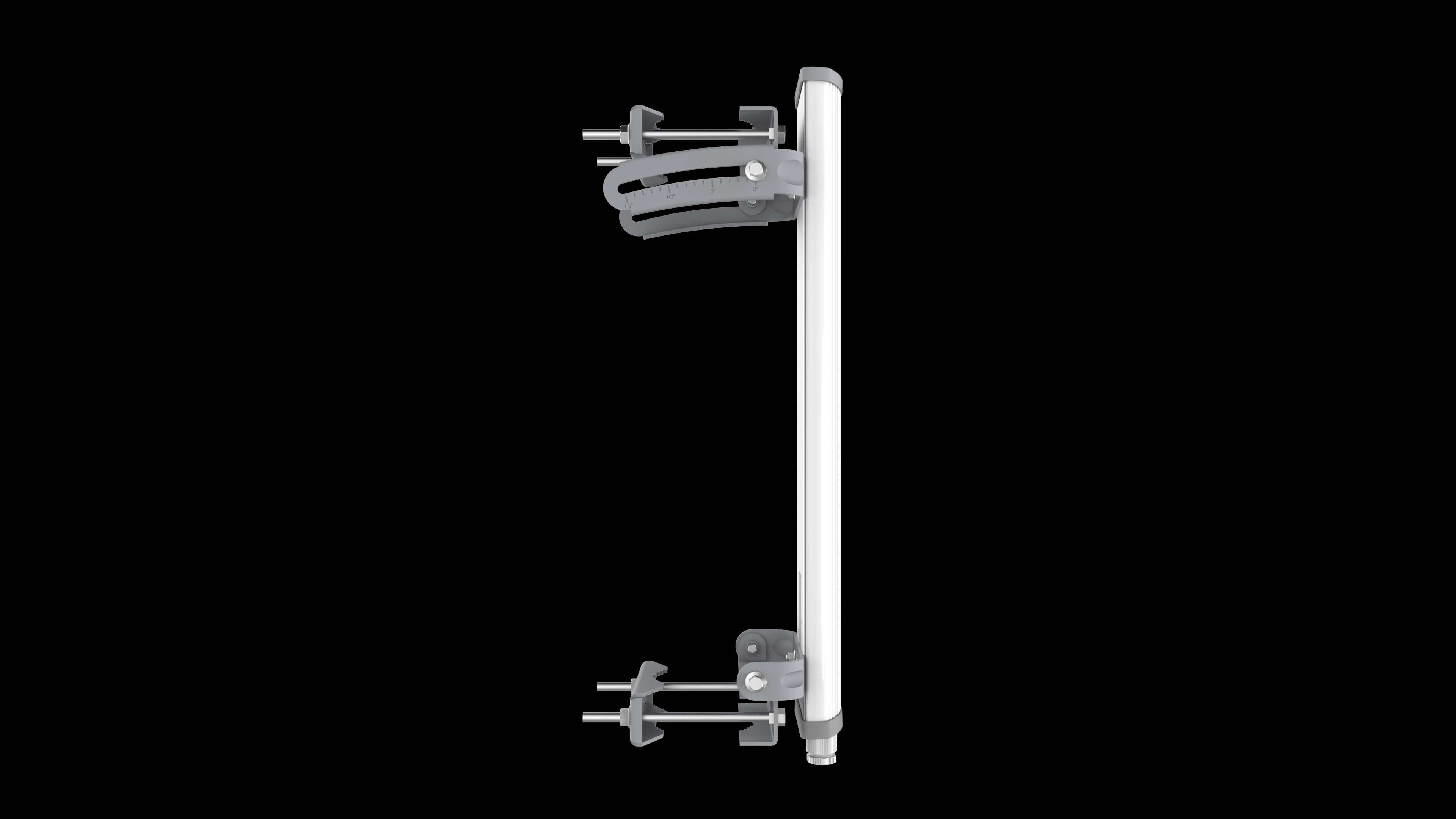

Leveraging LigoWave's proprietary iPoll 3 protocol, the DLB 5 PRO optimizes data transmission for stable, high-capacity point-to-multipoint networks. This advanced polling technology eliminates mediated access contention and provides consistent performance as the network grows. The Gigabit Ethernet port allows you to harness the full capacity of the base station, preventing bottlenecks in your wired backhaul. Installation is streamlined with an included professional pole mounting bracket that allows for a 15° down-tilt for precise alignment.
Technical Specifications
| Wireless | |
| WLAN Standard | IEEE 802.11a/b/g/n, iPoll 3 |
| Radio Mode | MIMO 2x2 |
| Radio Frequency Band | 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz) |
| Transmit Power | Up to 30 dBm (country dependent) |
| Channel Size | 5, 10, 20, 40 MHz |
| Antenna | |
| Type | Integrated dual-polarized 90-degree sector antenna |
| Gain | 17 dBi |
| Wired | |
| Interface | 10/100/1000 Base-T, RJ45 (802.3af) |
| System | |
| CPU | QCA 9557 @ 720 MHz |
| Memory | 128 MB RAM / Flash |
| Physical | |
| Dimensions | 574 x 114 x 46 mm (22.6 x 4.5 x 1.8 in) |
| Weight | 3000 g (6.6 lbs) |
| Mounting | Pole mount included |
| Power | |
| Power Supply | 37 - 56 VDC PoE 802.3af (AC to DC adapter included) |
| Power Source | 100 – 240 VAC |
| Max Power Consumption | 10 W |
| Environmental | |
| Operating Temperature | -40°C to +65°C (-40°F to +149°F) |
| Enclosure Rating | IP67 |
| Management | |
| System Monitoring | SNMP v3, Syslog, Web UI, WNMS |
| Regulatory | |
| Certification | FCC/IC/CE |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
