LigoWave

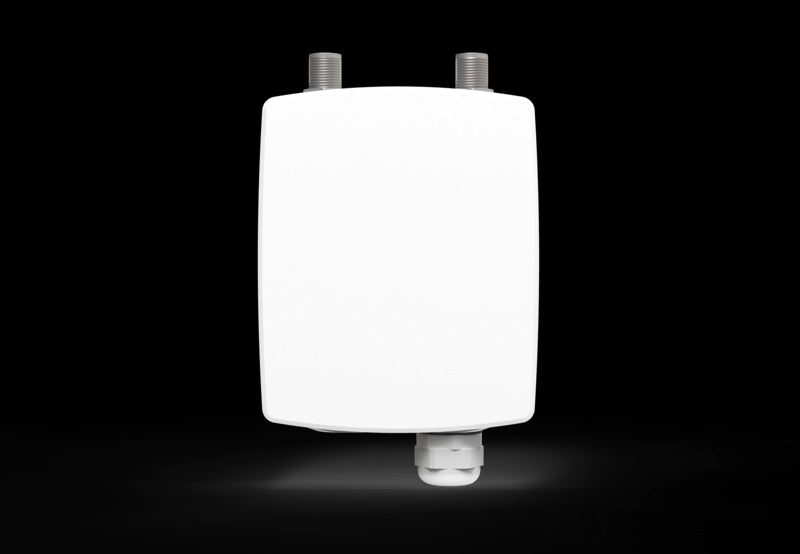

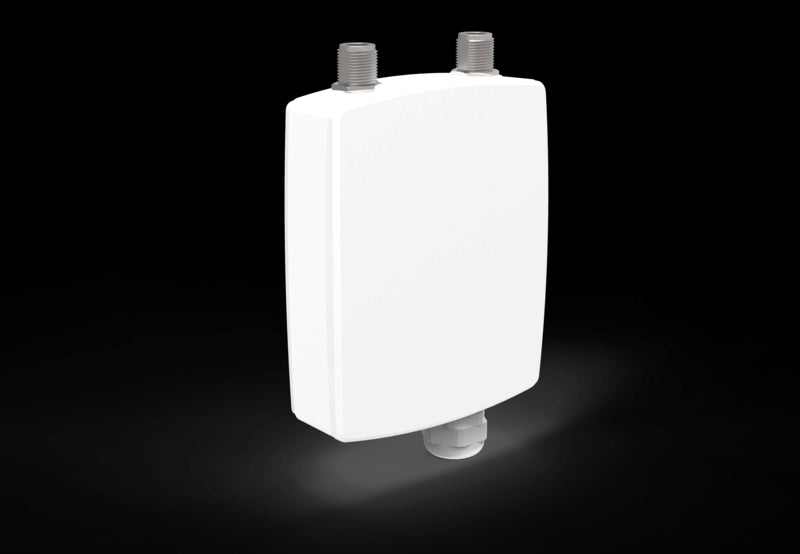

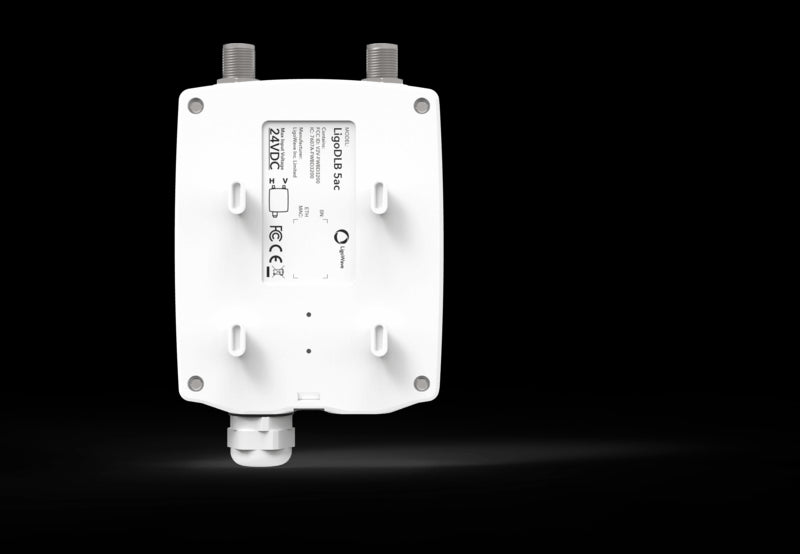

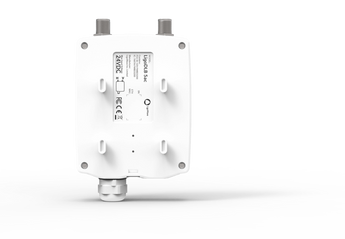

LigoWave DLB 5Ghz Connectorised Radio
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash High-Performance, Long-Range Wireless Connectivity
Experience robust and reliable wireless networking with the LigoWave DLB 5GHz Connectorized Radio. Engineered for performance, this device is an ideal solution for creating powerful Point-to-Point (PTP) or Point-to-MultiPoint (PTMP) links. Its high-power 29 dBm radio and external N-type connectors provide the ultimate flexibility, allowing you to pair it with the perfect antenna for your specific application, ensuring optimal range and performance. Built to withstand the elements, the IP67-rated weatherproof design ensures uninterrupted operation in even the harshest conditions.
Advanced Technology for Demanding Networks
Powered by a new generation CPU, the LigoDLB 5 delivers a real data throughput of up to 170 Mbps and a remarkable packet processing rate of 80,000 PPS. This makes it perfectly suited for capacity-demanding applications like video surveillance backhaul and high-speed data distribution. The device operates on the powerful LigoWave OS, which incorporates iPoll 3, a smart polling data transmission protocol. This proprietary technology minimizes latency and ensures stable, consistent performance by eliminating collisions and enabling smart, prioritized data transmission.
Robust, Secure, and Easy to Manage
The LigoDLB 5 is designed for security and ease of use. It supports robust WPA/WPA2 encryption to keep your network secure. Management is streamlined through a responsive HTML5-based GUI, and it can be integrated into LigoWave's free Wireless Network Management System (WNMS) for comprehensive monitoring and control of multiple devices. With integrated surge protection and a versatile wall/pole mounting system, deployment is both safe and straightforward.
Comprehensive Specifications
| Wireless | |
|---|---|
| WLAN Standard | IEEE 802.11a/n, iPoll 3 |
| Radio Mode | MIMO 2x2 |
| Operating Frequency Band | 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz) |
| Transmit Power | Up to 29 dBm |
| Channel Size | 5, 10, 20, 40 MHz |
| Data Rates | 170 Mbps |
| Antenna | |
| Type | 2 x N-type connectors (female) |
| Wired Interface | |
| Interface | 10/100/1000 Base-T, RJ45 |
| Physical | |
| Dimensions | 150 x 115 x 55 mm (5.9 x 4.5 x 2.1 in) |
| Weight | 450 g (16.2 oz) |
| Mounting | Combination wall/pole mounting bracket included |
| Power | |
| Power Supply | 24 VDC Passive PoE (AC to 24 VDC adapter included) |
| Power Source | 100 – 240 VAC |
| Max Power Consumption | 10 W |
| Environmental | |
| Operating Temperature | -40°C to +65°C (-40°F to +149°F) |
| Humidity | 0 ~ 90% (non-condensing) |
| Weatherproofing | IP67 Rating |
| Software & Management | |
| Network Operating Modes | Bridge, Router IPv4, Router IPv6 |
| Wireless Security | WPA/WPA2 Personal, WPA/WPA2 Enterprise, WACL, User Isolation |
| Management | HTTP(S) GUI, SSH, SNMP, WNMS, Telnet |
| System Monitoring | SNMP, Syslog, Web UI, WNMS |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
