LigoWave

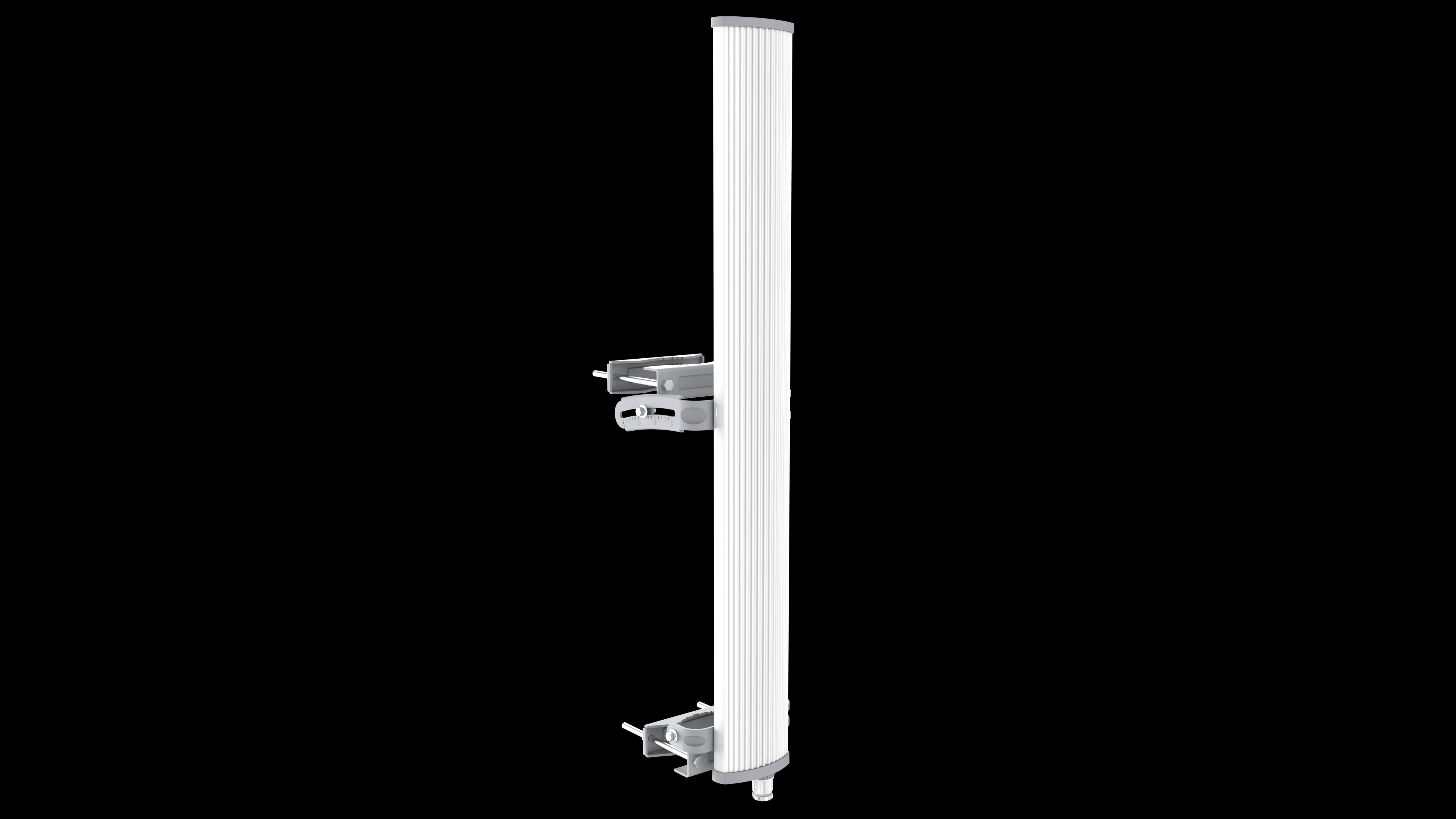

LigoWave DLB 5Ghz PRO Base Station with 90 Degree Sector Antenna
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance 5GHz Connectivity for Demanding Networks
Experience exceptional wireless performance with the LigoWave DLB 5Ghz PRO, a professional-grade base station designed for resource-intensive installations. Delivering over 500+ Mbps of real throughput, this unit combines a powerful 802.11ac MiMo 2x2 radio with a high-gain, dual-polarized 20 dBi 90-degree sector antenna. The all-in-one design minimizes cable losses and saves tower space, ensuring a streamlined and efficient deployment. Ideal for service providers and enterprises, this base station is engineered to deliver reliable, high-capacity connectivity over long distances.
Engineered for Power and Reliability
At its core, the LigoWave DLB PRO features a powerful hardware platform, including a 720 MHz QCA 9557 CPU and 128MB of RAM, capable of handling a high number of clients. Its proprietary iPoll 3 data transmission protocol enhances performance in congested environments, ensuring stable and efficient communication. The robust metal enclosure improves noise immunity by eliminating interference from co-located base stations, while the IP-67 rated housing provides best-in-class protection against harsh weather conditions. A Gigabit Ethernet port with 802.3af PoE support allows you to leverage the full capacity of the radio for maximum performance.
Advanced Features for Professional Installers

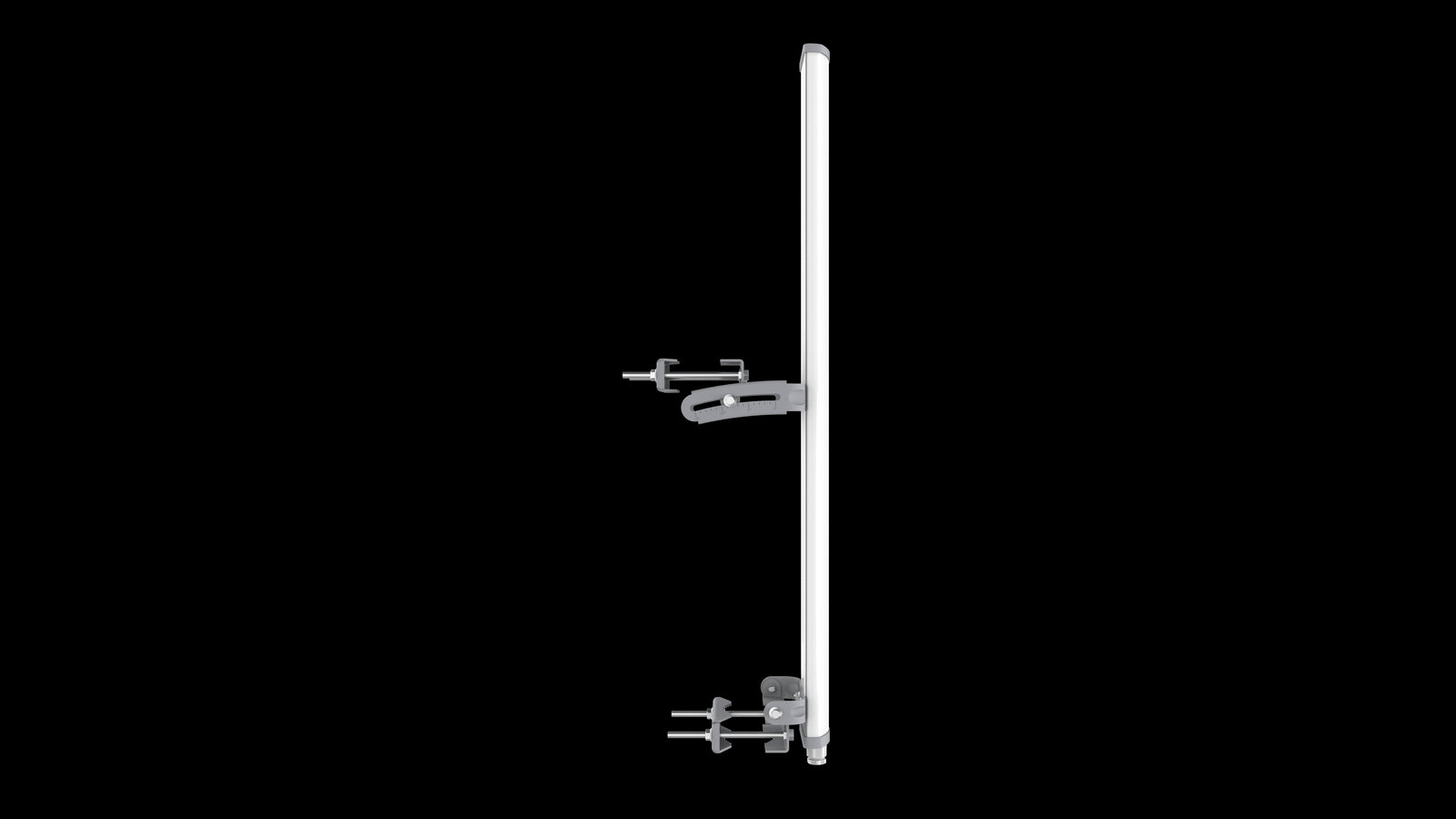

The LigoDLB PRO is designed with the professional in mind. The included solid mounting bracket allows for a 15° down-tilt for precise alignment. The powerful LigoWave OS provides all the essential features for building robust Point-to-Multipoint networks, including flexible traffic shaping, IPv6 support, and device discovery options. Furthermore, this AC series device is backward compatible with older LigoDLB equipment (using iPoll mode), allowing for seamless network upgrades over time.
Technical Specifications
| Wireless | |
|---|---|
| WLAN Standard | IEEE 802.11a/n/ac, iPoll 3 |
| Radio Mode | MIMO 2x2 |
| Radio Frequency Band | 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz) |
| Transmit Power | Up to 30 dBm |
| Channel Size | 5, 10, 20, 40, 80 MHz |
| Modulation Schemes | 802.11ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK) |
| Data Rates | Up to 866 Mbps @ 80MHz |
| Antenna | |
| Type | Integrated dual-polarized 90° sector antenna |
| Gain | 20 dBi |
| Wired | |
| Interface | 1x 10/100/1000 Base-T, RJ45 (802.3af) |
| Hardware | |
| CPU | QCA 9557 @ 720 MHz |
| RAM/Flash | 128MB / 128MB |
| Power | |
| Power Method | 37 – 56VDC PoE 802.3af (AC to DC adapter included) |
| Environmental & Physical | |
| Enclosure Rating | IP-67 |
| Operating Temperature | -40°C (-40 F) to +65°C (+149 F) |
| Mounting | Pole mount included |
| Management | |
| System Monitoring | SNMP v3, Syslog, Web UI, WNMS |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
