LigoWave

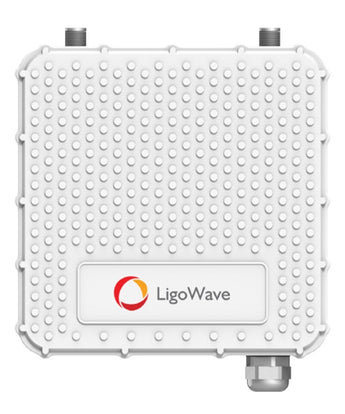

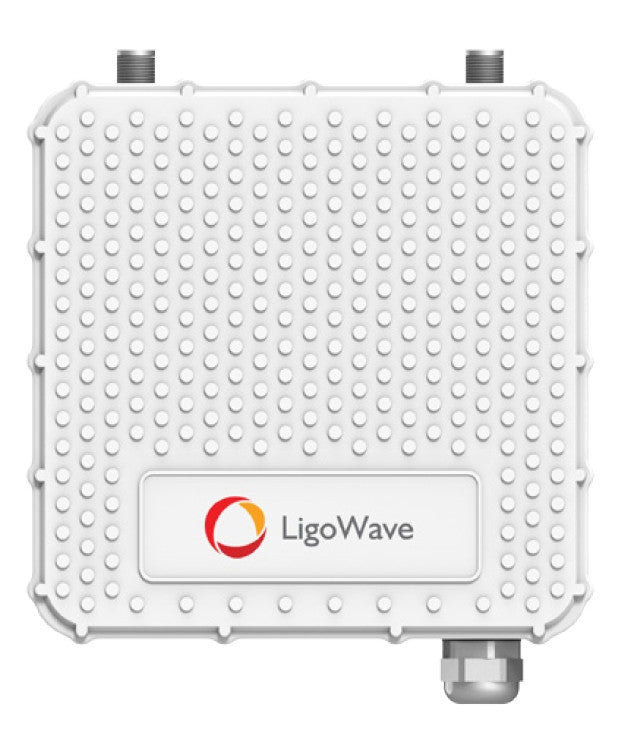

Ligowave PTMP RapidFire 600 Mbps Carrier Subscriber Unit with N-Type connectors.
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Carrier-Grade Performance with the LigoWave RapidFire 600Mbps Subscriber Unit
Experience unparalleled reliability and speed with the LigoWave PTMP RapidFire Subscriber Unit, engineered for high-performance Point-to-Multi-Point wireless networks. This subscriber unit is designed to deliver a staggering 600+ Mbps of real throughput, making it an ideal solution for WISPs, security integrators, and enterprises demanding robust and high-capacity connectivity. Its rugged, IP67-rated metal enclosure ensures flawless operation in the harshest environmental conditions, providing a truly carrier-grade solution. The inclusion of N-Type connectors offers the flexibility to use high-gain external antennas to maximize range and signal quality.
Advanced Technology for Superior Connectivity
At the core of the RapidFire SU is a powerful 720 MHz CPU combined with LigoWave's proprietary W-Jet V protocol. This combination ensures low, stable latency and high packet per second (PPS) performance, which is critical for real-time applications like VoIP and video surveillance. The unit operates in the 5 GHz band and utilizes 2x2 MIMO technology to achieve its impressive speeds. Setup and management are streamlined through the LigoWave OS, which includes essential tools like a setup wizard, spectrum analyzer, and single-side configuration for effortless deployment.
Built for Durability and Flexibility
The LigoWave PTMP RapidFire SU is not only powerful but also built to last. The IP67-rated enclosure provides complete protection against dust and water ingress. Furthermore, integrated surge protection (4 kV line to ground and 2 kV line-to-line) safeguards the unit against lightning and industrial surges, enhancing its reliability in outdoor installations. The Gigabit Ethernet port supports 802.3af/at PoE, allowing for flexible and straightforward installations using standard PoE switches.
Key Features:
- 600+ Mbps throughput for high-capacity networks.
- Proprietary W-Jet V protocol for optimized performance.
- Powerful 720 MHz CPU for high PPS rate.
- N-Type connectors for external antenna flexibility.
- Robust IP67 weatherproof metal enclosure.
- Integrated surge protection for enhanced durability.
- Gigabit Ethernet port with 802.3af/at PoE support.
- User-friendly LigoWave OS with essential tools.
Technical Specifications
| Wireless | |
| Wireless Protocol | W-Jet V |
| Radio Mode | MIMO 2x2 |
| Frequency Range | 4.900 - 6.100 GHz |
| Channel Size | 5, 10, 20, 40, 80 MHz |
| Modulation Schemes | BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Data Rates @ 80MHz | 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps |
| Antenna | |
| Type | 2x N-type connectors for external antenna |
| Wired | |
| Interface | 1x 10/100/1000 Base-T, RJ45 |
| Physical | |
| Dimensions (L x W x H) | 198 x 198 x 46 mm (7.7'' x 7.7'' x 1.8'') |
| Weight | 2.96 kg (6.53 lbs) |
| Mounting | Pole mount included |
| Power | |
| Powering Method | 802.3af/at PoE |
| Power Supply | 48V 0.5A PoE injector included |
| Power Consumption | 12 W |
| Environmental | |
| Operating Temperature | -40°C to +65°C (-40°F to +149°F) |
| Humidity | 0 to 90% (non-condensing) |
| Enclosure | IP67 rated, cast aluminum |
| Management | |
| System | LigoWave OS |
| Configuration | Web-based GUI, WNMS |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
