AC1200 Dual Band
4G+ Cat6 Support
EasyMesh Compatible
Gigabit Ports

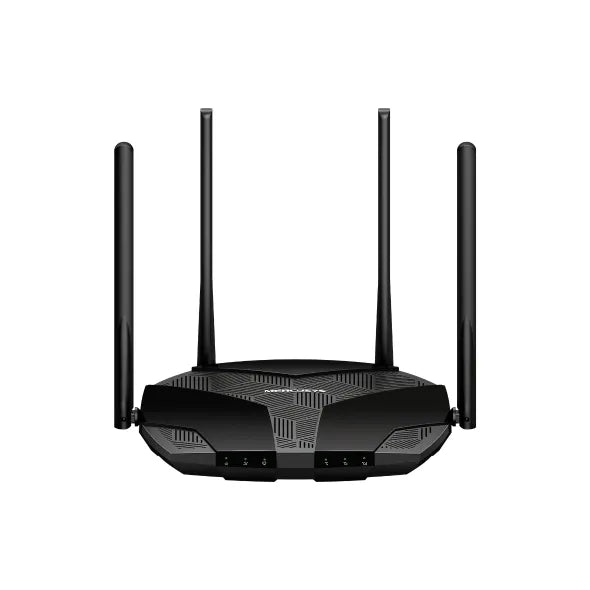

Mercusys AC1200 Wi-Fi 4G+ LTE Router | MB235-4G
Estimated delivery
Includes R 0 already in your cart
High-Speed 4G+ Connectivity
Experience reliable, high-speed internet anywhere with the Mercusys AC1200 Wi-Fi 4G+ LTE Router (MB235-4G). Supporting 4G+ Cat6 technology, it delivers download speeds up to 300 Mbps. Simply insert a Nano SIM card to share a fast Dual-Band Wi-Fi network with up to 64 devices simultaneously.
Features
- 4G+ Cat6 Speeds: Enjoy rapid download speeds of up to 300 Mbps.
- AC1200 Dual Band Wi-Fi: 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz for smooth streaming.
- Plug and Play: Simply insert a Nano SIM card and power on to create a Wi-Fi hotspot.
- Gigabit Ports: 3x Gigabit LAN and 1x Gigabit WAN/LAN ports for fast wired connections.
- EasyMesh Compatible: Works with EasyMesh products to create a seamless whole-home network.
Specifications
| Brand | Mercusys |
| Model | MB235-4G |
| Wi-Fi Speed | AC1200 (300 + 867 Mbps) |
| Cellular Standards | Cat 6; 300/50 Mbps DL/UL |
| Cellular Bands | EU:; FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz); TDD-LTE: B38/B40 (2600/2300 MHz); HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| SIM | 1× Nano SIM Card Slot |
| Wi-Fi Class | AC1200 |
| Wi-Fi (2.4 GHz) | 300 Mbps |
| Wi-Fi (5 GHz) | 867 Mbps |
| Wireless Standards | IEEE 802.11ac/a/b/g/n |
| Max Channel Width | 80 MHz |
| Reception Sensitivity | 11g 6 Mbps: -95 dBm; 11g 54 Mbps: -77 dBm; 11n HT20 MCS7: -74 dBm; 11n HT40 MCS7: -71 dBm; 11a 6 Mbps: -92 dBm; 11a 54 Mbps: -75 dBm; 11ac VHT20 MCS8: -70 dBm; 11ac VHT40 MCS9: -65 dBm; 11ac VHT80 MCS9: -61 dBm |
| MAX Capacity | 64 |
| Recommended Clients Limit | 32 |
| Wireless Security | WPA-PSK / WPA2-PSK / WPA3-SAE |
| Wireless Functions | Smart connect; WPS; Wireless Schedule |
| Operation Modes | 3G/4G Router; Wireless Router |
| Cellular Mode | 4G Mode; 3G Mode |
| Cellular APN | Data Roaming; Band Search; Network Search; Profile Create; APN Settings; ISP File Upgrade; PIN Management |
| WAN Mode | Dynamic IP; Static IP; PPPoE; PPTP; L2TP |
| DHCP | Server; DHCP Client List; Address Reservation |
| NAT Forwarding | ALG; Virtual Server; Port Triggering; UPnP; DMZ |
| Protocols | IPv4; IPv6 |
| Data Settings | Data Statistics; Data Limit |
| Guest Network | 2.4 GHz Guest Network; 5 GHz Guest Network |
| Parental Controls | Time Control; Website Filtering |
| DDNS | DynDNS; NO-IP |
| SMS | Inbox; New Message; Outbox; Drafts |
| Easy Mesh | √ |
| QoS | √ |
| Security | IPv4 SPI Firewall; Access Control; IP & MAC Binding; IPv6 Firewall |
| ISP Feature | TR-069 |
| System | Time & Language; LED Control; Diagnostics; Firmware Upgrade; Backup&Restore; Reboot; Administration; System Log; CWMP Settings |
| LED Management | LED Control; Night Mode |
| Device Management | MERCUSYS APP; Web GUI |
| Cloud | Firmware Upgrade over the Cloud; Remote Management |
| Language | English; Deutsch; Español; Français; Italiano; Polski; Русский |
| Dimensions (W X D X H) | 209 × 171.9 × 41.7 mm; (8.2 × 6.8 × 1.6 in) |
| Interfaces | 1× GE LAN/WAN Port; 3× GE LAN Ports; 1× Nano SIM Card Slot |
| Antenna | 2 External Detachable 4G LTE Antennas; 2 External Wi-Fi Antennas |
| Button | 1×WPS Button; 1×Reset Button |
| External Power Supply | 12V/1A |
| Installation | Desktop |
| LED | 1× POWER; 1× Internet; 1× LAN; 3× Signal |
| Retail Package Dimension | 305 × 274 × 60 |
| Certifications | CE |
| Environment | Operating Temperature: 0 °C~40 °C (32 °F~104 °F); Storage Temperature: -40 °C~60 °C (-40 °F~140 °F); Operating Humidity: 10%~90% Non-Condensing; Storage Humidity: 5%~90% Non-Condensing |
What's in the Box
- 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB235-4G)
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
