16x 100G QSFP28 ports
4x 25G SFP28 ports
3.35 Tbps Non-blocking Layer 2 throughput
Two Hot-Swappable Power Supplies

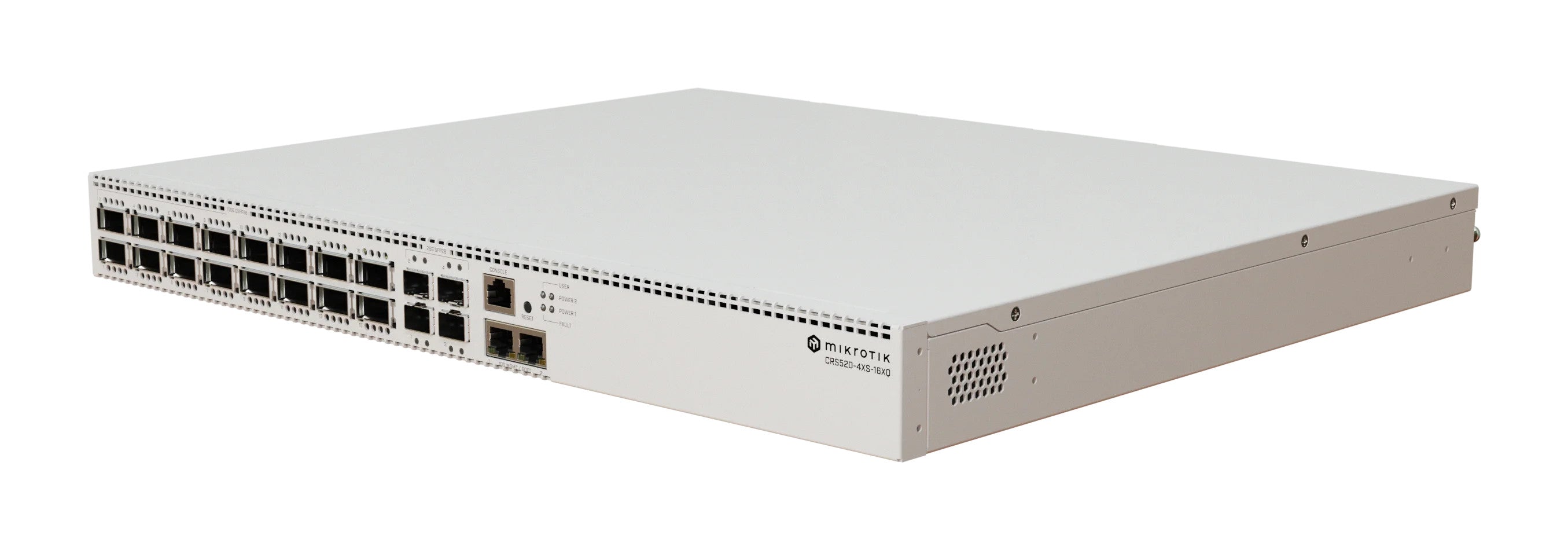

MikroTik CRS520-4XS-16XQ-RM 16-Port 100G QSFP28 & 4-Port 25G SFP28 Cloud Router Switch
Estimated delivery
Includes R 494.91 already in your cart
Unleash Unprecedented Network Performance
Meet the MikroTik CRS520-4XS-16XQ-RM, a future-proof Cloud Router Switch engineered to be the heart of the most demanding networks. Designed for complex enterprise environments, data centers, and multimedia studios, this single device eliminates the need for multiple pieces of hardware by consolidating immense power and connectivity. With an exceptional price per 100-Gigabit port, the CRS520 delivers unparalleled value and performance, ensuring your infrastructure is ready for the future.
Extreme Port Density & High-Speed Throughput

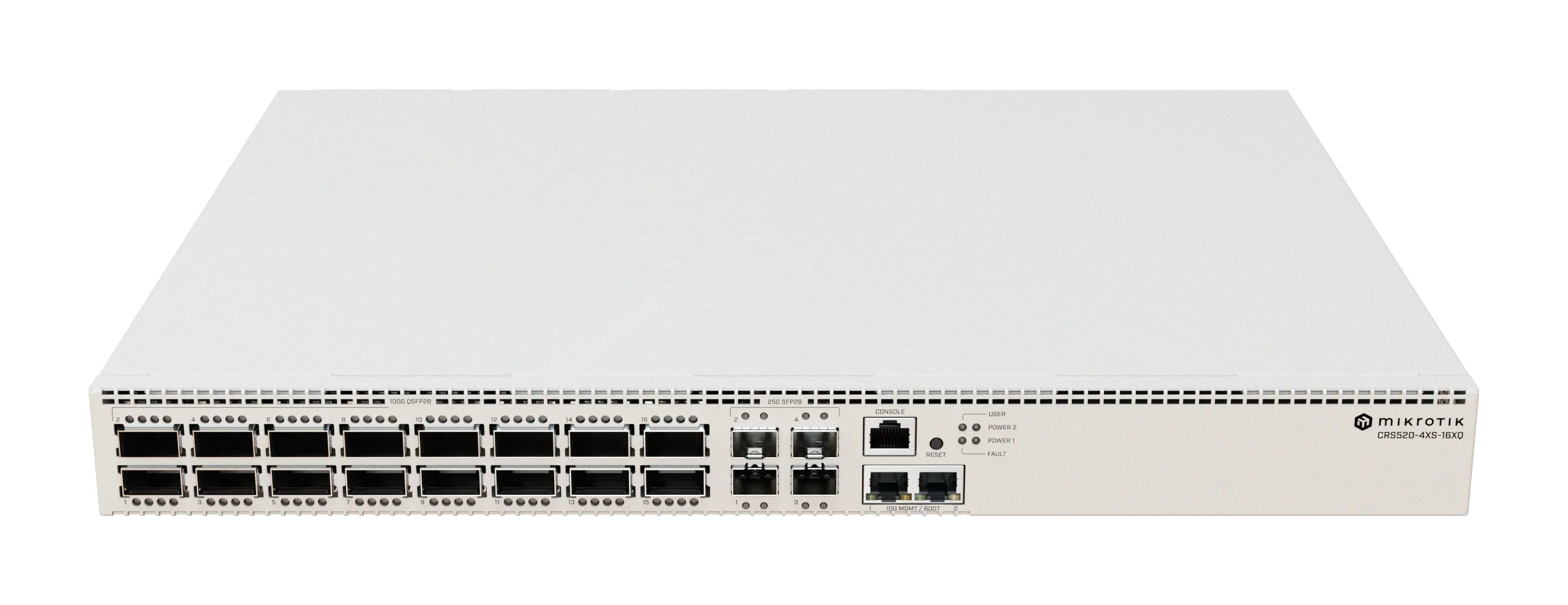

The CRS520 is built for massive data flow, featuring a high-density port configuration to handle any workload. It boasts 16x 100G QSFP28 ports for your core infrastructure and 4x 25G SFP28 ports for flexible, high-speed uplinks or server connections. Additionally, it includes two 10G Ethernet ports and an RJ45 console port for management and out-of-band access. This switch is capable of achieving a non-blocking Layer 2 throughput of up to 3.35 Tbps, ensuring your network operates at near wirespeed without bottlenecks.
More Than a Switch: Powerful Routing Capabilities
At its core, the CRS520 is powered by a robust quad-core ARM CPU running at 2 GHz, paired with 4 GB of DDR4 RAM. This significant processing power transforms it from a simple switch into a fully-fledged router. It can expertly handle complex tasks such as OSPF/BGP routing, out-of-band management VPNs, advanced Access Control Lists (ACLs), Jumbo frames, and even Layer 3 Hardware Offloaded routing. Running on RouterOS v7, you can expect continuous software updates that will unlock even more hardware-offloaded features over time.
Engineered for Reliability and Uptime

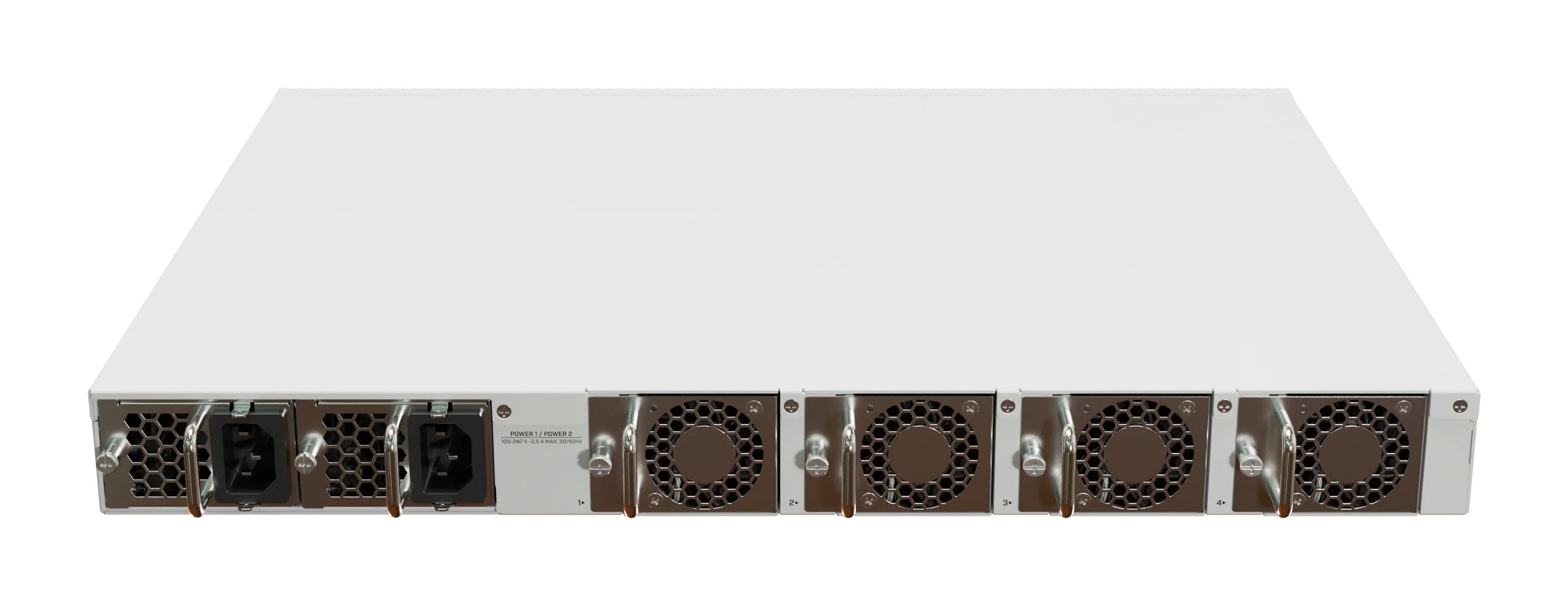

The CRS520-4XS-16XQ-RM is designed for continuous, mission-critical operation. It features two hot-swappable power supplies for complete power redundancy, ensuring your network remains online. To maintain optimal operating temperatures under heavy load, the unit is equipped with four hot-swappable fans. This focus on reliability makes the CRS520 a dependable foundation for any high-stakes network environment.
| Technical Specifications | |
|---|---|
| Product code | CRS520-4XS-16XQ-RM |
| Architecture | ARM 64bit |
| CPU | AL52400 |
| CPU Core Count | 4 |
| CPU Nominal Frequency | 2 GHz |
| Switch Chip Model | 98CX8410 |
| Operating System | RouterOS v7 |
| RouterOS License | 5 |
| Size of RAM | 4 GB |
| Storage Size | 128 MB |
| Storage Type | NAND |
| Number of 10G Ethernet ports | 2 |
| Number of 25G SFP28 ports | 4 |
| Number of 100G QSFP28 ports | 16 |
| Number of AC inputs | 2 (Hot-swap) |
| AC Input Range | 100-240V |
| Max Power Consumption | 150 W (220 W with both PSUs) |
| Max Power Consumption (without attachments) | 123 W |
| Cooling Type | 4 Fans (Hot-swap) |
| Dimensions | 443 x 367 x 44 mm |
| Tested Ambient Temperature | -20°C to 50°C |
| MTBF | Approximately 200,000 hours at 25C |
What's in the Box
- MikroTik CRS520-4XS-16XQ-RM
- 2x IEC cords
- Rackmount rear support ears (2/2)
- Cable managment brackets
- K-82 fastening set
- Rackmount ears
Manufacturer Technical Data
| Product Spec Sheet |
|
|---|
