MikroTik BaseBox 5 - 5GHz radio, 1 USB port and 2 RP-SMA Female connectors
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance Outdoor Wireless Solution

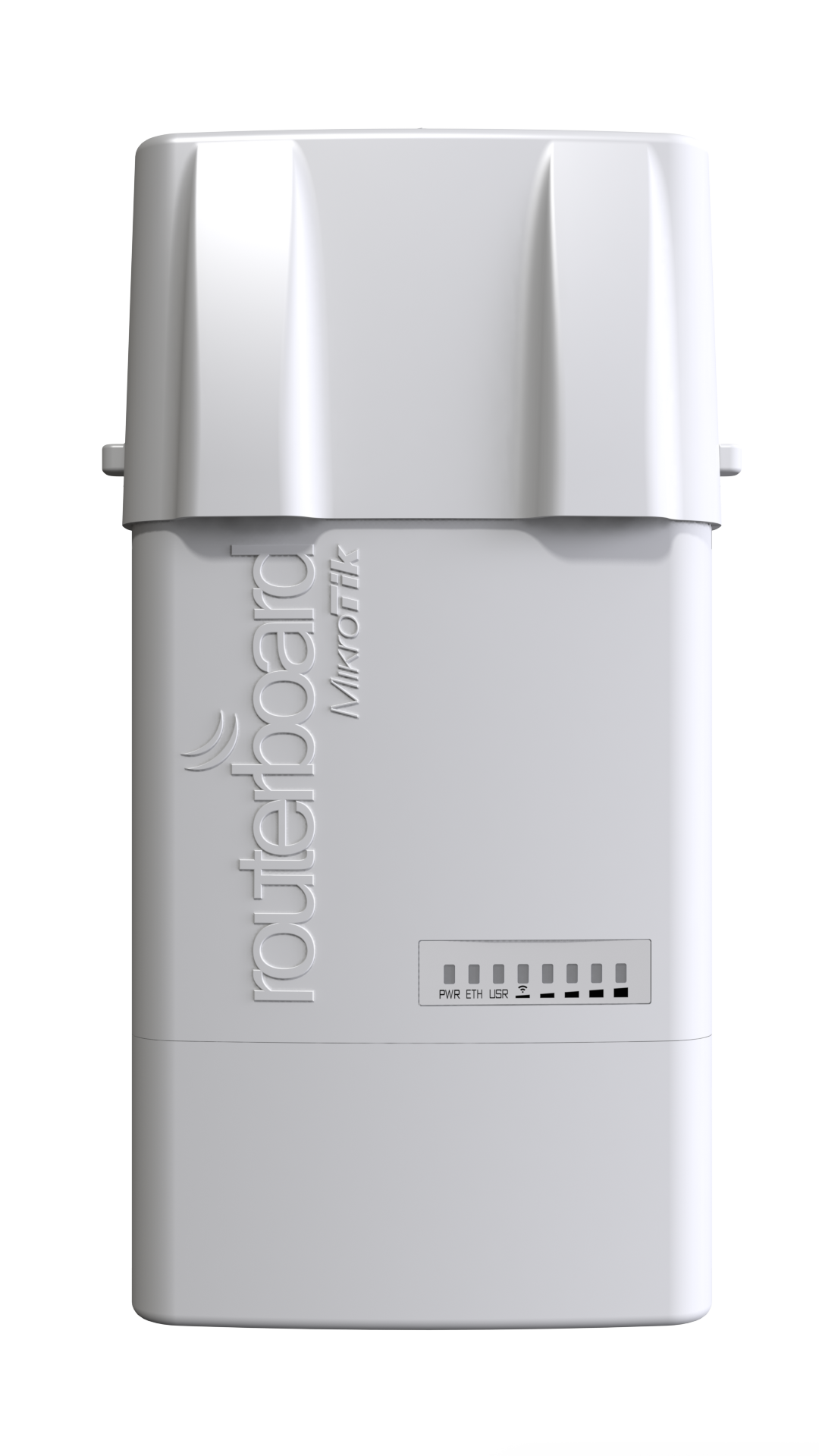

The MikroTik BaseBox 5 is a robust and versatile outdoor wireless device, built around the popular RB912 model. It is designed for professionals seeking a reliable, high-power 5GHz access point, backbone, or CPE (Customer Premises Equipment) solution. Encased in a durable, weatherproof enclosure, the BaseBox 5 is engineered to withstand harsh environmental conditions, with a tested ambient temperature range of -40°C to 70°C. The case can be opened with a single hand and features a cable hood for added protection against moisture.
Powerful and Expandable Hardware

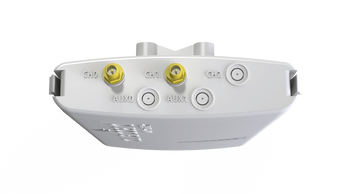

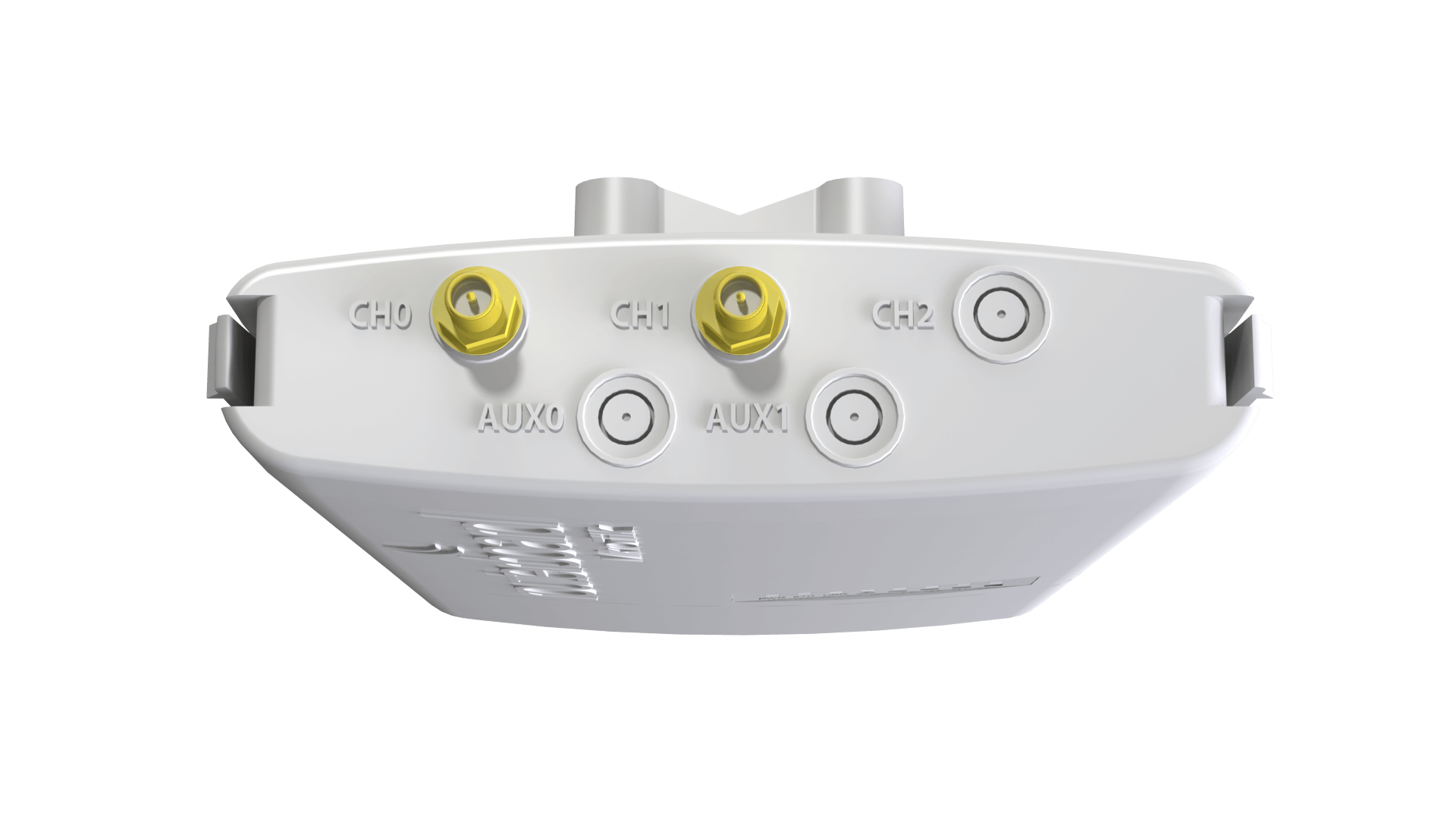

At its core, the BaseBox 5 is powered by an Atheros AR9342 600 MHz CPU with 64 MB of RAM, running on the powerful RouterOS Level 4 operating system. This combination provides the flexibility to manage complex network configurations. The device includes a built-in 5GHz 802.11a/n dual-chain wireless module with a maximum data rate of 300 Mbit/s, connected to two external RP-SMA female connectors for your choice of antennas. For ultimate versatility, it also features a miniPCIe slot and a USB 2.0 port, allowing for expansion with an additional wireless card to create a dual-band device or to add a 3G/4G modem for cellular connectivity.
Connectivity and Installation
The BaseBox 5 is equipped with one Gigabit Ethernet port to take full advantage of 802.11n wireless speeds. Powering the device is simple via Passive PoE, accepting 8-30V DC input. The package is a complete solution, containing the BaseBox 5 unit, a 24V power supply, a PoE injector, a mounting loop for tower or pole installation, and a DIN rail mount.
| Product Specifications | |
| Product Code | RB912UAG-5HPnD-OUT |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU Core Count | 1 |
| CPU Nominal Frequency | 600 MHz |
| Size of RAM | 64 MB |
| Storage Size | 128 MB |
| Storage Type | NAND |
| Operating System | RouterOS |
| RouterOS License | 4 |
| Wireless Specifications | |
| Wireless 5 GHz Max Data Rate | 300 Mbit/s |
| Wireless 5 GHz Number of Chains | 2 |
| Wireless 5 GHz Standards | 802.11a/n |
| Wireless 5 GHz Chip Model | AR9342 |
| Ethernet | |
| 10/100/1000 Ethernet Ports | 1 |
| Peripherals | |
| MiniPCI-e slots | 1 |
| Number of USB Ports | 1 |
| USB Slot Type | USB type A |
| Number of SIM slots | 1 Modem (Mini SIM) |
| Powering | |
| PoE In | Passive PoE |
| PoE In Input Voltage | 8-30 V |
| Max Power Consumption | 12 W |
| Physical | |
| Dimensions | 246x135x50mm |
| Tested Ambient Temperature | -40°C to 70°C |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
