MikroTik

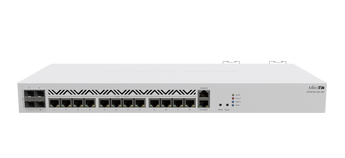

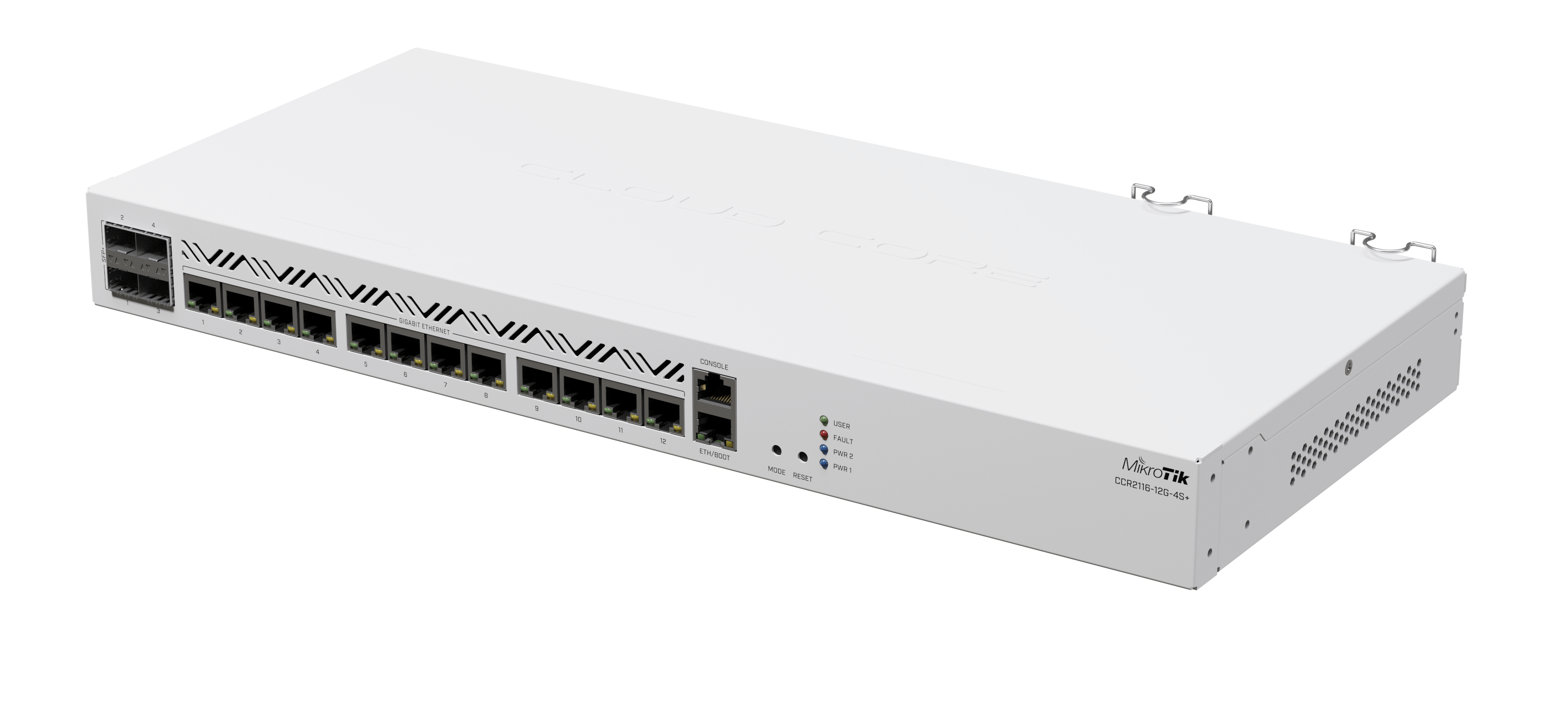

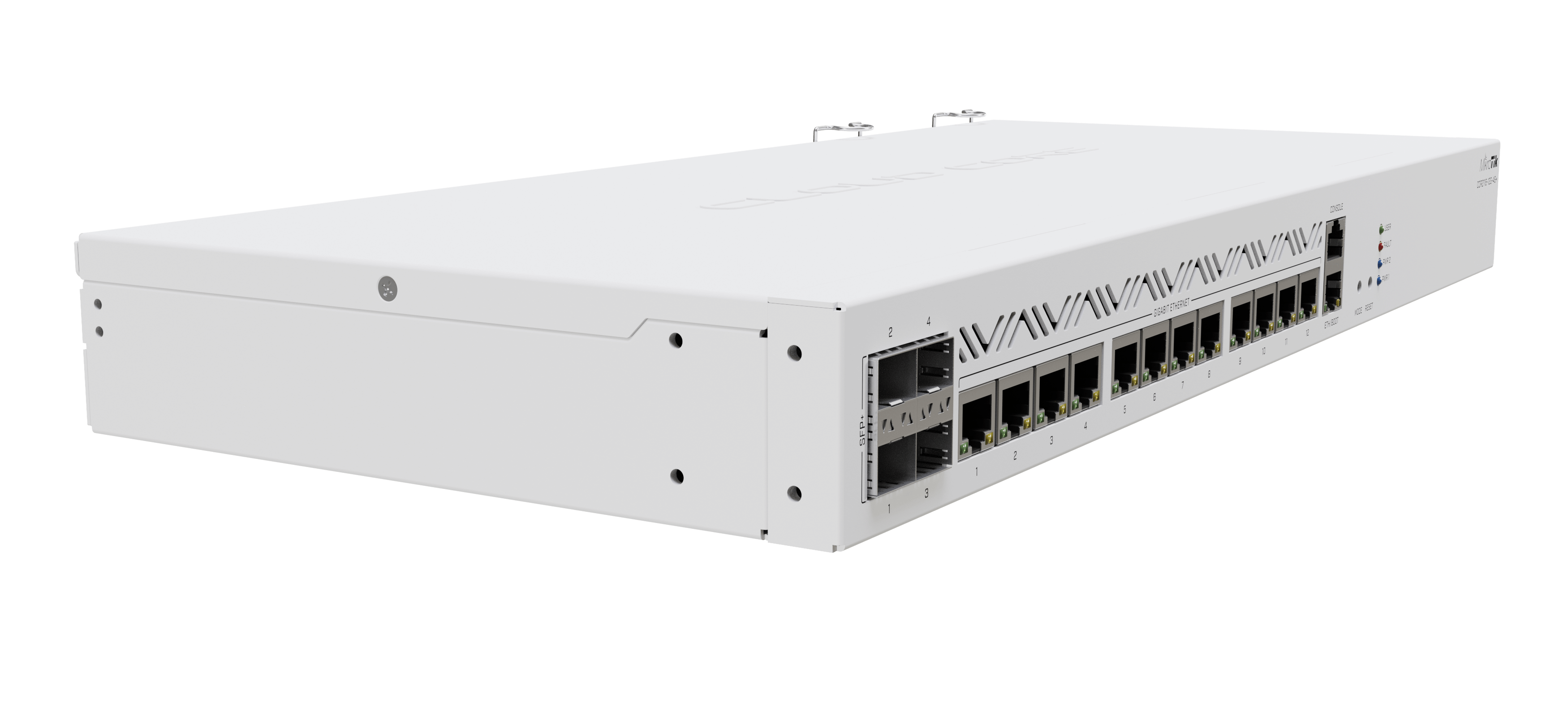

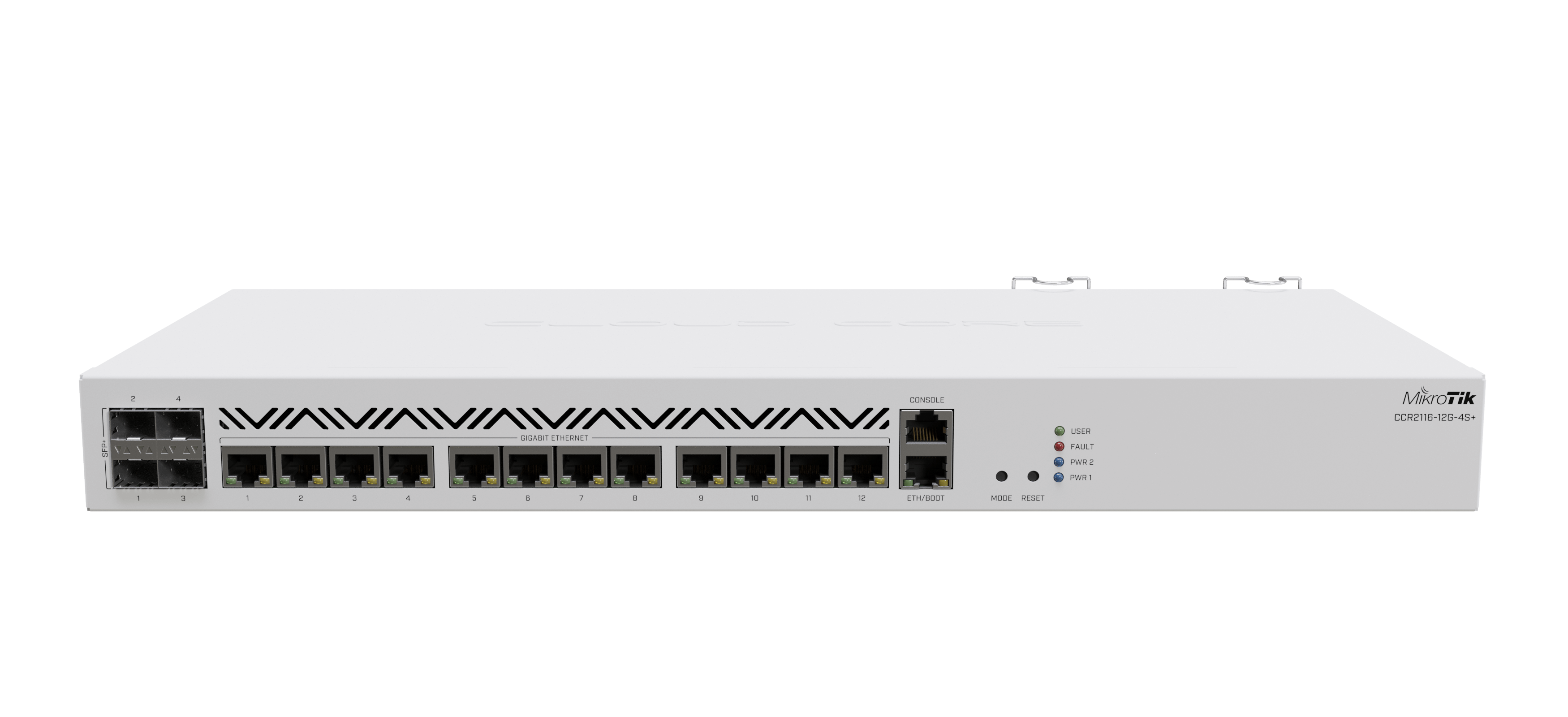

MikroTik CCR2116-12G-4S+ 16-Core Cloud Core Router
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Unprecedented Network Performance
Eliminate CPU bottlenecks and elevate your network's capabilities with the MikroTik CCR2116-12G-4S+. This Cloud Core router is engineered for large ISPs and demanding enterprise environments, combining the raw power of a modern 16-core CPU with the steadfast reliability of 10G networking. Featuring the formidable Amazon Annapurna Labs Alpine CPU with 16 cores running at 2 GHz, this router delivers at least a 15% increase in single-core performance compared to other models, which is critical for heavy operations based on per-connection processing like advanced queues and complex firewall rules. Experience a new standard of performance that can easily double the throughput of older 36-core routers, ensuring your network is future-proof.
Superior Connectivity & Throughput
Harness the full potential of your network with versatile and high-speed connectivity options. The CCR2116-12G-4S+ is equipped with four 10G SFP+ ports, each with a separate, full-duplex line connected to a powerful Marvell Aldrin family switch chip to prevent bottlenecks. It also includes twelve Gigabit Ethernet ports managed by the Marvel chip and an additional Gigabit port connected directly to the CPU for management purposes. With Layer 3 Hardware Offloading supported, you can expect switch-like throughput in most configurations, freeing up the CPU to handle dynamic routing, massive BGPs, and intricate quality of service configurations without breaking a sweat.
Built for Reliability and Expansion

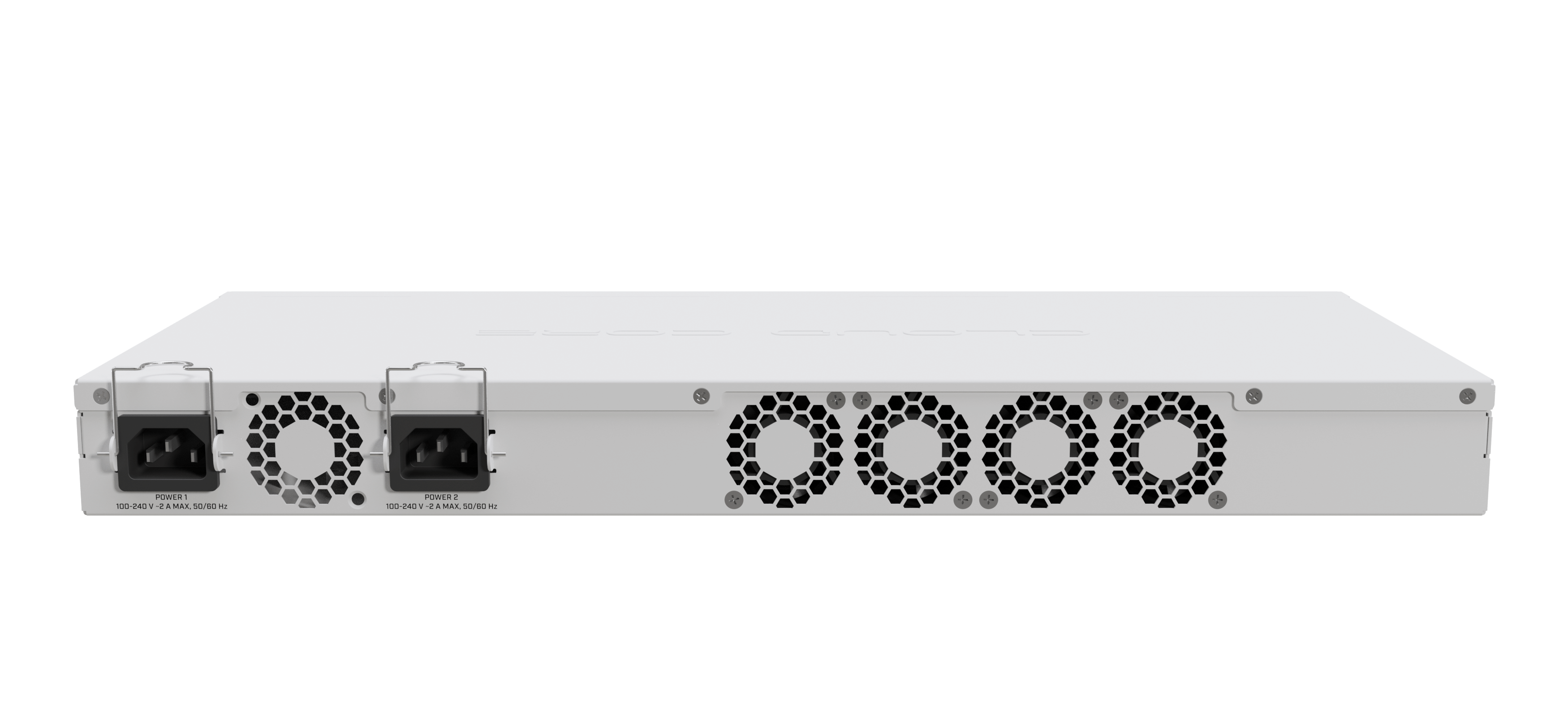

Designed for mission-critical applications, this router ensures continuous operation with dual-redundant power supplies. Housed in a 1U rackmount chassis, it integrates seamlessly into your existing infrastructure. For future expansion and even greater capabilities, an M.2 PCIe slot is included, allowing you to add an NVMe SSD for additional storage or other functionalities. Running on the powerful and versatile RouterOS v7 (Level 6 license), this device provides a robust suite of features for any ISP-level requirement.
Technical Specifications
| General | |
|---|---|
| Product code | CCR2116-12G-4S+ |
| Architecture | ARM 64bit |
| Dimensions | 443 x 199 x 44 mm |
| Operating System | RouterOS v7 |
| RouterOS license | 6 |
| CPU & Memory | |
| CPU | AL73400 |
| CPU core count | 16 |
| CPU nominal frequency | 2000 MHz |
| Size of RAM | 16 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Networking | |
| 10/100/1000 Ethernet ports | 13 |
| SFP+ ports | 4 |
| Switch chip model | 98DX3255 |
| Expansion & Peripherals | |
| Number of M.2 slots | 1 |
| Serial console port | RJ45 |
| Powering | |
| Number of AC inputs | 2 (Dual Redundant) |
| AC input range | 100-240 V |
| Max power consumption | 60 W (without attachments) / 83 W (max) |
| Environmental | |
| Cooling type | 4 fans |
| Tested ambient temperature | -20°C to 60°C |
| MTBF | Approximately 200,000 hours at 25C |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
