MikroTik

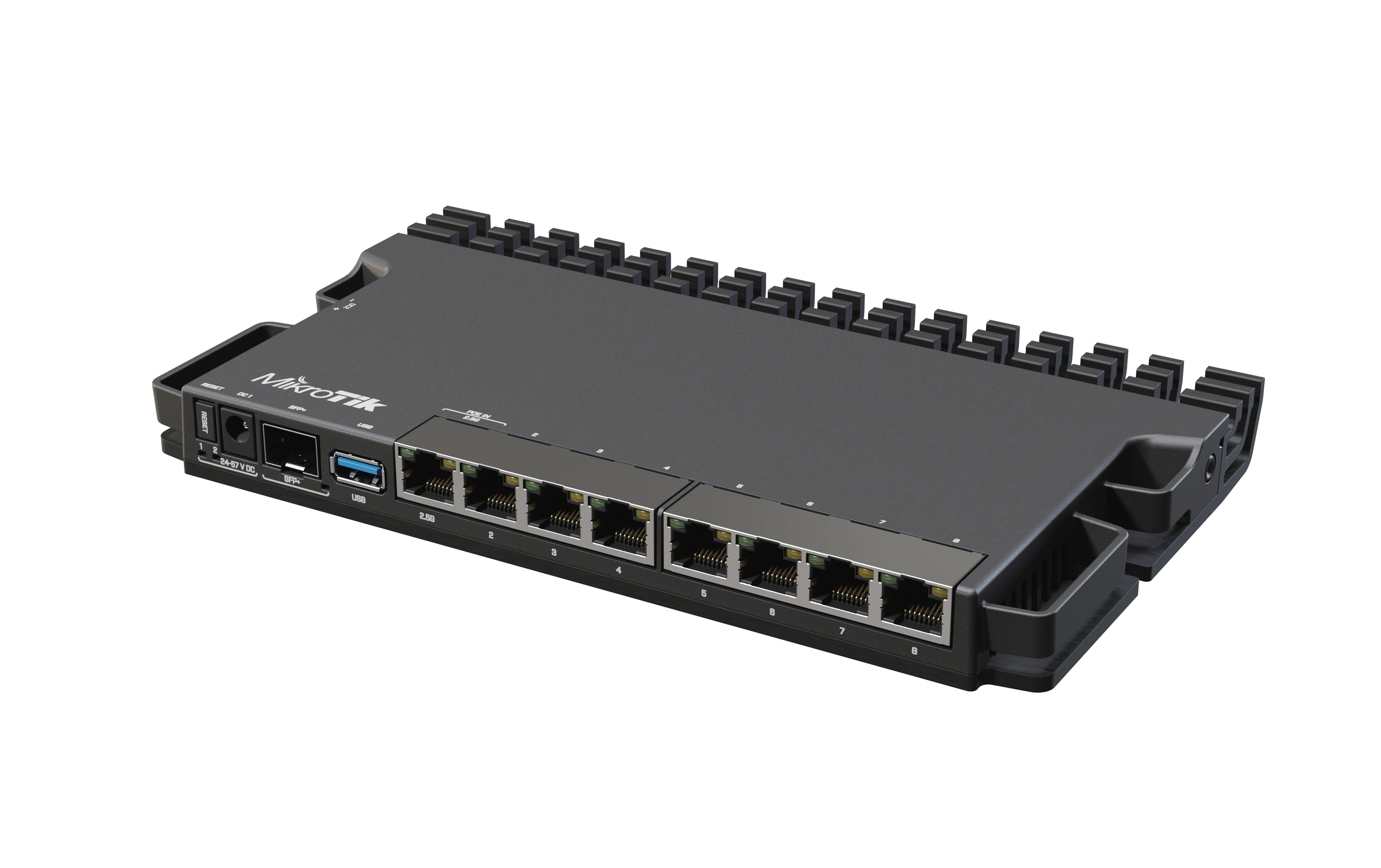

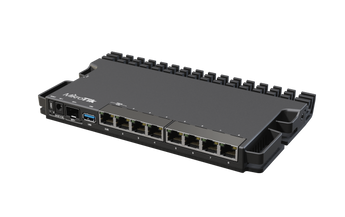

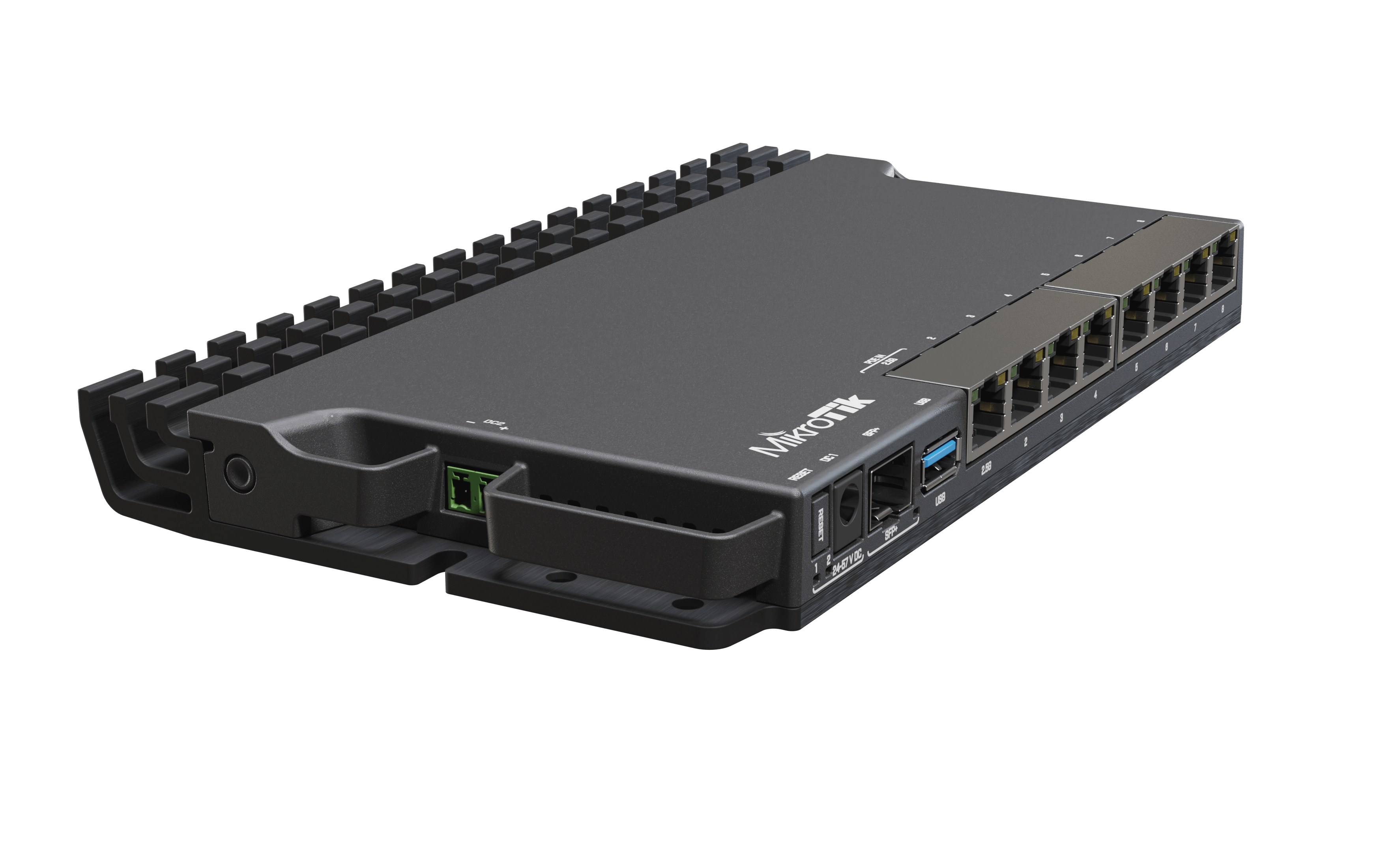

MikroTik RB5009UG+S+IN 10G SFP+ and 2.5G Ethernet Router
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Peak Performance with the MikroTik RB5009UG+S+IN Router
Engineered for demanding home labs and professional networks, the MikroTik RB5009UG+S+IN is a compact and powerful router that delivers exceptional performance and versatility. This heavy-duty router is equipped with a robust quad-core ARMv8 1.4 GHz CPU, ensuring it can handle high traffic volumes and complex configurations without compromising stability. Its innovative design places the CPU and switch-chip on the bottom of the board, allowing the entire case to function as a massive heat sink for efficient passive cooling.
Next-Generation Connectivity
The RB5009UG+S+IN boasts a comprehensive array of ports to meet all your connectivity needs. It features seven 1 Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, and a 10G SFP+ cage for high-speed fiber connections. A full-sized USB 3.0 port adds to its versatility. All ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line to the CPU, providing nearly double the performance in CPU-heavy configurations compared to previous models in a similar form factor.
Flexible Powering and Mounting Options
This router offers three distinct powering options for redundancy and flexibility: PoE-in on the first Ethernet port, a standard DC jack, and a 2-pin terminal. Its compact and efficient design allows for up to four of these routers to be mounted in a single 1U rackmount space, making it an ideal solution for server rooms and setups where space is at a premium.
Technical Specifications
| Product code | RB5009UG+S+IN |
| Architecture | ARM 64bit |
| CPU | 88F7040 |
| CPU core count | 4 |
| CPU nominal frequency | 350-1400 (auto) MHz |
| Switch chip model | 88E6393 |
| Dimensions | 220 x 125 x 22 mm |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Powering | |
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage | 24-57 V |
| 2-pin terminal input Voltage | 24-57 V |
| Max power consumption | 25 W |
| Max power consumption without attachments | 14 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 24-57 V |
| Ethernet | |
| 10/100/1000 Ethernet ports | 7 |
| Number of 2.5G Ethernet ports | 1 |
| Fiber | |
| SFP+ ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
