MikroTik
MikroTik LHG XL 5 ac 27dBi Grid CPE - 4 Pack
Pickup available at NexGen Computing
Usually ready in 24 hours
Establish Rock-Solid, Long-Distance Wireless Links

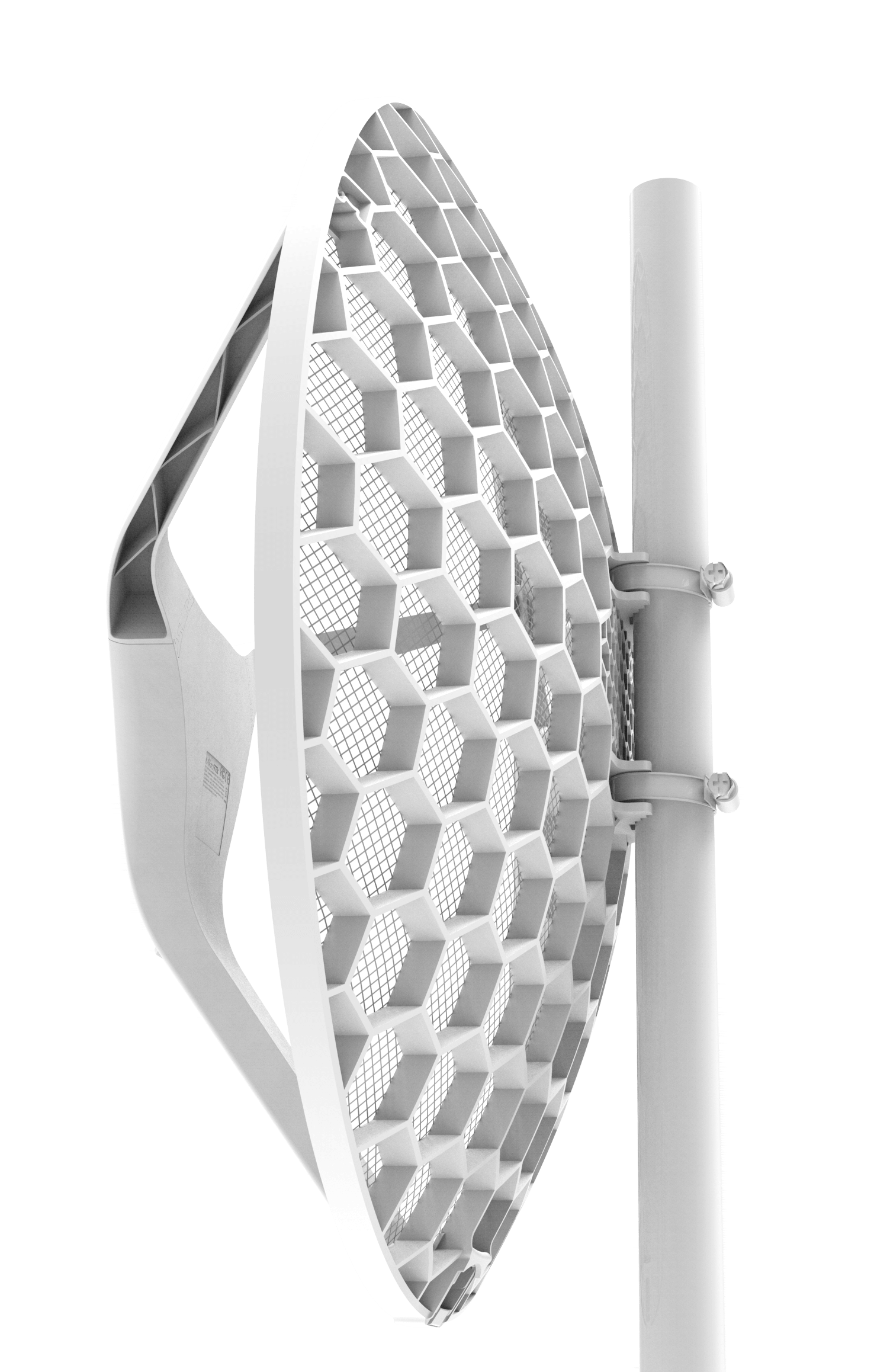

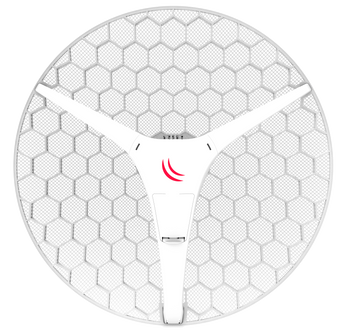

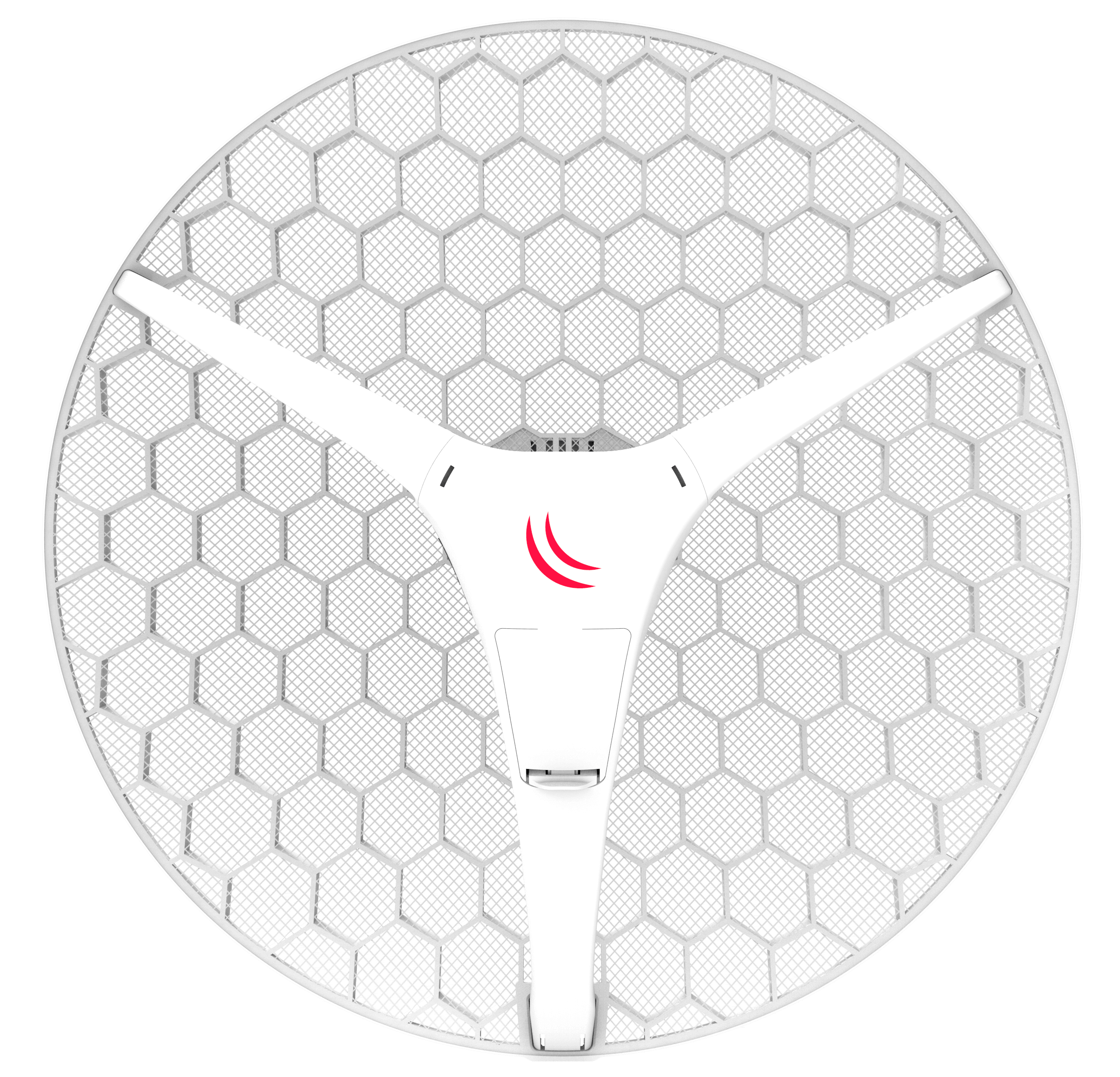

This convenient 4-pack of MikroTik LHG XL 5 ac units is the ultimate solution for building high-speed, long-range Point-to-Point (PtP) links or for use as powerful Customer Premises Equipment (CPE). Each device features a large, 27 dBi dual-polarization grid antenna, engineered for maximum signal strength and interference rejection over vast distances. The grid design not only ensures a tightly focused signal but also provides excellent stability in high-wind conditions. Powered by the 802.11ac standard and a robust quad-core processor, this kit delivers the performance and reliability needed for critical network backhauls and connecting remote locations.
Engineered for Peak Performance
Each LHG XL 5 ac is equipped with a powerful IPQ-4018 quad-core CPU and 256 MB of RAM, ensuring smooth and stable operation even under heavy traffic loads. The integrated Wi-Fi 5 (802.11a/n/ac) radio supports data rates up to 867 Mbit/s, while the Gigabit Ethernet port allows you to take full advantage of this high-speed wireless connection. The devices are powered by Passive PoE (10-30V) and are built to withstand the harshest outdoor environments, with a tested ambient temperature range of -40°C to 70°C. With MikroTik's feature-rich RouterOS (Level 3 License), you have complete control to configure and manage your wireless links with professional precision.
Key Features:
- Complete 4-Pack Kit: Includes four LHG XL 5 ac units for deploying multiple PtP links or connecting several client locations.
- High-Gain 27 dBi Antenna: Large grid design provides a narrow 7° beamwidth for exceptional long-range performance and noise immunity.
- 802.11ac Wireless Standard: Achieves up to 867 Mbit/s for high-throughput data transfer.
- Powerful Quad-Core CPU: Ensures reliable performance and supports advanced RouterOS features.
- Gigabit Ethernet Port: Eliminates bottlenecks and maximizes wireless speed.
- Rugged Outdoor Design: Weather-resistant construction is built to withstand challenging environmental conditions.
- RouterOS Level 3: Provides extensive control for PtP, CPE, and point-to-multipoint configurations.
Technical Specifications
| Product Details | |
|---|---|
| Product Code | RBLHGG-5acD-XL |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU Core Count | 4 |
| CPU Nominal Frequency | 716 MHz (Auto 488-896 MHz) |
| Size of RAM | 256 MB |
| Storage Size | 16 MB |
| Storage Type | FLASH |
| Operating System | RouterOS |
| RouterOS License | 3 |
| Wireless Specifications | |
| Wireless 5 GHz Generation | Wi-Fi 5 |
| Wireless 5 GHz Standards | 802.11a/n/ac |
| Wireless 5 GHz Max Data Rate | 867 Mbit/s |
| Wireless 5 GHz Number of Chains | 2 |
| Antenna Gain (5 GHz) | 27 dBi |
| Antenna Beamwidth | 7° |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| PoE In | Passive PoE |
| PoE In Input Voltage | 10-30 V |
| Max Power Consumption | 8 W |
| Physical | |
| Ethernet Ports | 1 x 10/100/1000 Ethernet |
| Dimensions | Ø 550 x 245 mm |
| Tested Ambient Temperature | -40°C to 70°C |
| IP Rating | IP54 |
| Certifications | CE, FCC, IC, EAC, ROHS |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
