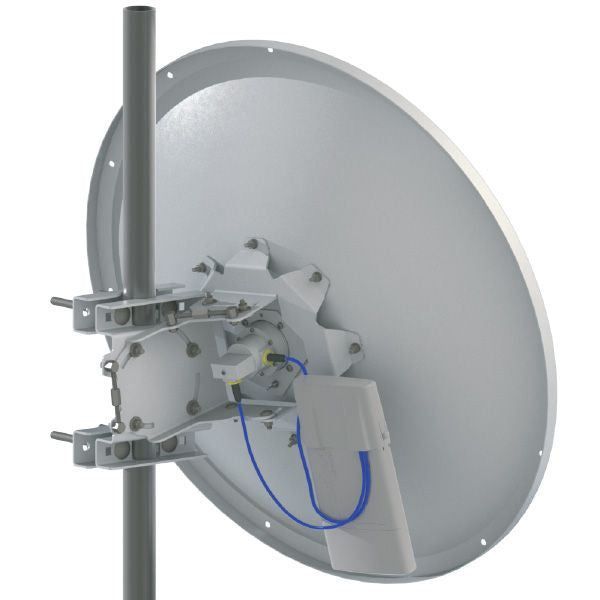

MikroTik mANT30 PA - 5GHz Parabolic Dish
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Carrier-Class Long-Range Connectivity
Achieve superior performance and stability in your long-distance point-to-point links with the MikroTik mANT30 PA, a professional-grade 5GHz parabolic dish antenna. Engineered to the highest industry standards, this 30dBi antenna is the ultimate solution for Wireless Internet Service Providers (WISPs), backhaul connections, and any scenario demanding high-throughput and extensive coverage. The key to this model is its precision alignment mounting system, which allows for exact and secure positioning to ensure the most reliable connection possible.
Engineered for Peak Performance and Durability
The mANT30 PA is built from high-quality aluminum to withstand the most challenging outdoor environments. It is designed to operate in a wide temperature range from -50°C to 80°C and can survive winds up to 201kph (125mph). Its dual-polarization (Vertical and Horizontal) design enhances signal quality and throughput, while the narrow +/-2.5 degree beamwidth provides a highly focused signal, minimizing interference. This antenna is built to seamlessly accommodate MikroTik's Basebox series products but can be used with any pole-mounted wireless device thanks to the included FlexGuide low-loss cables.
Comprehensive Specifications Table
| Antenna Specifications | |
| Product Code | MTAD-5G-30D3-PA |
| Frequency Range | 4.7 - 5.875 GHz |
| Gain | 30dBi |
| Polarization | Dual Linear (Vertical and Horizontal) |
| 3dB Beamwidth | +/- 2.5° |
| VSWR | ≤ 1.4 typical, ≤ 1.8 maximum |
| Port to Port Isolation | >40 dB min |
| Front-to-Back Ratio | >30 dB |
| Cross-Polarization | >40 dB |
| Impedance | 50 ohms |
| Power Rating | 100W |
| Physical & Environmental | |
| Reflector Material | Aluminum |
| Connectors | 2x RP-SMA Female (outside thread) |
| Diameter x Depth | 70 x 45 cm (27.5 x 17.8 in) |
| Weight (Antenna only) | 5.7 kg (12.6 lbs) |
| Packaged Weight | 8.4 kg |
| Operating Temperature | -50°C to 80°C (-49°F to 158°F) |
| Wind Survivability | 201 kph (125 mph) |
| Wind Load (at 201 kph) | 181.4 kg (400 lbs) |
| Pole Mount Diameter Range | 3 to 10 cm (1.2 to 3.9 in) |
| Outdoor Rating | ETSI EN 300 019-2-4 |
| Package Contents | mANT30 PA antenna, Precision alignment mount, FlexGuide RF cables, Mounting hardware |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
