MikroTik
MikroTik NetMetal ax Dual-Band WiFi 6 Outdoor Access Point with 2.5G SFP
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Blazing-Fast, Ultra-Reliable Connectivity in Any Environment
Meet the MikroTik NetMetal ax, a powerhouse long-range outdoor access point engineered to thrive where others fail. Encased in a rugged, IP66-rated waterproof metal enclosure, this AP is built to withstand the toughest conditions, from coastal towers to damp attics and bustling docks. Its robust design features a massive heat-sink, ensuring reliable performance under heavy loads.
Next-Generation Wi-Fi 6 Performance
Step into the future of wireless with dual-band, dual-chain Wi-Fi 6 (802.11ax) technology. The NetMetal ax delivers significantly increased speed, stability, and efficiency compared to previous protocols. Experience maximum data rates of up to 2400 Mbit/s on the 5 GHz band and 574 Mbit/s on the 2.4 GHz band, ensuring smooth, high-speed connectivity for all your devices.
Unmatched Versatility and Expansion
The NetMetal ax is designed for ultimate flexibility. It features a Gigabit Ethernet port and a 2.5 Gigabit SFP port for high-speed fiber connectivity. A free miniPCIe slot, combined with a NanoSIM slot, allows for further customization, such as adding an LTE modem for a mobile internet backup. A versatile USB port enhances its capability, allowing for even more expansion options.
Engineered for Power and Reliability

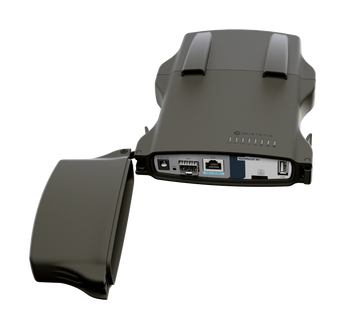

At its core, the NetMetal ax is powered by a modern dual-core ARM CPU, providing the processing power needed to handle demanding network loads. The device runs on the powerful and feature-rich RouterOS v7. With two RP-SMA connectors, you can attach your choice of external antenna to achieve optimal coverage for your specific deployment.
Comprehensive Specifications Table
| Product Details | |
|---|---|
| Product Code | L23UGSR-5HaxD2HaxD-NM |
| Architecture | ARM 32bit |
| CPU | IPQ-5010 |
| CPU Core Count | 2 |
| CPU Nominal Frequency | 800 MHz |
| Operating System | RouterOS v7 |
| RouterOS License | 4 |
| Size of RAM | 256 MB |
| Storage Size | 128 MB |
| Storage Type | NAND |
| Tested Ambient Temperature | -40°C to 70°C |
| IP Rating | IP66 |
| Wireless Specifications | |
| 2.4 GHz Max Data Rate | 574 Mbit/s |
| 2.4 GHz Wireless Standards | 802.11b/g/n/ax |
| 2.4 GHz Number of Chains | 2 |
| 5 GHz Max Data Rate | 2400 Mbit/s |
| 5 GHz Wireless Standards | 802.11a/n/ac/ax |
| 5 GHz Number of Chains | 2 |
| Antenna Connectors | 2 x RP-SMA |
| Ethernet & Fiber | |
| 10/100/1000 Ethernet ports | 1 |
| SFP ports | 1 (2.5G Supported) |
| Peripherals | |
| MiniPCI-e slots | 1 |
| SIM slots | 1 Modem (Nano SIM) |
| USB ports | 1 |
| USB Slot Type | USB type A |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-28 V |
| Max power consumption | 25 W |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
