Milesight

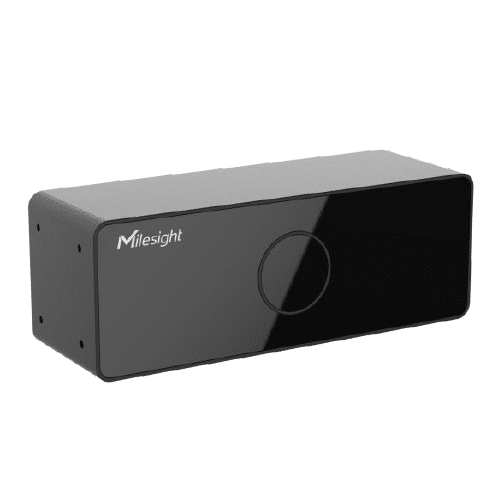

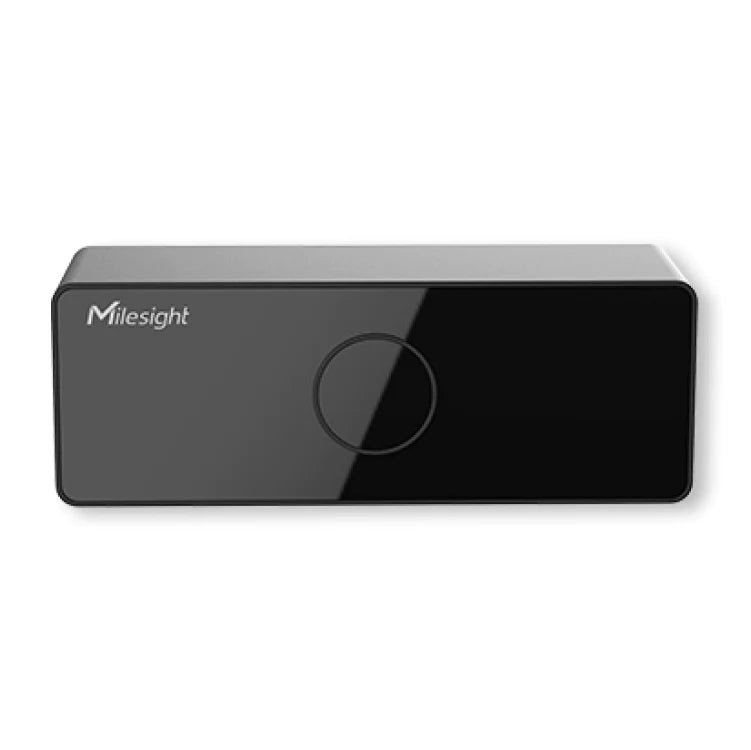

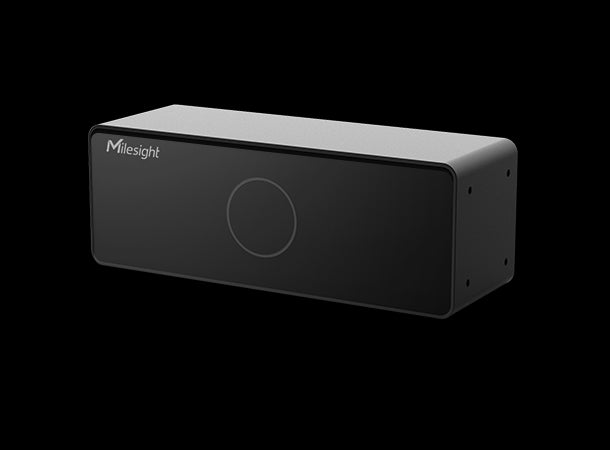

Milesight 3D ToF People Counting Sensor with LoRaWAN
Pickup available at NexGen Computing
Usually ready in 24 hours
Revolutionize Your Space with High-Accuracy, Anonymous People Counting
Unlock powerful insights into foot traffic and space utilization with the Milesight 3D ToF People Counting Sensor. Leveraging advanced Time-of-Flight (ToF) technology, this sensor delivers real-time, bi-directional counting with an exceptional accuracy rate of up to 99.8%. It's the ideal solution for retail stores, smart buildings, shopping malls, offices, and transportation hubs to optimize operations, enhance customer experiences, and improve efficiency.
Advanced Technology for Unmatched Performance
The sensor utilizes 3D Time-of-Flight (ToF) technology, which measures the time it takes for light to travel from the sensor to an object and back. This allows for the creation of depth maps to accurately distinguish and count people. A key feature is its 'Smart U-turn' counting, which intelligently filters out redundant counts of individuals lingering in an area, ensuring your data is precise. The VS132 functions perfectly even in complete darkness or other challenging lighting conditions, making it a reliable 24/7 solution.
100% GDPR Compliant and Privacy-Focused
In an era where privacy is paramount, the Milesight VS132 stands out. It provides 100% anonymous detection by capturing depth information without recording any personally identifiable images. This makes the sensor fully compliant with GDPR and other privacy regulations, giving you and your visitors complete peace of mind.
Seamless Integration & Flexible Installation
Designed for modern IoT ecosystems, the VS132 features both LoRaWAN® and Ethernet connectivity. Configuration is made simple via its built-in Wi-Fi or Ethernet port. Powering the device is easy and flexible with options for either Power over Ethernet (PoE) or a standard DC input. With the ability to store up to one million data records locally, you'll never miss valuable information.
Key Applications:
- Retail stores and shopping malls for customer flow analysis.
- Offices and meeting rooms for occupancy monitoring.
- Public transportation for passenger flow analysis.
- Smart buildings for efficient facility management.
Technical Specifications
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® |
| Frequency | EU868 |
| Max Tx Power | 16 dBm |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class C |
| People Counting Sensor | |
| Technology | 3D Time-of-Flight (ToF) |
| Accuracy | Up to 99.8% |
| Field of View (FoV) | 92.5° Horizontal, 67° Vertical |
| Detection Range | 0.5 to 3m |
| Installation Height | ≤ 3m |
| Local Storage | 1,000,000 data records |
| Interface & Power | |
| Ethernet Port | 1 x RJ45 10/100 Mbps (PoE PD supported) |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz (for configuration only) |
| Power Supply | 1. 802.3at PoE input 2. 12 VDC via 2-pin Terminal Block |
| Physical Characteristics | |
| Dimensions | 140 x 50 x 50 mm |
| Weight | 296g |
| Installation | Ceiling, Wall, or Embedded Mounting |
| Operating Temperature | -10°C to +60°C |
| Relative Humidity | 0% to 95% (non-condensing) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
