Milesight

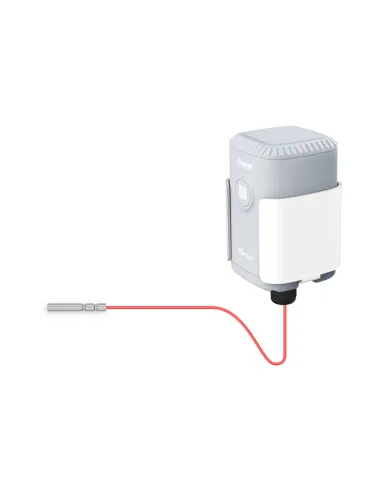

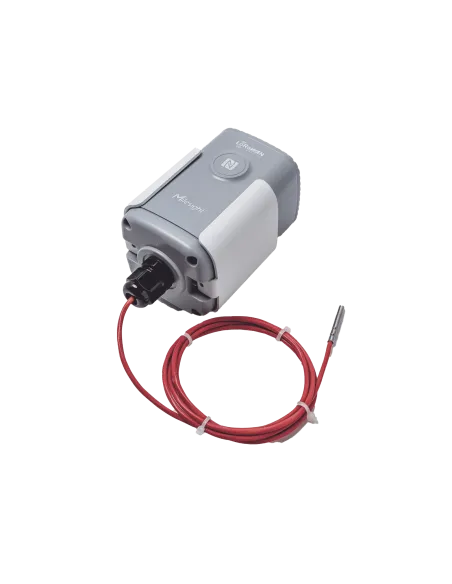

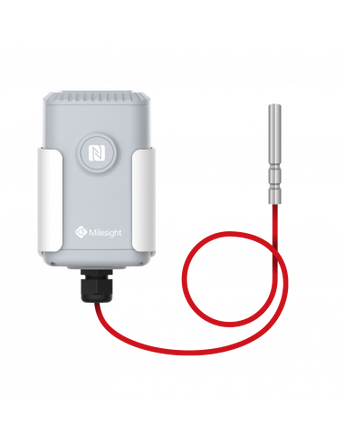

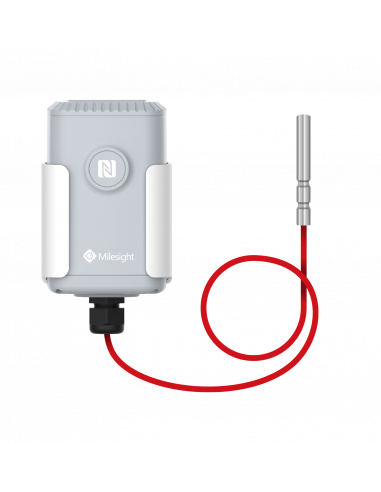

Milesight EM500-PT100 LoRaWAN Temperature Sensor (-200°C to +50°C)
Pickup available at NexGen Computing
Usually ready in 24 hours
Precision Monitoring for Extreme Cold Environments
Introducing the Milesight EM500-PT100, an industrial-grade LoRaWAN sensor engineered for ultra-low temperature monitoring. Designed for exceptional accuracy and resilience in harsh conditions, this sensor is the definitive solution for applications demanding precise thermal control, from cryogenic storage to pharmaceutical logistics. It utilizes a high-precision PT100 platinum resistance thermometer to deliver reliable temperature readings across an extensive range of -200°C to +50°C. Its robust, IP67-rated waterproof enclosure ensures long-term performance in the most challenging industrial and outdoor settings.
Key Features
- Ultra-Wide Temperature Range: Accurately measures temperatures from -200°C to +50°C, making it ideal for cryogenic and deep-freeze applications.
- High-Precision PT100 Probe: Employs a Class A platinum resistance thermometer for superior accuracy (±0.5°C) and long-term stability.
- LoRaWAN® Connectivity: Leverages LoRaWAN technology for long-range (up to 15 km in rural areas), low-power wireless data transmission, ensuring seamless integration with your IoT network.
- Extended Battery Life: Powered by a high-capacity 19000 mAh Li-SOCL2 battery, the sensor can operate for up to 10 years, minimizing maintenance and replacement costs.
- Rugged Industrial Design: Features a durable IP67-rated, UV-resistant enclosure, providing robust protection against water and dust ingress in harsh environments.
- Simple NFC Configuration: Quickly and easily configure the sensor on-site using a mobile application via NFC technology.
Applications
The EM500-PT100 is perfectly suited for a wide array of critical monitoring applications, including:
- Medical and pharmaceutical freezer monitoring
- Vaccine and laboratory sample storage
- Cold chain logistics and transportation
- Industrial process monitoring
- Food processing and storage facilities
Specifications Table
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | EU868/US915/AU915/KR920/AS923/CN470/RU864/IN865 |
| Tx Power | Up to 20 dBm |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Sensor Specifications | |
| Probe Type | PT100 Platinum Resistance Thermometer |
| Measurement Range | -200°C to +50°C |
| Accuracy | ±0.5°C |
| Resolution | 0.1°C |
| Connection Type | 3-wire connection |
| Physical Characteristics | |
| Power Supply | 19000 mAh Li-SOCL2 Battery (ER34615) |
| Battery Life | Up to 10 Years |
| Operating Temperature | Device: -30°C to +70°C |
| Ingress Protection | IP66/IP67 |
| Dimensions | 156.1 × 71 × 69.5 mm |
| Probe Cable Length | 1.5 m (Customizable) |
| Configuration | NFC (Near Field Communication) |
| Mounting | Wall or Pole Mount |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
