Milesight

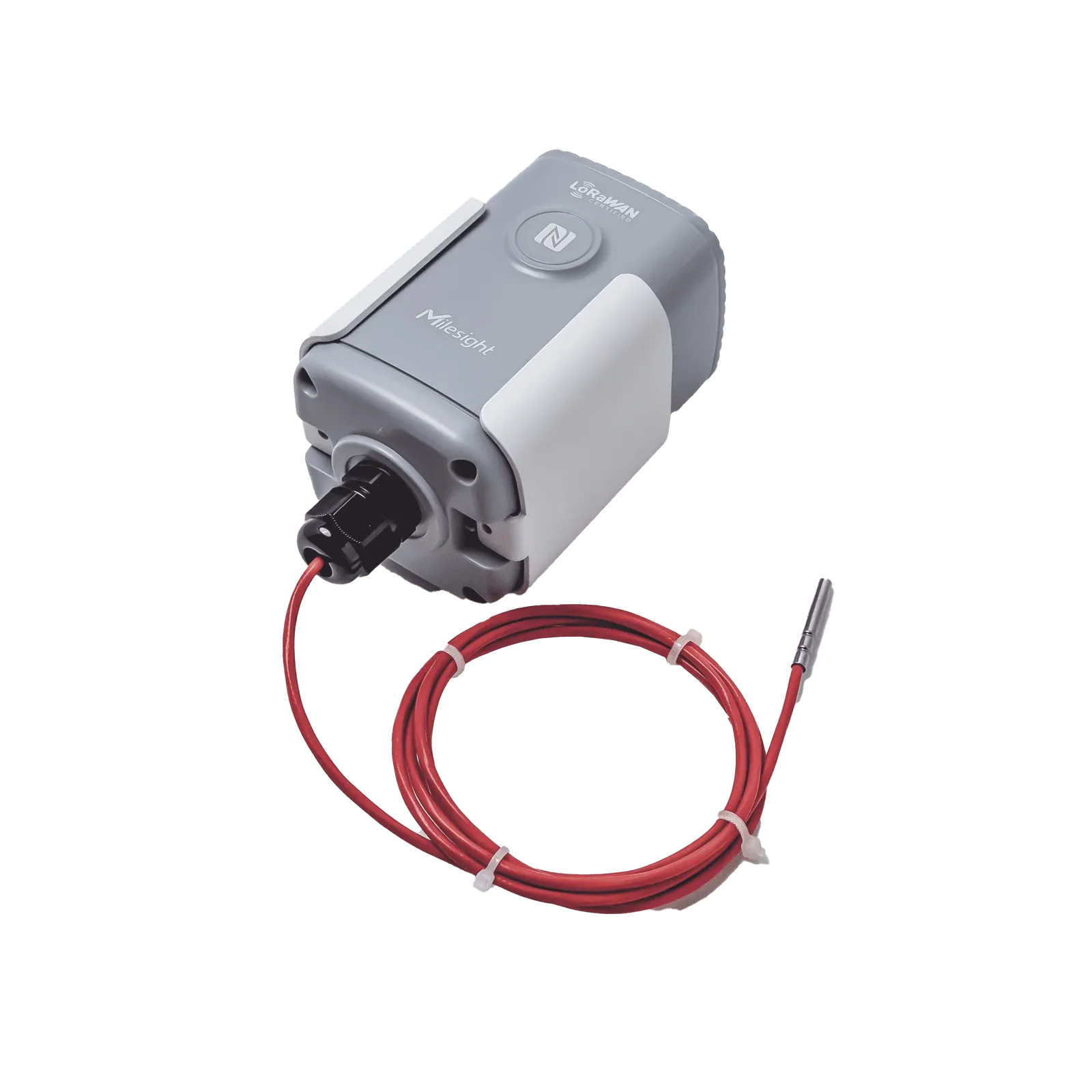

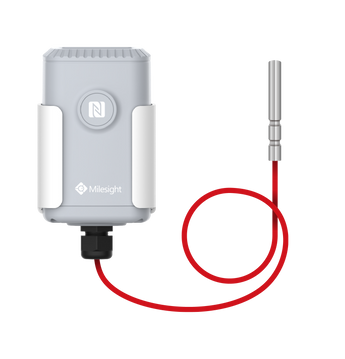

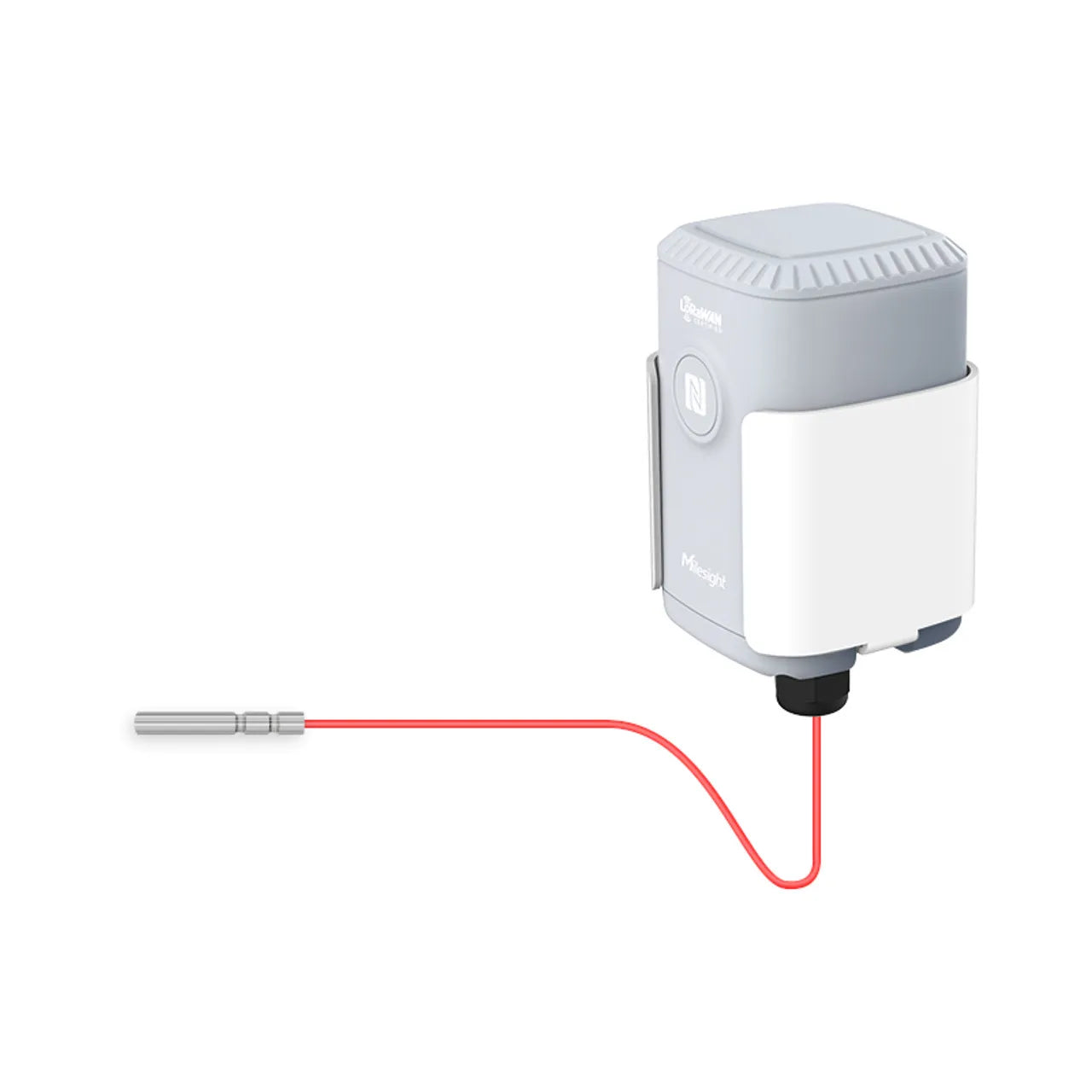

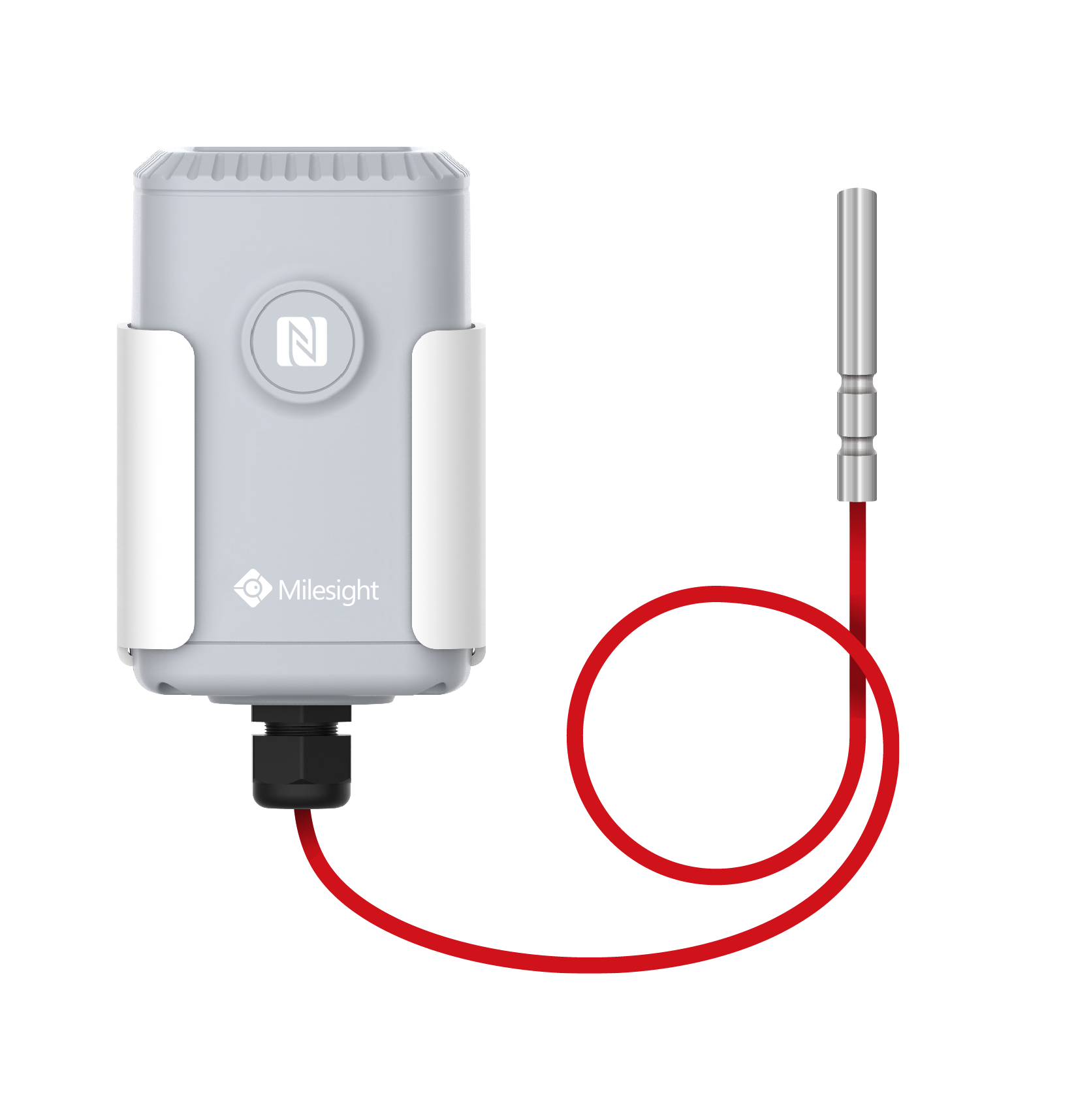

Milesight T500 Industrial LoRaWAN Temperature Sensor (-50°C to 500°C)
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Precision Temperature Monitoring for Demanding Industrial Applications
The Milesight T500 is a robust, high-precision industrial temperature sensor engineered for accurate and reliable measurements in extreme environments. It is specifically designed for monitoring a wide temperature range from -50°C to +500°C, making it the ideal solution for a variety of industrial processes, including manufacturing, industrial automation, and monitoring high-heat equipment. This sensor utilizes a PT100 platinum resistance thermometer to deliver stable and precise temperature readings. The 3-wire connection ensures high-precision data capture for critical applications.
Long-Range Wireless Connectivity with LoRaWAN
Featuring LoRaWAN® wireless technology, the T500 offers long-range data transmission of up to 10 km in line-of-sight conditions. This low-power communication protocol allows for an exceptional battery life of up to 10 years from its built-in 19000 mAh Li-SOCL2 battery, minimizing maintenance and replacement needs. The sensor is easily configurable via Near Field Communication (NFC) technology, allowing for quick and straightforward setup using a smartphone app.
Built for Harsh Environments
The T500 is constructed to withstand challenging industrial conditions. The main body of the sensor is housed in a rugged, IP67-rated waterproof enclosure, ensuring protection against dust and water ingress. The sensor probe itself has an IP30 rating. This durable design makes the T500 a dependable solution for even the most demanding remote or harsh environments. For seamless integration, it is compliant with standard LoRaWAN® gateways and network servers and can be managed through the Milesight IoT Cloud solution for remote data visualization and management.
Key Applications:
- Industrial Machine and Oven Monitoring
- Pipe and Boiler Temperature Monitoring
- Liquid or Gas Temperature Monitoring
- Medical or Laboratory Environments
Technical Specifications
| Wireless Transmission | |
| Technology | LoRaWAN® |
| Frequency | EU868 |
| Tx Power | 16dBm(868) |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP Class A |
| Sensor Specifications | |
| Sensor Type | PT100 Platinum Resistance Thermometer |
| Temperature Range | -50°C to +500°C |
| Accuracy | ±0.5°C |
| Resolution | 0.1°C |
| Connection Type | 3-wire connection |
| Physical Characteristics | |
| Power Supply | 19000 mAh Li-SOCL2 Battery (replaceable) |
| Battery Life | Up to 10 Years |
| Operating Temperature (Device) | -30°C to +70°C |
| Ingress Protection | IP67 (Main Body), IP30 (Probe) |
| Dimensions | 105.4 × 71 × 69.5 mm (sensor and cable not included) |
| Probe Length | 1.5 m (customizable) |
| Configuration | NFC |
| Mounting | Wall, DIN Rail, Pole Mounting |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
