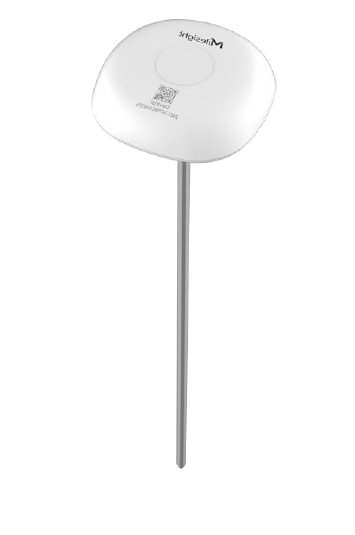

Milesight TS101 LoRaWAN Industrial Insertion Temperature Sensor
Pickup available at NexGen Computing
Usually ready in 24 hours
Rugged, High-Precision Temperature Monitoring for Demanding Environments
The Milesight TS101 is a robust, all-in-one insertion temperature sensor designed for accurate and reliable monitoring in challenging industrial and agricultural applications. This LoRaWAN®-enabled smart probe is ideal for measuring the internal temperature of bulk materials such as grain stacks, hay bales, compost piles, and tobacco. Its durable, food-grade construction and advanced features ensure long-term, maintenance-free operation.
Key Features:
- High-Accuracy Sensing: Equipped with a high-precision DS18B20 digital temperature sensor, the TS101 delivers an accuracy of ±0.5°C and a resolution of 0.1°C.
- Built for Harsh Conditions: The sensor features a rugged IP67 waterproof and IK10 impact-resistant enclosure, making it suitable for deployment in dusty, corrosive, and moisture-prone environments. The probe is made from 316 food-grade stainless steel and is resistant to phosphine corrosion.
- Long-Range Wireless Connectivity: Leveraging LoRaWAN® technology, the TS101 can transmit data up to 10 km in line-of-sight conditions, ensuring reliable communication even in large warehouses or agricultural fields.
- Extended Battery Life: A powerful 4000 mAh replaceable Li-SOCl2 battery provides up to 10 years of operation, minimizing maintenance needs.
- Onboard Data Storage: The device can store up to 1200 historical data records locally, with support for data retransmission to prevent data loss.
- Simple Configuration: NFC (Near Field Communication) allows for quick and easy configuration using a mobile app.
- Seamless Integration: Fully compatible with standard LoRaWAN® gateways and network servers like Milesight IoT Cloud, The Things Network (TTN), and ChirpStack.
Applications:
The Milesight TS101 is the perfect solution for temperature monitoring in:
- Agriculture (Haystacks, Grain Silos)
- Warehousing and Bulk Material Storage
- Compost and Waste Management
- Food Storage and Cold Chain Logistics
Technical Specifications
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Sensor Type | DS18B20 Digital Temperature Sensor |
| Detecting Range | -30°C to +70°C |
| Accuracy | ± 0.5°C |
| Resolution | 0.1°C |
| Software | |
| Configuration | NFC Configuration via Mobile App |
| Advanced Features | Data Storage (1200 entries), Data Retransmission, Abrupt Temperature Change Alarm |
| Physical Characteristics | |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery |
| Battery Life | Up to 10 Years |
| Operating Temperature | -30°C to +70°C |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| Material | Transceiver: ABS+PC (Food-Grade), Sensor Probe: 316 Stainless Steel |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
