Milesight FT101 LoRaWAN Field Tester
Pickup available at NexGen Computing
Usually ready in 24 hours
Revolutionize Your LoRaWAN Deployments

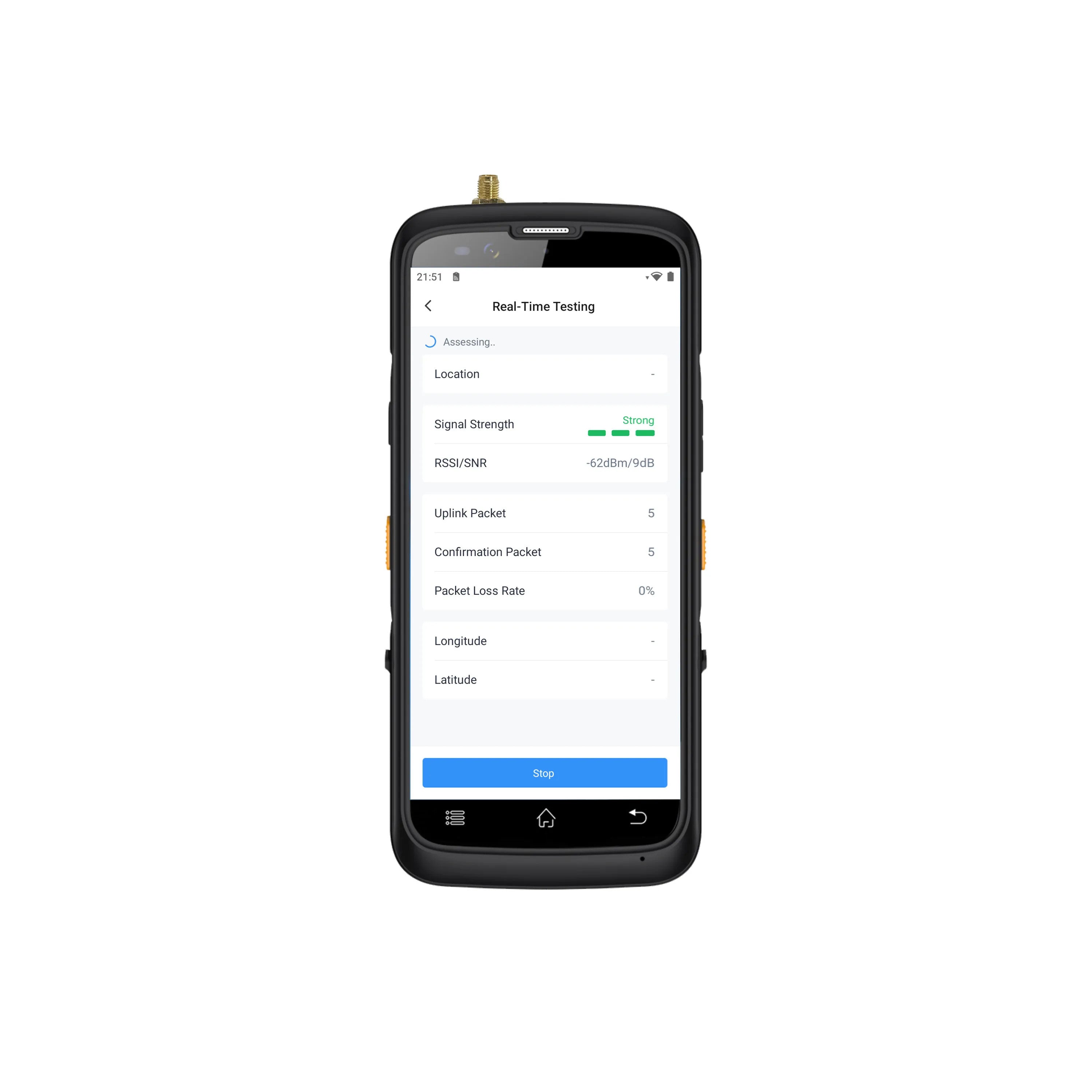

Introducing the Milesight FT101 LoRaWAN Field Tester, the ultimate all-in-one tool for network professionals and IoT deployers. This portable, feature-rich device is engineered to simplify and accelerate the process of deploying, optimizing, and maintaining LoRaWAN networks. With its intuitive 5.72-inch high-definition touchscreen, you can get real-time insights into crucial network metrics such as RSSI, SNR, and packet loss rate, allowing for immediate on-site analysis and decision-making.
Comprehensive Network Analysis in the Palm of Your Hand

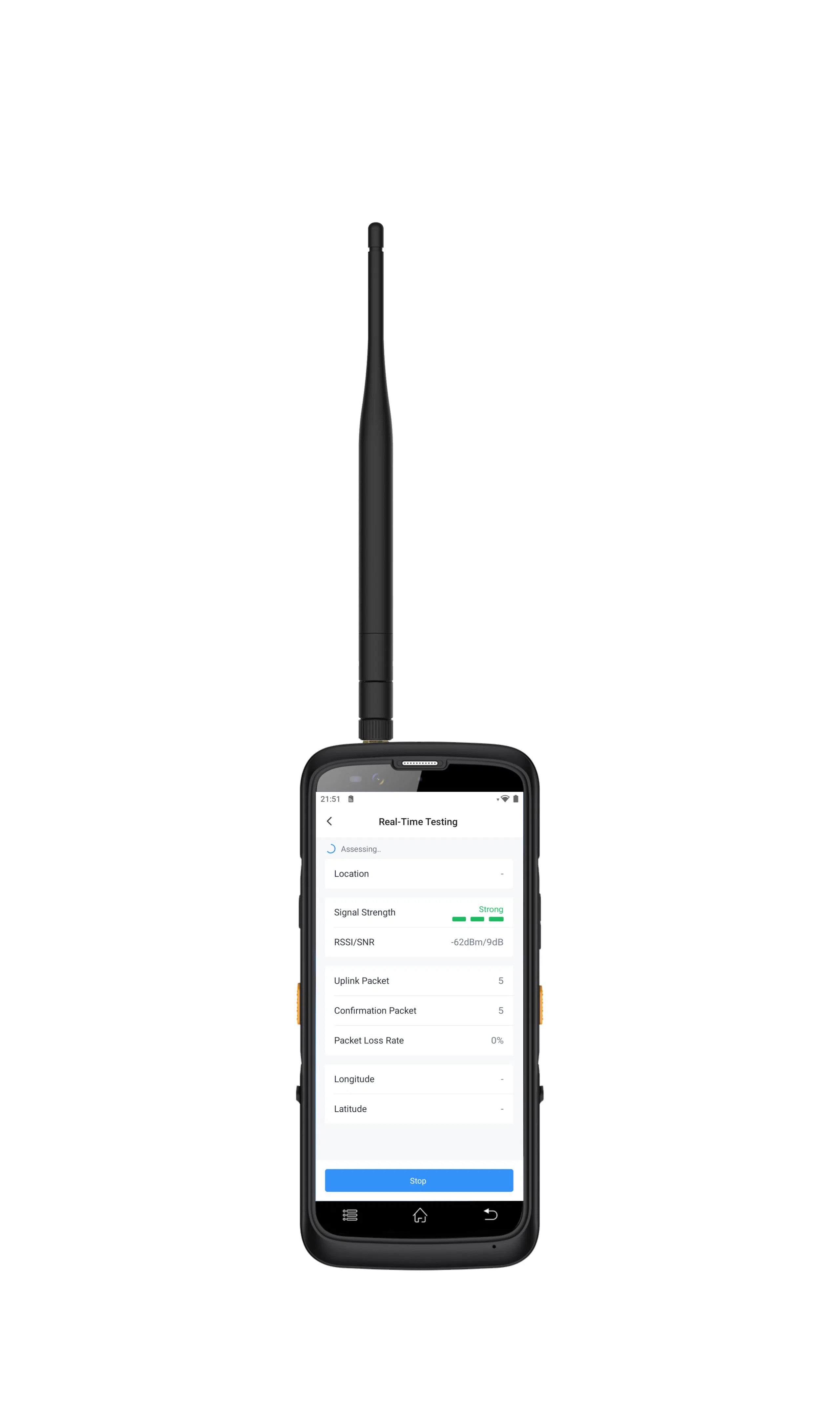

The Milesight Field Tester empowers you to verify gateway coverage, identify optimal locations for end-devices, and troubleshoot signal obstructions with unparalleled ease. Its support for global LoRaWAN® frequency bands, facilitated by interchangeable antennas, ensures you have a versatile tool for any deployment scenario worldwide. The integrated GNSS (GPS/Glonass/Beidou/Galileo) functionality precisely records the geographic location of each test point, enabling you to map network coverage and performance with high accuracy.
Powerful, Portable, and Built for the Field
Powered by an octa-core processor and running on Android 12.0, the FT101 delivers a smooth and responsive user experience. Its robust hardware includes 4GB of RAM and 64GB of internal storage, with the option to expand up to 256GB via a Micro SD card. A built-in 4300mAh rechargeable battery provides approximately 8 hours of continuous operation, ensuring it lasts through your workday. The convenience of a USB Type-C port allows for easy charging and data transfer. This indispensable tool is compatible with any standard LoRaWAN gateway and major network servers, making it a seamless addition to your existing infrastructure.
Technical Specifications
| Display | |
| Screen | 5.72-inch TP LCD Touch Screen |
| Resolution | 1440 x 720 Pixels |
| Hardware & System | |
| CPU | Octa-core MTK6762, 2 GHz |
| Memory | 4GB RAM + 64GB ROM |
| Operating System | Android 12.0 |
| Extendable Storage | 1 × Micro SD Slot, up to 256G |
| LoRaWAN® | |
| Channel | 1 |
| Antenna Connector | 1 × 50 Ω SMA Female Connector |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -137dBm@125kHz, SF=12 |
| Max Output Power | 22dBm (915 MHz) / 16dBm (868 MHz) / 19dBm (470 MHz) |
| Protocol | LoRaWAN® V1.0.3 |
| Interfaces | |
| Wi-Fi | IEEE 802.11 b/g/n (2.4 GHz), IEEE 802.11 a/n/ac (5 GHz) |
| Bluetooth | Bluetooth 4.0 (BLE) |
| GNSS | GPS/Glonass/Beidou/Galileo |
| NFC | Support ISO/IEC 14443A Protocol |
| USB | 1 x USB 3.0 Type-C Port |
| SIM Card Slot | 1 x Nano SIM |
| Physical Characteristics | |
| Power Supply | Built-in 4.3V/4300mAh Rechargeable Lithium Battery; 5V/2A by USB Type-C |
| Battery Life | Around 8 Hours |
| Operating Temperature | -10°C to 50°C |

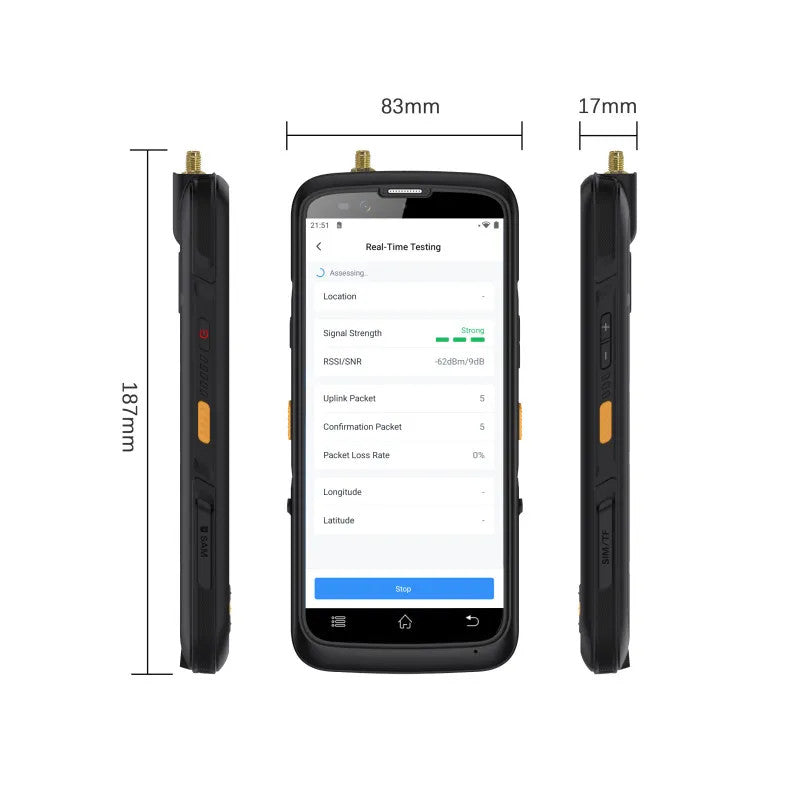

| Dimensions | 178 × 83 × 17 mm |
| Weight | 242 g (Without Antenna) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
