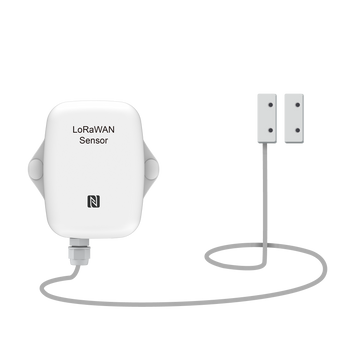

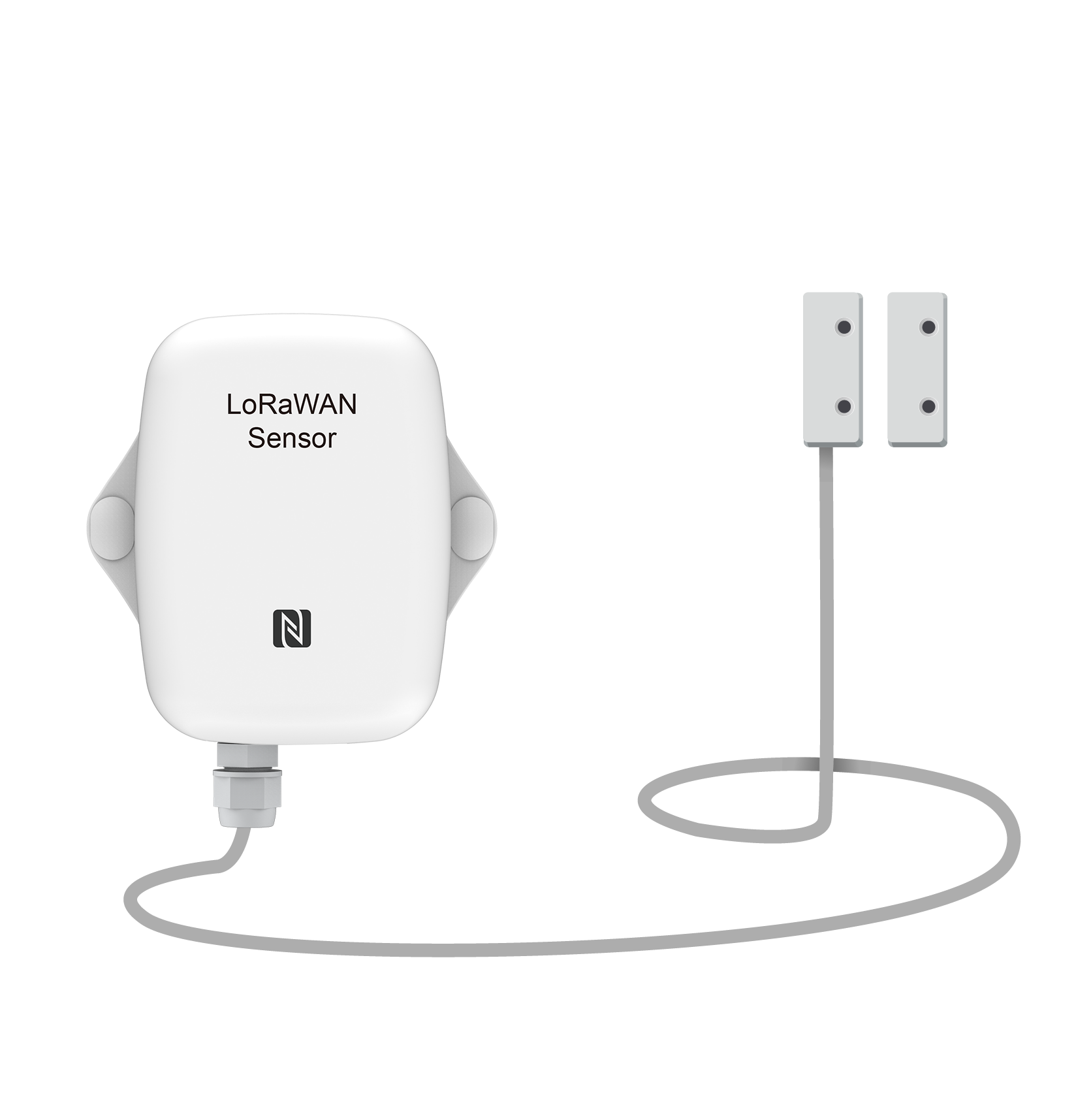

Milesight EM300-MCS LoRaWAN Magnetic Contact, Temperature, and Humidity Sensor
Pickup available at NexGen Computing
Usually ready in 24 hours
Rugged 3-in-1 Monitoring for Demanding Environments
Introducing the Milesight EM300-MCS, a robust LoRaWAN® sensor designed for comprehensive monitoring in the most challenging conditions. This compact device goes beyond simple security by integrating three essential sensors: a high-sensitivity magnetic contact switch for doors and windows, a precise temperature sensor, and a reliable humidity sensor. Built for outdoor and industrial applications, its IP67 waterproof and UV-resistant enclosure ensures long-term performance, providing real-time alerts and environmental data to your fingertips. Ideal for smart buildings, warehouse management, and remote facility oversight, the EM300-MCS offers a powerful, all-in-one solution for security and environmental awareness.
Key Features
- Triple Sensing Capability: Monitors door/window open/close status while providing accurate ambient temperature and humidity readings.
- Ultra-Long Range Transmission: Leverages LoRaWAN® technology to transmit data up to 10 km in line-of-sight conditions, ensuring connectivity for even the most remote assets.
- Industrial-Grade Durability: Features an IP67-rated housing, making it completely dust-tight and waterproof for reliable operation in harsh environments.
- Extended Battery Life: Powered by a high-capacity 4000 mAh Li-SOCL2 battery, it can operate for over 5 years, with an optional second battery to extend life to 10 years.
- Simple NFC Configuration: Quickly and easily configure the device in the field using Near Field Communication (NFC) with a smartphone or PC.
- Onboard Data Storage: Locally stores up to 3,000 historical records and supports data retransmission to prevent data loss during network outages.
Technical Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | Up to 20 dBm |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP Class A |
| Sensing | |
| Magnetic Contact | |
| Detection Distance | 20 - 30 mm |
| Cable Length | 260 mm |
| Temperature | |
| Range | -30°C to +70°C |
| Accuracy | ±0.3°C (0°C to 70°C), ±0.6°C (-30°C to 0°C) |
| Resolution | 0.1°C |
| Humidity | |
| Range | 0% to 100% RH |
| Accuracy | ±3% (10-90% RH), ±5% (other ranges) |
| Resolution | 0.5% RH |
| Physical Characteristics | |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCL2 Battery (extendable to 2) |
| Operating Temperature | -30°C to +70°C |
| Ingress Protection | IP67 |
| Dimensions | 88 × 87 × 27 mm |
| Mounting | Wall (screws or 3M adhesives) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
