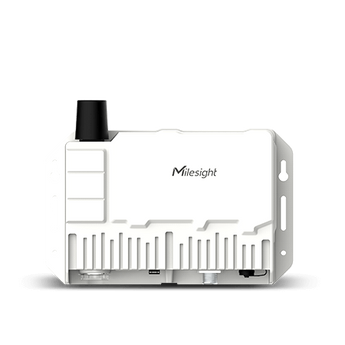

Milesight SG50 Solar LoRaWAN Gateway with 4G LTE
Pickup available at NexGen Computing
Usually ready in 24 hours
Unlock Remote IoT Deployments with Sustainable Power
Introducing the Milesight SG50, an ultra-low-power, self-sustaining Solar LoRaWAN® Gateway designed for reliable, long-term operation in the most challenging outdoor and off-grid environments. This all-in-one solution is engineered for applications where power is unavailable or impractical, making it ideal for industries like oil and gas, mining, forestry, smart agriculture, and remote infrastructure monitoring. With its integrated solar panel and high-capacity rechargeable battery, the SG50 ensures continuous, independent operation, even providing up to 4 days of autonomy without sunlight.
Robust, High-Performance Connectivity
Built to withstand the elements, the SG50 features a rugged, IP67-rated cast aluminum enclosure, ensuring protection against harsh environmental conditions. At its core, the gateway is powered by the advanced Semtech SX1302 LoRa chip and a high-performance dual-core processor, enabling it to handle a higher volume of traffic with lower power consumption. It supports 8 channels and can connect with over 2000 end-nodes within a line-of-sight range of up to 15 km. For reliable data backhaul, the gateway is equipped with a 4G LTE cellular module, ensuring your data is transmitted seamlessly from remote locations.
Simplified Deployment and Management
The SG50 is designed for rapid and straightforward deployment. Its all-in-one design, complete with a solar panel and mounting accessories, simplifies installation. Configuration is made easy via a local Wi-Fi access point, and built-in GPS provides essential location information for simplified remote management and deployment. The gateway offers high compatibility with mainstream network servers like The Things Stack and ChirpStack, and includes an embedded network server for easy integration.
Key Features:
- Solar Powered & Built-in Battery: Enables fully autonomous, wire-free deployment in remote locations.
- 4G LTE Backhaul: Provides reliable and independent network connectivity.
- IP67 Weatherproof: Encased in a durable cast aluminum housing for protection against extreme conditions.
- High Capacity: Based on the SX1302 chip, it supports 8 channels and over 2000 sensor nodes.
- Extended Autonomy: Operates for up to 4 days without direct sunlight, ensuring continuous service.
- Integrated GPS: For precise location tracking and simplified asset management.
- Broad Compatibility: Works seamlessly with mainstream LoRaWAN® network servers.
Technical Specifications
| Hardware System | |
| CPU | Dual-core 240MHz, 32-bit Xtensa® LX7 |
| Memory | 8 MB PSRAM |
| Flash | 16 MB |
| LoRaWAN® | |
| Antenna Connector | 1 × 50 Ω N-Female External Connector |
| Channels | 8 (Half-duplex) |
| Frequency Bands | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140 dBm @292bps |
| Max Tx Power | 27 dBm |
| Protocol | V1.0.3 Class A/Class C |
| Cellular Interface | |
| Network | 4G LTE (CAT 1)/GSM |
| Antenna | 1 × External Antenna (Shared with GPS) |
| SIM Slot | 1 (Nano SIM-4FF) |
| Other Interfaces | |
| Wi-Fi | IEEE 802.11b/g/n, 2.4 GHz (For configuration only) |
| GNSS | GPS |
| Reset Button | 1 × Reset/Wi-Fi Button |
| Power Supply & Consumption | |
| Power Supply | Solar Panel (45W default) & Built-in Rechargeable Battery (25Ah) |
| Battery Life | Up to 4 days without sunlight |
| Power Consumption | Typical 0.8W |
| Physical Characteristics | |
| Ingress Protection | IP67 |
| Housing Material | Metal cast aluminum |
| Dimensions | 250 × 157.5 × 46 mm (9.84 x 6.20 x 1.81 in) |
| Weight | 1.755 kg (with batteries) |
| Operating Temperature | -30°C to +70°C (-22°F to +158°F) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
