Milesight

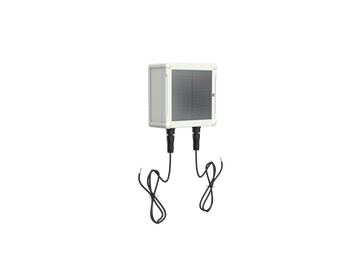

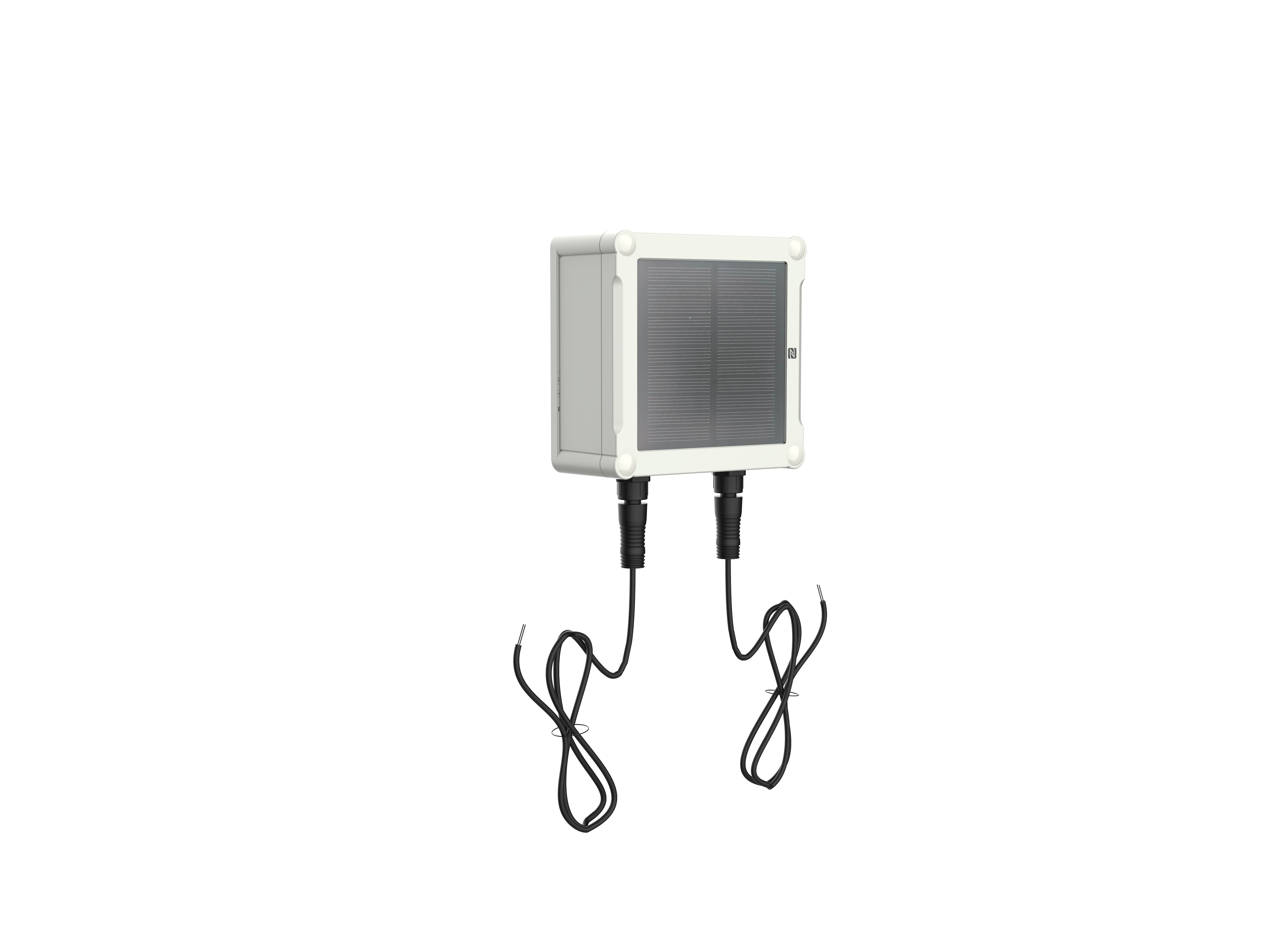

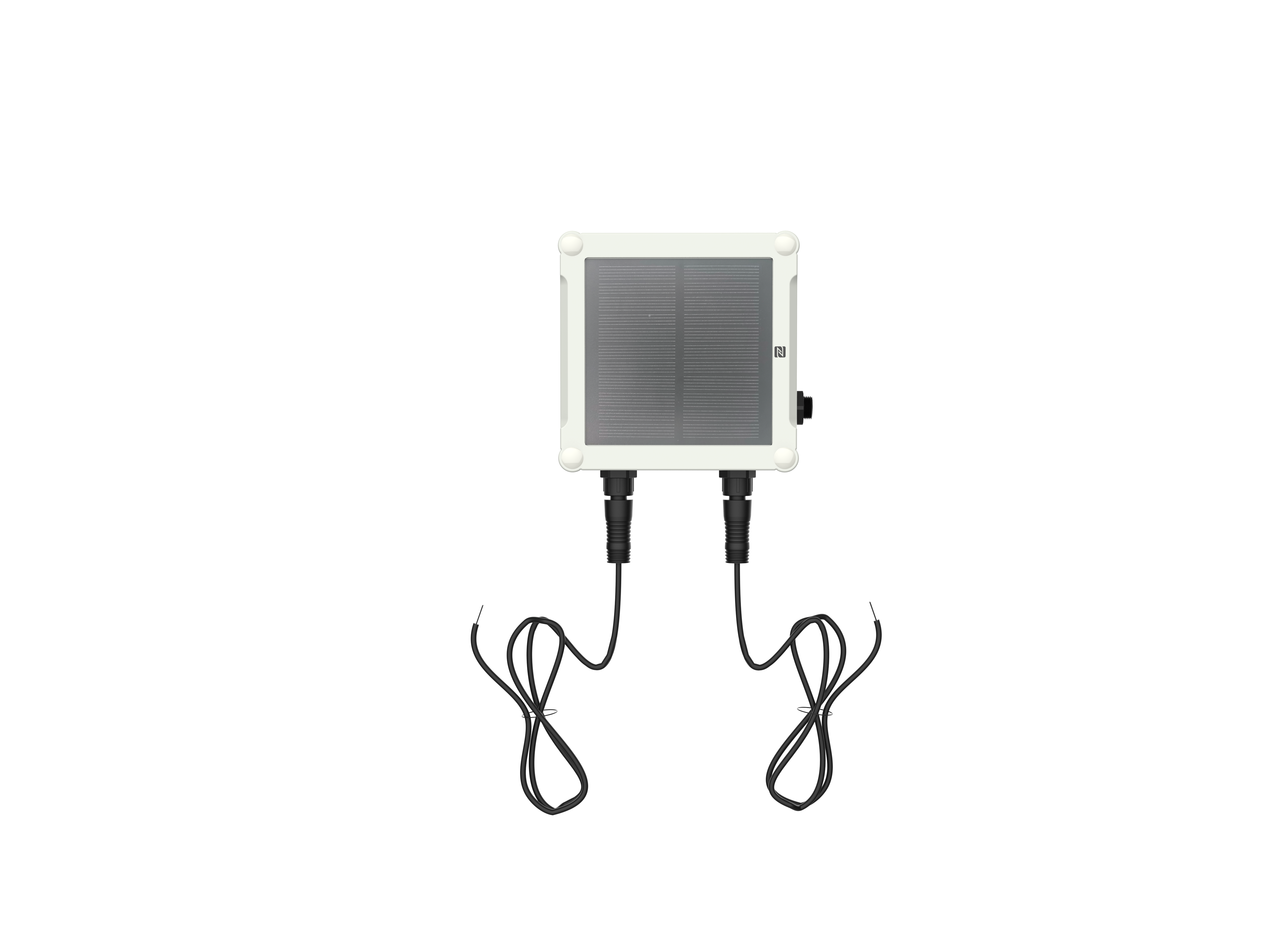

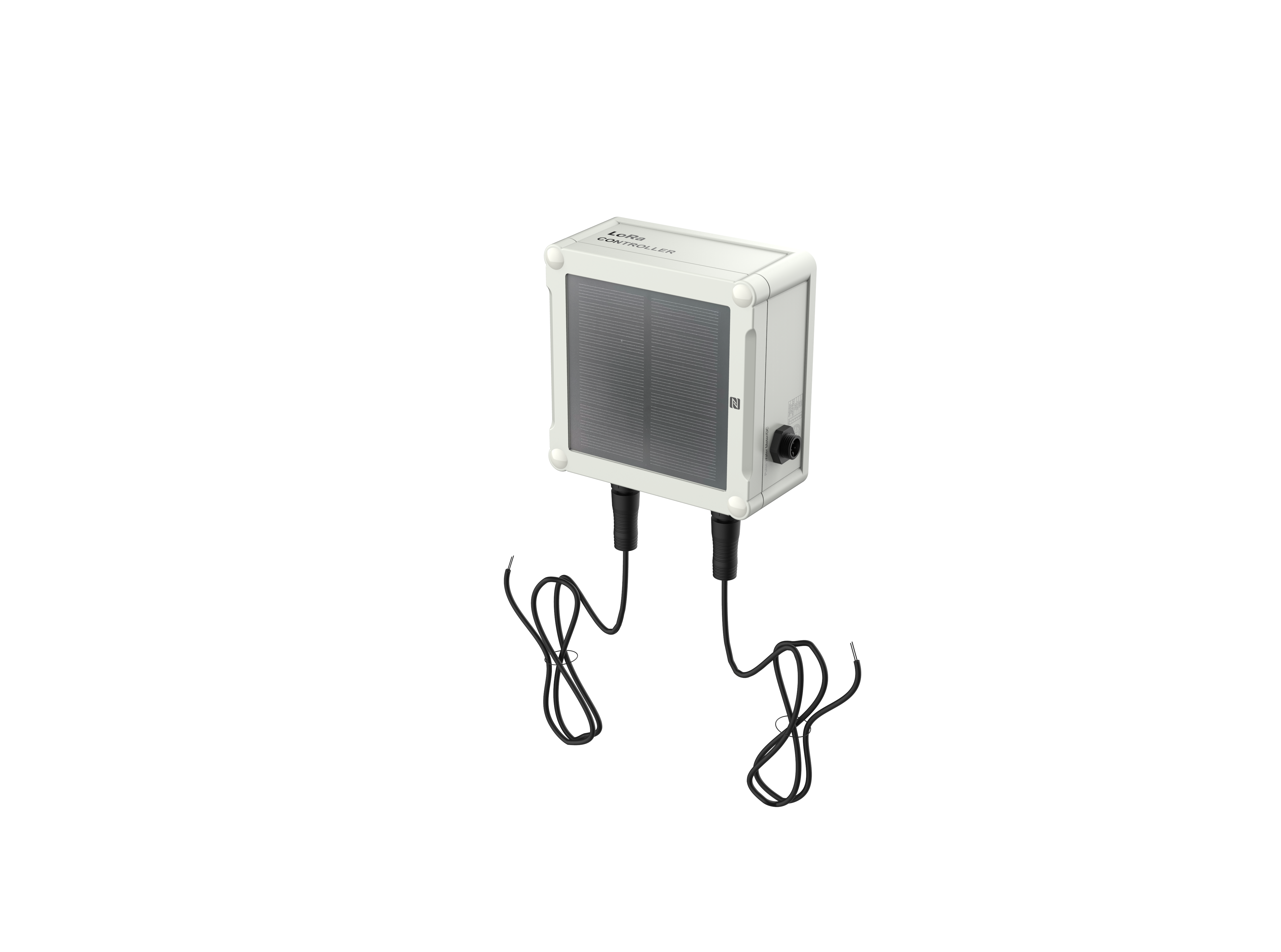

Milesight UC511 Solar-Powered LoRaWAN Solenoid Valve Controller
Pickup available at NexGen Computing
Usually ready in 24 hours
Revolutionize Your Irrigation with Smart, Remote Control
Introducing the Milesight UC511, a robust LoRaWAN Solenoid Valve Controller designed for intelligent, remote management of DC latching solenoids. Ideal for smart agriculture, landscape irrigation, and industrial water control, this device empowers you to automate and optimize water usage with precision. Powered by a high-efficiency solar panel and long-life rechargeable batteries, the UC511 ensures long-term, uninterrupted operation even in the most demanding outdoor environments. Its IP67 waterproof enclosure and durable M12 connectors provide maximum protection against dust and water, guaranteeing reliable performance in any weather.
Advanced Features for Ultimate Control
The UC511 is engineered for flexibility and performance. It features two solenoid interfaces compatible with standard DC latching solenoids and two GPIO interfaces for monitoring water flow or valve status. With the power of LoRaWAN technology, it offers a remarkable communication range of up to 15 km in line-of-sight conditions. Configuration is made simple via NFC, allowing for quick setup and deployment using a mobile app. You can control valves locally through the app or remotely via LoRaWAN commands, with support for multicast for bulk control operations. The device can also store up to 1000 historical records, ensuring no data is lost and enabling retransmission when needed.
Key Benefits:
- Solar Powered & Long Battery Life: Equipped with a 1.6W solar panel and two 2550 mAh rechargeable batteries for sustainable, long-term operation.
- Dual Valve & Sensor Interface: Control up to two solenoid valves and connect two additional sensors via GPIO interfaces for comprehensive monitoring.
- Rugged & Waterproof: IP67-rated housing ensures the controller is fully protected against water and dust for reliable outdoor deployment.
- Long-Range & Reliable Communication: Utilizes LoRaWAN for deep penetration and a communication range of up to 15 km.
- Effortless Configuration: Quickly configure the device in seconds using Near Field Communication (NFC) technology.
- Flexible Control: Supports remote control via LoRaWAN commands and local control through a mobile app, including time and flow-based strategies.
Technical Specifications
| Feature | Specification |
|---|---|
| Wireless Transmission | |
| Technology | LoRaWAN® |
| Frequency | EU868 |
| Tx Power | 16dBm (868MHz) |
| Sensitivity | -137dBm @300bps |
| Working Mode | OTAA/ABP Class A, Class B, Class C |
| Antenna | Internal |
| Interfaces | |
| Solenoid | 2 × DC Latching Solenoid Interfaces (5/9/12 VDC Switchable) |
| Digital Input | 2 × GPIO (for Dry Contact or Pulse Counter) |
| Configuration | 1 × NFC Port |
| Power Supply | |
| Primary Power | Solar Panel (5V, 1.6W) |
| Backup Battery | 2 × 2550 mAh Rechargeable Batteries |
| Physical Characteristics | |
| Ingress Protection | IP67 |
| Dimensions | 116 × 116 × 45.5 mm |
| Operating Temperature | -20°C to +60°C |
| Mounting | Wall or Pole Mount |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
