Milesight LoRaWAN Tilt Sensor
Pickup available at NexGen Computing
Usually ready in 24 hours
Advanced Tilt and Angle Monitoring for Critical Applications

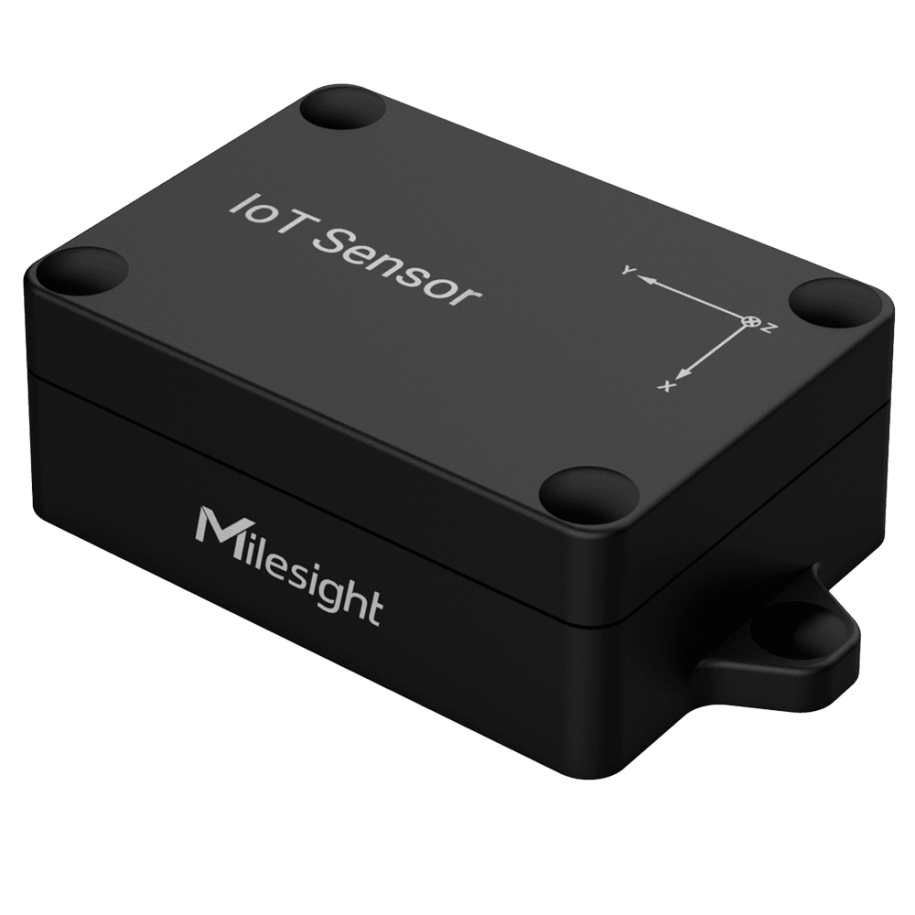

The Milesight Tilt Sensor is a high-precision device designed for real-time angle measurement and asset movement detection. It leverages a built-in 3-axis MEMS accelerometer to accurately measure the X, Y, and Z tilt angles of any object, providing immediate alerts when movements exceed predefined thresholds. This sensor is an ideal solution for a wide range of applications, including structural health monitoring, landslide detection, pole lean detection, and ensuring the stability of construction machinery. With its compact and robust design, it can be easily installed on various surfaces to provide critical data for preventative maintenance and safety.
Seamless Long-Range Communication with LoRaWAN
Engineered for the Internet of Things (IoT), this sensor is fully compatible with standard LoRaWAN gateways. This allows for ultra-wide-distance wireless transmission of up to 15 km in rural areas and 2 km in urban environments, ensuring reliable data communication even through thick walls. The low-power consumption technology provides a long battery life of up to 10 years, making it a truly 'set and forget' solution for long-term monitoring. Configuration is made simple through a mobile App via NFC, allowing for quick and easy setup.
Rugged and Reliable for Harsh Environments
The Milesight Tilt Sensor is built to withstand challenging conditions with an IP67 waterproof enclosure, ensuring protection against dust and water ingress. Its durable construction makes it suitable for both indoor and outdoor applications. An anti-theft design on the back cover provides a secure and firm installation, giving you peace of mind that your monitoring system is protected.
Key Features:
- Real-Time Tilt & Angle Monitoring across 3 axes (X, Y, Z).
- High-precision MEMS accelerometer for reliable and accurate measurements.
- Flexible and customizable threshold condition settings for tailored alerts.
- Long-range LoRaWAN wireless transmission for remote data access.
- Ultra-low power consumption with a battery life of up to 10 years.
- IP67 rated waterproof and rugged enclosure for harsh environments.
- Easy one-touch configuration via NFC technology.
- Compatible with Milesight IoT Cloud for remote monitoring on any device.
| Wireless Transmission | |
| Technology | LoRaWAN |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Axis | X, Y, Z |
| Range | -90° to +90° |
| Accuracy | ±1° |
| Resolution | 0.01° |
| Physical Characteristics | |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl2 Batteries |
| Battery Life | ≥3 Years (10min reporting interval, SF10) |
| Operating Temperature | -30°C to +60°C |
| Ingress Protection | IP67 |
| Configuration | NFC Configuration via Mobile App |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
