Milesight

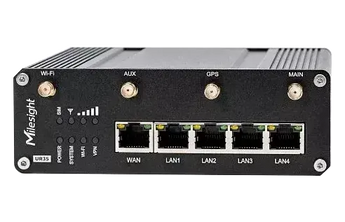

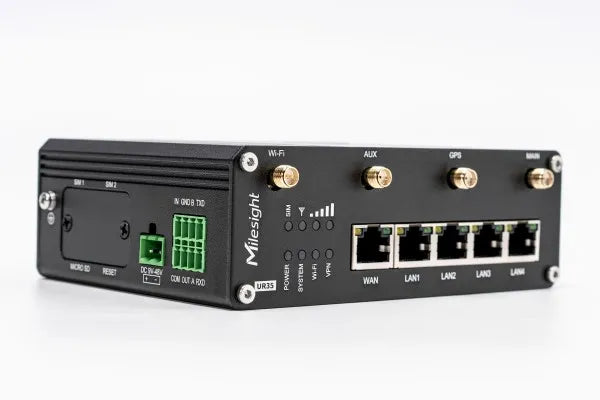

Milesight UR35 Pro Industrial 4G LTE Router with PoE, Wi-Fi & GPS
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust, Mission-Critical Connectivity for Industrial IoT
The Milesight UR35 is a high-performance and cost-effective industrial cellular router engineered for a vast range of M2M and IoT applications. This specific Pro model is fully equipped with 4G LTE, Power over Ethernet (PoE), Wi-Fi, and GPS, providing a secure, reliable, and feature-rich solution for connecting your critical remote assets. Its ruggedized design ensures maximum uptime even in the most demanding environments.
Key Features:
- Uninterrupted Network Access: Features global 4G LTE CAT4 and 3G network support with dual SIM card slots for redundant carrier connections and automated failover, ensuring continuous connectivity.
- Integrated PoE+ Ports: Equipped with 5 x 10/100 Mbps Ethernet ports, including 4 ports that function as 802.3 af/at Power over Ethernet (PoE) PSE, capable of supplying power to connected devices like IP cameras, sensors, and VoIP phones.
- Versatile Wireless Connectivity: Includes high-speed 802.11b/g/n Wi-Fi that can be configured as an Access Point (AP) or Client, alongside a dedicated high-precision GPS and GLONASS module for real-time location tracking and monitoring.
- Industrial-Grade Durability: Housed in a rugged IP30-rated metal enclosure and built with industrial-grade components, the UR35 operates reliably in extreme temperatures ranging from -40°C to +70°C.
- Advanced Security & Protocols: Supports a wide range of secure VPN tunnels including OpenVPN, IPsec, GRE, and L2TP, along with a robust firewall to protect your critical data. It also supports protocols like Modbus bridging, SNMP, and TR-069 for seamless integration and management.
- Rich Interfaces for Legacy & Modern Devices: Provides essential industrial interfaces including one RS232 and one RS485 serial port, plus a digital I/O (DI/DO) for connecting to a wide array of field equipment.
Comprehensive Specifications
| Feature | Specification |
|---|---|
| Hardware System | |
| CPU | 528 MHz, 32-bit ARM Cortex-A7 |
| Memory | 128 MB DDR3 RAM |
| Flash Memory | 128 MB Flash |
| Cellular Interface | |
| Network | 4G LTE (Cat 4) / 3G WCDMA / 2G GSM |
| SIM Slots | 2 (Mini SIM-2FF) |
| Antenna Connector | 2 x 50 Ω SMA Female |
| Ethernet Interface | |
| Ports | 5 x 10/100 Mbps (1 WAN + 4 LAN) |
| PoE PSE | 4 x 802.3af/at on LAN Ports |
| Wi-Fi Interface | |
| Standards | IEEE 802.11b/g/n |
| Modes | AP and Client mode |
| Antenna Connector | 1 x 50 Ω RP-SMA Female |
| GPS | |
| Technology | GPS, GLONASS |
| Antenna Connector | 1 x 50 Ω SMA Female |
| Interfaces | |
| Serial Ports | 1 x RS232 + 1 x RS485 |
| Digital I/O | 1 x DI + 1 x DO |
| Power Supply | |
| Power Input | 9-48 VDC (48V required for PoE) |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Housing | Metal |
| Dimensions | 135 x 100 x 45 mm |
| Mounting | Desktop, Wall or DIN Rail Mounting |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
