Mimosa

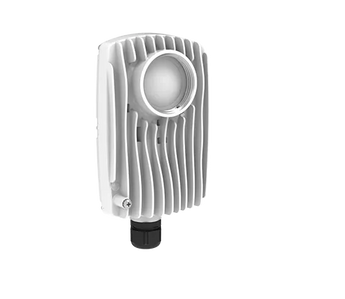

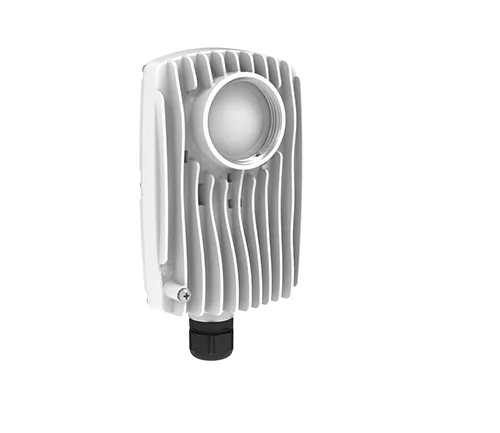

Mimosa C6x Lite Modular 6GHz Radio for PTP & PTMP Links
Pickup available at NexGen Computing
Usually ready in 24 hours
Next-Generation Speed and Unmatched Versatility
Introducing the Mimosa C6x Lite Edition, the new value leader in fixed wireless connectivity. Engineered for performance and cost-effectiveness, this modular radio is the ideal workhorse for scalable broadband deployments. Achieve gigabit-class speeds for backbone and backhaul links with up to 1.0 Gbps in Point-to-Point (PTP) mode and deliver exceptional service to multiple clients with up to 750 Mbps in Point-to-Multipoint (PTMP) deployments. The C6x Lite operates on the latest 6 Series platform, utilizing the 5.15 - 6.425 GHz frequency range and streamlined 80 MHz channel operation for dependable performance in diverse environments.
Modular Design for Ultimate Flexibility
Adapt to any deployment scenario with Mimosa's innovative modular antenna system. The C6x Lite features a native 8 dBi antenna for short-range links and is compatible with Mimosa's N5-X series of twist-on antennas. Easily upgrade your gain from 12 dBi up to 30 dBi, ensuring optimal performance over short-to-long range distances. This flexibility allows you to standardize on a single radio and scale your network as needed, simplifying inventory and installation.
Built to Endure the Harshest Conditions
Deploy with confidence in any climate. The Mimosa C6x Lite is built with a rugged, die-cast aluminum chassis and carries a robust IP67 rating, ensuring it is completely protected against dust and water ingress. This ultra-rugged design, combined with advanced interference reduction technology, guarantees reliable, long-term operation even in the most challenging outdoor environments.
Technical Specifications
| Performance | |
| Max Throughput (PTP) | 1.0 Gbps IP aggregate |
| Max Throughput (PTMP) | 750 Mbps IP aggregate |
| Wireless Protocols | Mimosa SRS, WiFi Interop |
| Radio | |
| MIMO & Modulation | 2x2:2 MIMO, up to 1024-QAM |
| Bandwidth | 80 MHz |
| Frequency Range | 5150 – 6425 MHz |
| Max Output Power | 27 dBm |
| Antenna | |
| Integrated Antenna | 8 dBi (native) |
| External Antenna Options | Supports modular N5-X twist-on antennas (12, 16, 20, 25, 30 dBi) |
| RF Connector | Mimosa N5-X Twist-on |
| Power | |
| Max Power Consumption | 20 W |
| Power Method | Passive PoE (24V) |
| Physical | |
| Dimensions | 175mm (H) x 70mm (W) x 61mm (D) |
| Weight | 0.7 kg (1.54 lbs) |
| Enclosure | Die-cast Aluminum |
| Mounting | Dual-pole strap capable |
| Networking Interface | 1x 10/100/1000-BASE-T |
| Environmental | |
| IP Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Management & Regulatory | |
| Management | MMP support; SNMPv2c/v3; Syslog; HTTPS; HTML 5 based Web GUI; IPv4 and IPv6 |
| Security | AES, RADIUS, 802.1x authorization |
| QoS | Supports 4 user-configurable QoS levels |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
