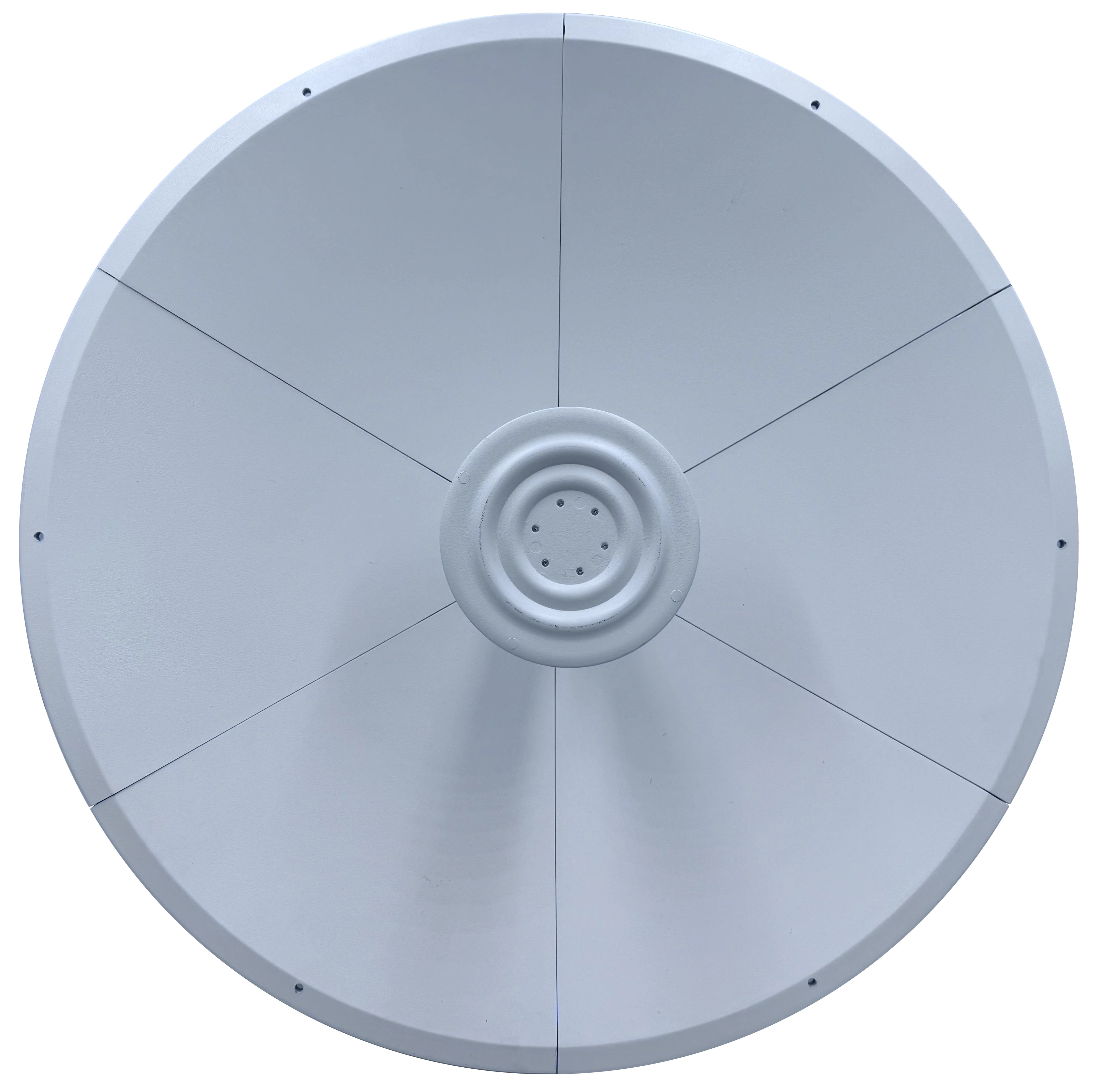

Mimosa N5-X30 30dBi Twist-On Dish Antenna
Pickup available at NexGen Computing
Usually ready in 24 hours
Maximize Your Network's Reach and Reliability
Achieve superior long-distance wireless links with the Mimosa N5-X30, a high-performance 30 dBi dish antenna designed for ultimate flexibility and performance. Engineered for seamless integration with Mimosa's B5x, C5x, and C6x radios, this antenna is the premier choice for Point-to-Point (PTP) and Point-to-Multipoint (PTMP) applications. Its innovative twist-on mounting system eliminates the need for RF cables, ensuring the lowest possible loss and quickest installation time.
Engineered for Performance in Harsh Environments
The N5-X30 operates over an extended frequency range of 4.9–6.4 GHz, allowing you to escape interference and utilize cleaner spectrum for more reliable connections. Constructed from durable aluminum with a collapsible design, this 2-foot dish is both rugged and easy to transport. It features a high front-to-back ratio of 35 dB and excellent port-to-port isolation, significantly reducing interference and ensuring a stable, high-throughput signal. With DC grounding for lightning protection and a design built to withstand tough weather, the N5-X30 is built for dependability.
Unmatched Versatility and Simplicity
This antenna offers dual-polarization, supporting Vertical/Horizontal or ±45° slant configurations to provide deployment flexibility and combat RF noise. The precision mounting bracket allows for fine elevation and azimuth adjustments, simplifying the alignment process for optimal link performance. Whether you're a service provider extending your network or an enterprise deploying a backhaul link, the N5-X30 delivers the performance, reliability, and ease of use required for modern wireless networks.
Technical Specifications
| Electrical | |
|---|---|
| Frequency Range | 4900–6400 MHz |
| Gain | 30 dBi |
| Polarization | Dual-Linear (V/H or ±45°) |
| Azimuth Beamwidth (3dB) | 5° |
| Elevation Beamwidth (3dB) | 5° |
| Front-to-Back Ratio | 35 dB |
| Port-to-Port Isolation | 30 dB |
| Impedance | 50 Ohms |
| Max Input Power | 50W |
| Lightning Protection | DC Grounded |
| Physical | |
| Dish Diameter | 600 mm (23.62") |
| Dimensions (H x W) | 330.2 mm x 600 mm (13" x 23.62") |
| Weight | 6.5 kg (14.33 lbs) |
| Mounting | Heavy-duty U-bolt bracket |
| Mounting Mast Diameter | 30 mm - 80 mm (1.18" - 3.15") |
| Environmental | |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Compatibility | |
| Compatible Radios | Mimosa B5x, C5x, C6x |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
