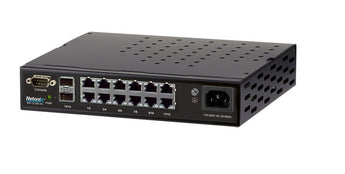

Netonix 12-Port Managed PoE Switch 24V-48V AC PoE + 2SFP Uplink Ports 250W | NTX-WS-12250-AC
Pickup available at NexGen Computing
Usually ready in 24 hours
Engineered for the Edge: Robust, Reliable Power and Performance
The Netonix WISP Switch™ WS-12-250-AC is meticulously engineered for the Wireless Internet Service Provider (WISP) industry, delivering unparalleled performance in even the most demanding environments. Housed in a rugged, industrial-grade chassis, this switch is built to withstand an extended operating temperature range from -25 to 55°C, ensuring reliable operation where other switches fail. It features a powerful, yet intuitive user interface that provides all the essential software features a WISP needs for complete control over their network.
Unmatched High-Power Passive PoE
This switch is a powerhouse, featuring 12 Gigabit PoE ports and a substantial 250W power budget. It stands out as the only switch on the market capable of delivering 1.5A of 24V or 48V on all four pairs (24VH and 48VH), making it perfect for high-power devices like Ubiquiti airFiber and Mimosa radios. Each passive PoE port is equipped with current sensors for real-time monitoring, a unique feature that provides enhanced management and troubleshooting capabilities. You have granular control to power a wide range of equipment with configurable 24V, 48V, 24VH, and 48VH PoE outputs per port.
Advanced Management & Connectivity
Beyond its robust power delivery, the WS-12-250-AC is a fully managed switch with a comprehensive suite of software features. It supports advanced functionalities including VLAN (802.1Q), Spanning Tree (STP/RSTP/MSTP), SNMP monitoring, SMTP alerts, bandwidth limiting, and port scheduling. For high-speed backbone connections, two SFP uplink ports provide fiber flexibility. Manufactured in North America, this switch is designed for desktop, wall, or optional rack/DIN rail mounting, offering versatile installation for any deployment scenario.
Technical Specifications
| Manufacturer | Netonix |
| Model | WS-12-250-AC |
| Ethernet Ports | (12) 10/100/1000 Mbps Gigabit RJ45 Ports |
| SFP Ports | (2) 1 Gbps SFP Uplink Ports |
| Total Non-Blocking Line Rate | 14 Gbps |
| Power Input | 110-120 / 210-230 VAC |
| Max. Power Consumption | 250 Watts |
| Passive PoE Output (Per Port) | 24V 1A (Pins 4,5+ / 7,8-) 48V 1A (Pins 4,5+ / 7,8-) 24VH 2A (Pins 1,2,4,5+ / 3,6,7,8-) 48VH 2A (Pins 1,2,4,5+ / 3,6,7,8-) |
| PoE Out Voltage Range | 22-24 VDC / 48-50 VDC |
| PoE Current Sensors | Yes, per port |
| Processor | MIPS 24K 416 MHz |
| System Memory | 128 MB |
| Flash Storage | 16 MB |
| Management | Web UI, SNMP, SMTP, Serial Console Port |
| Operating Temperature | -25 to 55°C (-13 to 131°F) |
| Cooling | Intelligent Forced Air Cooling with Fan RPM Monitoring |

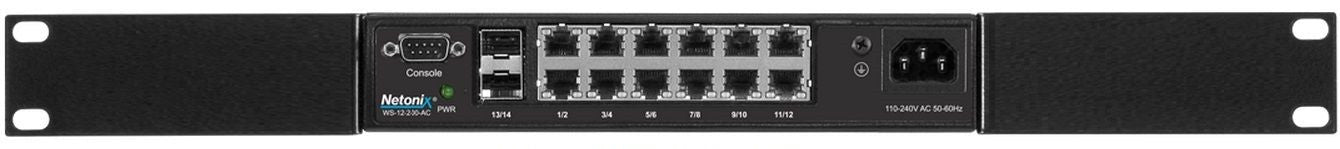

| Mounting | Desktop, Wall Mount, Optional 19" Rackmount or DIN Rail Kit |
| Dimensions | 223 mm x 181 mm x 44 mm |
| Weight | 2 kg |
| Certifications | CE, FCC, IC |
| Country of Origin | North America |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
