Radwin

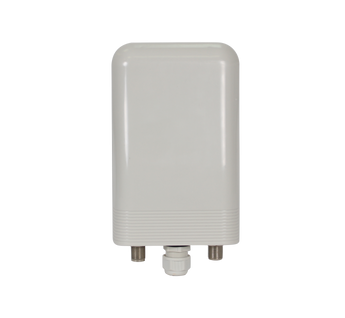

Radwin 2000 Alpha 5GHz 500Mbps Connectorized PtP Radio
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Carrier-Grade Performance with the Radwin 2000 Alpha 5GHz PtP Radio
Experience unparalleled reliability and high-speed connectivity with the Radwin 2000 Alpha, a top-tier Point-to-Point (PtP) solution designed for demanding network applications. Delivering a staggering 500Mbps net aggregate throughput, this outdoor unit (ODU) is engineered to provide robust and stable links for service providers, enterprises, and private networks. Its connectorized design, featuring two N-Type connectors, offers the ultimate flexibility by allowing the use of high-gain external antennas to achieve extended range and optimal performance.
Built to withstand the harshest environments, the Radwin 2000 Alpha is a telco-grade device that ensures consistent operation in non-line-of-sight (nLOS/NLOS) conditions and dense radio environments. Advanced OFDM & MIMO technologies, combined with Radwin's field-proven air interface, guarantee exceptional performance and spectral efficiency in the 4.9 to 6 GHz frequency range. Whether you're deploying video surveillance backhaul, replacing leased lines, or establishing building-to-building connectivity, the Radwin 2000 Alpha provides a cost-effective, high-performance solution.
Key Features:
- High Capacity Throughput: Achieves up to 500 Mbps net aggregated throughput for demanding data applications.
- Flexible Antenna Configuration: Equipped with 2 x N-Type connectors for use with third-party external antennas, enabling customized range and performance.
- Robust & Reliable: Telco-grade construction ensures stable and reliable operation even in the most challenging unlicensed spectrums and harsh weather conditions (IP67 rated).
- Advanced Technology: Features advanced OFDM & MIMO technologies for superior performance in nLOS/NLOS scenarios.
- Synchronized Operation: Supports intra-site TDD synchronization to maximize capacity and prevent mutual interference when co-locating multiple radios.
- Dynamic Bandwidth: Supports configurable channel bandwidths of 10, 20, 40, and 80 MHz.
Technical Specifications
| Category | Specification |
|---|---|
| Configuration | |
| Architecture | Outdoor Unit with 2 x N-Type connectors for external antenna |
| Wireless Topology | Point-to-Point (PtP) / Point-to-MultiPoint (PtMP) Subscriber Unit |
| Radio | |
| Max Capacity | 500 Mbps net aggregate throughput (250 Mbps per direction) |
| Range | Up to 120 km / 75 miles |
| Frequency Range | 4.9 - 6.0 GHz |
| Channel Bandwidth | Configurable 10, 20, 40, 80 MHz |
| Modulation | 2x2 MIMO-OFDM |
| Duplex Technology | TDD |
| Synchronization | Built-in GPS for TDD Synchronization |
| Data Interface | |
| Ethernet Interface | 10/100/1000BaseT (RJ-45) |
| Power | |
| Power Feeding | Power over Ethernet (PoE) via data port |
| PoE Injector | Requires RW-POE-24V or similar 24V Passive PoE |
| Environmental | |
| Operating Temperature | -40°C to +60°C / -40°F to +140°F |
| Humidity | 100% condensing |
| Weather Protection | IP67 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
