RADWIN 2000 Alpha 500Mbps Connectorized Point-to-Point Radio
Pickup available at NexGen Computing
Usually ready in 24 hours

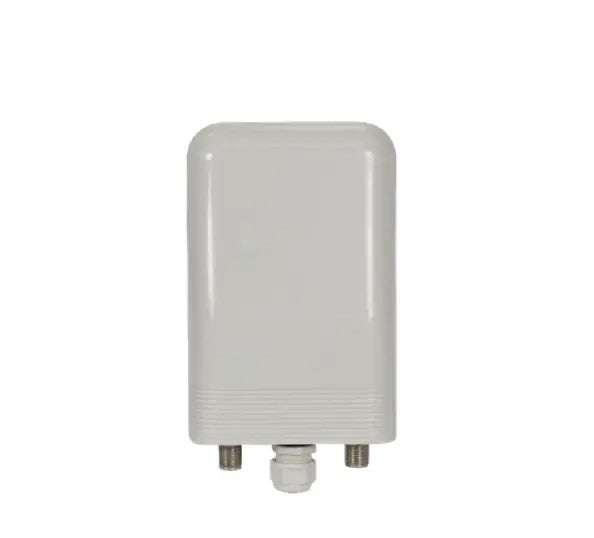

Unleash Carrier-Grade Connectivity with the RADWIN 2000 Alpha 5GHz ODU
Experience robust, high-performance wireless backhaul with the RADWIN 2000 Alpha series Outdoor Unit (ODU). This connectorized radio is engineered for reliability, delivering a staggering 500 Mbps net aggregate throughput for your most demanding network applications. Its flexible, connectorized design, featuring two N-type connectors, allows for connection to a variety of external antennas, giving you complete control over your link's performance and range. Built to withstand the harshest environments, the Alpha series is the gold standard for service providers and enterprises seeking fiber-like connectivity with the flexibility of wireless.
Peak Performance in Challenging Environments
The RADWIN 2000 Alpha excels in congested spectrums and non-line-of-sight (nLOS/NLOS) conditions, thanks to its advanced OFDM and 2x2 MIMO technologies. It operates within the broad 4.9 to 6.0 GHz frequency range, providing significant flexibility in spectrum planning. With features like a built-in GPS for TDD synchronization, the Alpha series minimizes mutual interference and maximizes network capacity when deploying multiple radios. This telco-grade unit ensures a guaranteed 99.999% uptime, providing a secure and interference-immune network for mission-critical data.
Engineered for Durability and Efficiency
Designed for minimum total cost of ownership (TCO), the RADWIN Alpha is extremely reliable and durable, complying with a rugged IP67 rating for dust and water ingress protection. It also features a unique 'dying gasp' alert, which sends a notification upon local power failure, saving unnecessary maintenance and truck rolls. Whether you are establishing a building-to-building connection, backhauling video surveillance, or replacing leased lines, the RADWIN 2000 Alpha provides an unmatched combination of performance, reliability, and value.
Technical Specifications
| Category | Specification |
|---|---|
| Configuration | |
| Architecture | Outdoor Unit with 2 x N-Type connectors for external antenna |
| Wireless Topology | Point-to-Point (PtP) / Point-to-MultiPoint (PtMP) Subscriber Unit |
| Radio | |
| Max Capacity | 500 Mbps net aggregate throughput |
| Frequency Range | 4.9 - 6.0 GHz |
| Channel Bandwidth | Configurable 10, 20, 40, 80 MHz |
| Modulation | 2x2 MIMO, OFDM |
| Max Range | Up to 120 km / 75 miles |
| Synchronization | Built-in GPS for TDD synchronization |
| Encryption | AES 128/256 |
| Interfaces | |
| Data Interface | 10/100/1000 Mbps RJ45 |
| Power | |
| Power Feeding | Power over Ethernet (PoE), nominal voltage 24-56V |
| Power Consumption | <13W |
| Environmental | |
| Operating Temperature | -35°C to 60°C / -31°F to 140°F |
| Environmental Protection | IP67 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
