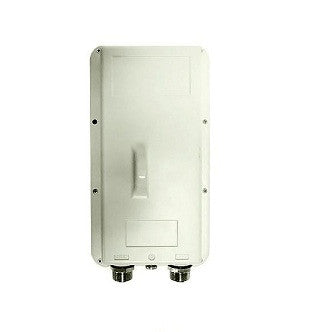

RADWIN GSU, Outdoor GPS-based Sync Unit For Inter-site Synchronization
Pickup available at NexGen Computing
Usually ready in 24 hours
Eliminate Interference and Maximize Network Performance
The Radwin Outdoor GPS-based Synchronization Unit (GSU) is the cornerstone of a high-performing, interference-free wireless network. By precisely synchronizing the transmission timing of all co-located Radwin radios, this rugged outdoor unit ensures your network operates at its peak potential. The GSU leverages a high-accuracy GPS receiver to provide a stable and consistent timing reference, effectively eliminating mutual interference between hub-sites and radios. This process of inter-site synchronization is critical for scaling your network, increasing capacity, and extending range without signal degradation.
Robust, All-Weather Design
Engineered for deployment in the most demanding environments, the Radwin GSU is built to last. It features a 100% condensing, IP67-rated housing, which offers complete protection against dust ingress and immersion in water up to 1 meter. With an operational temperature range of -35°C to 60°C (-31°F to 140°F), this unit guarantees reliable performance in extreme heat, cold, and humidity. Power is supplied via a separate PoE device, simplifying installation with a single CAT-5e cable for both power and data.
Flexible and Simple Integration
The RW-OGSU is designed for seamless integration with all types of Radwin radios. It supports both serial and Ethernet interfaces for flexible connectivity options. The complete kit includes the outdoor synchronization unit, an external GPS antenna, and the necessary RF cable, providing everything needed for a straightforward setup. This ease of operation and maintenance makes the GSU an essential component for any robust Radwin point-to-point or point-to-multipoint deployment.
Technical Specifications
| Product Code | RW-OGSU / RW-9924-0070 |
| Architecture | Outdoor Synchronization Unit, Including External GPS Antenna and RF cable. (PoE device should be ordered separately) |
| GSU to PoE Interface | CAT-5e cable; Maximum cable length: 100 m |
| Mechanical | |
| Dimensions (H x W x D) | 24.5cm x 13.5cm x 4.0cm |
| Weight | 1.0 kg / 2.2 lbs |
| Power | |
| Power Feeding | Power provided by PoE device (ordered separately) |
| Max Power Dissipation | <10W |
| Environmental | |
| Operating Temperatures | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing, IP67 |
| Safety & EMC | |
| FCC/IC (cTUVus) | UL 60950-1, UL 60950-22, CAN/CSA C22.2 60950-1, CAN/CSA C22.2 60950-22 |
| ETSI | EN/IEC 60950-1, EN/IEC 60950-22 |
| FCC EMC | CFR47 Class B, Part 15, Subpart B |
| ETSI EMC | EN 300 386, EN 301 489-1 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
