Radwin
Radwin IDU-SI 10-Port Industrial L3 Managed PoE++ Switch with 10G SFP+
Pickup available at NexGen Computing
Usually ready in 24 hours
Power Your Network in the Harshest Environments

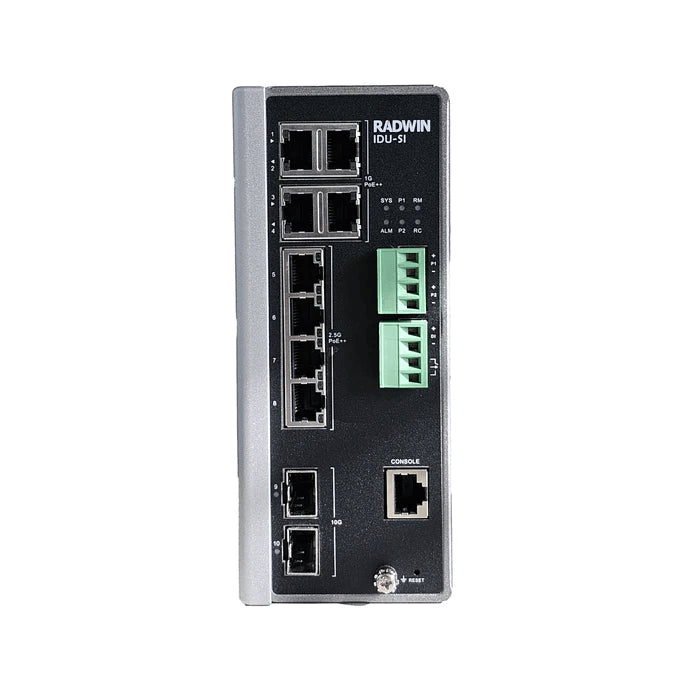

Introducing the RADWIN IDU-SI, a carrier-class, industrial-grade Layer 3 PoE switch engineered for mission-critical deployments in the most demanding conditions. This compact and fanless switch is designed for installation in outdoor cabinets and space-constrained locations, providing a robust and reliable solution for powering RADWIN radios, CCTV cameras, Wi-Fi access points, and other PoE-powered devices. Its rugged design, wide operating temperature range, and advanced features ensure your network remains operational when it matters most.
Engineered for Industrial Excellence

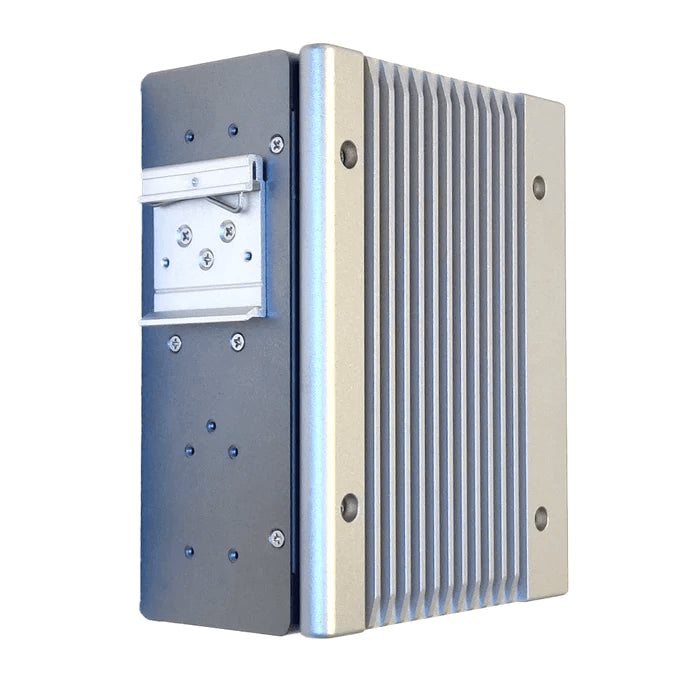

The IDU-SI is built to withstand extreme temperatures, operating flawlessly in environments ranging from -40°C to +75°C (-40°F to +167°F). Its fanless, passive cooling design not only ensures silent operation but also enhances reliability by eliminating a common point of failure. With a DIN-rail mountable chassis, installation in outdoor enclosures is streamlined and secure.
Unleash High-Power PoE and High-Speed Connectivity
With a total PoE budget of 360W, the IDU-SI is capable of delivering up to 90W of power per port, supporting the latest high-power PoE++ (802.3bt) standard. This makes it the ideal power source for advanced radio units and other power-hungry devices. The switch features a versatile port configuration to handle high-throughput aggregation:
- 4 x 2.5GbE RJ45 ports with up to 90W PoE++
- 4 x 1GbE RJ45 ports with up to 90W PoE++
- 2 x 10G/1G SFP+ uplink ports for high-speed fiber backbone connectivity
Advanced Layer 3 Routing and Management
The IDU-SI offers comprehensive Layer 2 switching and full Layer 3 routing capabilities, including support for static and dynamic routing for complex and redundant network topologies. This enables more efficient network segmentation and traffic management. For mission-critical reliability, it supports carrier-class protected ring topologies with a self-recover time of less than 20ms. Management is made easy through a user-friendly Web GUI, CLI (Telnet/SSH), or integration with RADWIN's WINManage NMS.
Redundancy and Reliability Built-In
To ensure maximum uptime, the IDU-SI features redundant, dual DC power inputs, allowing for a secondary power source to take over seamlessly in the event of a primary power failure. It also includes a dry contact digital input/output relay for connecting external alarms and sensors.
Technical Specifications

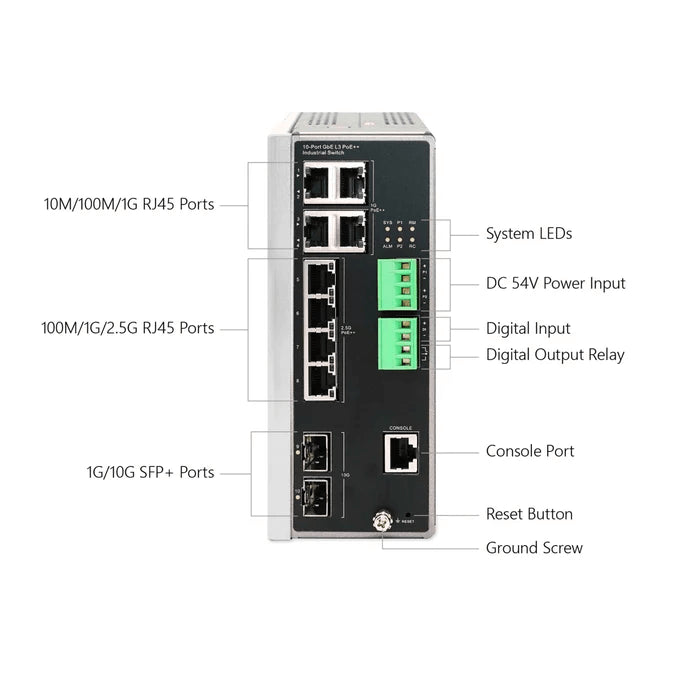

| Interfaces | |
|---|---|
| 2.5G PoE++ Ports | 4 x 100/1000/2500Base-TX RJ-45 with auto-negotiation |
| 1G PoE++ Ports | 4 x 10/100/1000Base-TX RJ-45 with auto-negotiation |
| Uplink Ports | 2 x 1G/10G SFP+ ports |
| Console Port | 1 x RJ45 to DB9 |
| I/O | Dry contact digital input/output relay |
| Power over Ethernet (PoE) | |
| Total PoE Budget | 360W |
| PoE Standard | IEEE 802.3af/at/bt and RADWIN PoE |
| Max Power per Port | Up to 90W |
| Switching & Routing | |
| Switching Capacity | Up to 68 Gbps |
| Layer Support | Full Layer 2 switching and comprehensive Layer 3 routing |
| Ring Protection | EPS (G.8031), ERPS (G.8032), Rapid Ring/MRP with <20ms recovery |
| Power | |
| Power Input | Dual 44~57 VDC input for redundancy |
| Device Power Consumption | <30W (without PoE) |
| Mechanical & Environmental | |
| Dimensions (W x H x D) | 73 x 168 x 130 mm / 2.44 x 6.61 x 5.11 inches |
| Weight | 1.6 kg / 3.53 lbs |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Mounting | DIN Rail Mount (included) |
| Cooling | Fanless (Passive Cooling) |
