Radwin

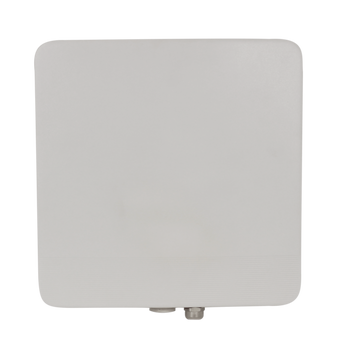

Radwin JET AIR 5GHz PtMP Beamforming Base Station, 750Mbps
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Fiber-Like Wireless Performance in Congested Environments
Experience a new level of wireless broadband with the Radwin JET AIR, a cost-effective Point-to-MultiPoint (PtMP) base station engineered for exceptional performance in the toughest RF conditions. Delivering up to 750 Mbps of aggregate throughput, the JET AIR leverages powerful 2nd generation beamforming technology to cut through interference and provide stable, reliable connectivity to residential and business users. Its advanced antenna system focuses a narrow, steerable beam towards each subscriber unit, dramatically mitigating noise from nearby wireless networks and ensuring a superior connection quality that rivals fiber.
Key Features:
- 750 Mbps High-Capacity Sector: Provides substantial bandwidth to support demanding applications for up to 64 subscriber units per sector.
- Smart Beamforming Technology: Ensures unparalleled interference immunity by creating a dedicated narrow beam for each subscriber, enabling stable performance in the congested 5GHz unlicensed spectrum.
- Wide Frequency Range (4.9 - 6.0 GHz): Offers extensive flexibility for clear channel planning and deployment in various regulatory domains.
- 90-Degree Sector Coverage: A smart 15° beam is electronically steered across a 90° sector, providing wide coverage from a single unit.
- Integrated GPS Synchronization: Built-in GPS enables Time Division Duplex (TDD) synchronization across multiple base stations, preventing self-interference and maximizing network capacity.
- Carrier-Grade Reliability: Engineered for robust and reliable operation in harsh conditions, with an extended operating temperature range.
- Flexible Connectivity: Features both a Gigabit Ethernet port and an SFP port for fiber-optic uplink, providing versatile backhaul options.
Technical Specifications
| Configuration | |
|---|---|
| Architecture | Outdoor Unit with integrated beamforming antenna and embedded GPS. |
| Wireless Topology | Point-to-MultiPoint (PtMP) Base Station. |
| Radio & Performance | |
| Maximum Capacity | 750 Mbps net aggregate throughput. |
| Maximum Subscriber Units | Up to 64. |
| Frequency Range | 4.9 - 6.0 GHz. |
| Channel Bandwidth | Configurable: 10, 20, 40, 80 MHz |
| Modulation | BPSK to 256QAM |
| Antenna | Integrated Smart Beamforming Antenna |
| Azimuth Beamwidth | 15° beam steered over a 90° sector. |
| Synchronization | Built-in GPS for TDD Synchronization. |
| Range | Up to 40 km / 25 miles. |
| Interfaces | |
| Data Interfaces | 1 x 10/100/1000BaseT (RJ-45) PoE In, 1 x 1Gbps SFP. |
| PoE Interface | Outdoor CAT-5e cable, max length 100m. |
| Power | |
| Power Feeding | Power provided over CAT-5e PoE cable |
| Power Consumption | <35W (RADWIN PoE). |
| Physical & Environmental | |
| Dimensions (W x L x H) | 38cm x 39cm x 14cm. |
| Weight | 5.28 kg. |
| Operating Temperature | -40°C to 60°C / -40°F to 140°F. |
| Humidity | 100% condensing |
| Standards & Compliance | |
| Safety | EN/IEC, UL/CSA, CTUVus. |
| EMC | ETSI/EN, FCC, ICES. |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
