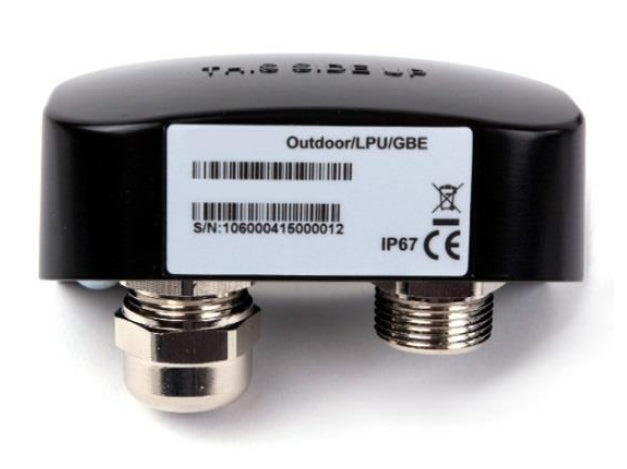

RADWIN Outdoor Lightning Protection Unit for 10/100/1000/2500 Base-T PoE
Ultimate Protection for Your Outdoor Network Gear
Safeguard your valuable outdoor network equipment from the devastating effects of lightning and electrical surges with the Radwin Outdoor Lightning Protection Unit. Designed for carrier-grade reliability, this unit is an essential component for any outdoor Power over Ethernet (PoE) installation. It provides robust, high-performance protection for data lines, ensuring your network remains operational even in the harshest weather conditions. This unit incorporates a high-power gas discharge tube and current transistor protection to defend against sudden electrical surges.
Multi-Gigabit Performance
Don't let your surge protector be a bottleneck. This Radwin LPU is engineered to support high-speed data rates up to 2.5 Gbps, making it fully compatible with 10/100/1000/2500-BaseT Ethernet interfaces. It ensures that your network's performance is never compromised while providing maximum protection for all 8 pins plus the shield on your STP cables.
Built for the Outdoors

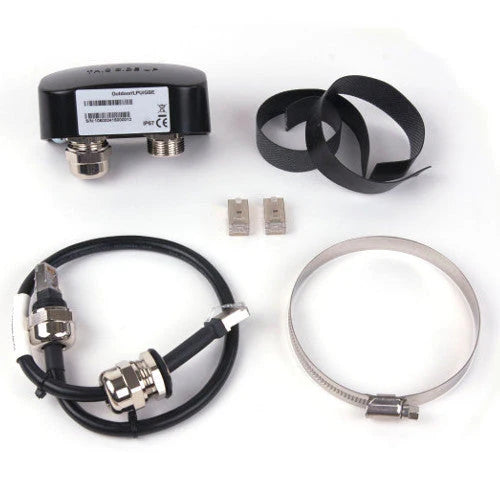

Engineered to withstand the elements, this lightning protection unit features a rugged, weatherproof enclosure with an IP67 rating, offering complete protection against dust and water ingress. The unit is designed for simple installation with included pole and wall mounting kits, making it a versatile solution for any deployment scenario. The complete kit includes the LPU, a 0.5m CAT5e cable, glands, RJ45 connectors, sealing tape, and a metal mounting band.
Key Features:
- Supports Multi-Gigabit speeds up to 2500Mbps.
- Compatible with 10/100/1000/2500-BaseT PoE networks.
- Robust IP67 rated weatherproof metal enclosure for all-weather durability.
- Comprehensive protection for all 8 Ethernet wires plus shielding.
- Fast response time of less than 5 microseconds.
- Includes complete mounting and installation kit.
Technical Specifications
| Electrical Specifications | |
|---|---|
| Compatible Interfaces | 10/100/1000BaseT, 2.5Gbps |
| Data Rates | Up to 2500Mbps |
| Connection Type | RJ45 CAT5e STP (Shielded) |
| Pins Protected | All 8 wires + shielding |
| Response Time | <5 microseconds |
| Nominal Operational Voltage | 48VDC |
| Maximum Operational Voltage | 60VDC – 650 mA |
| Maximum Continuous Current | 1A |
| Nominal Discharge Current (Line to Line) | 500A @ 8/20µs |
| Nominal Discharge Current (Line to Ground) | 2000A @ 8/20µs |
| Impulse Discharge Current | 20,000A @ 8/20µs (1 operation min) |
| Mechanical & Environmental | |
| Enclosure | Metal |
| Dimensions | 98.4 x 51.9 x 47.8 mm |
| Weight | 220 gram |
| Operating Temperature | -40°C to +60°C |
| Enclosure Rating | IP67 |
| Humidity | 100% non-condensing |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
