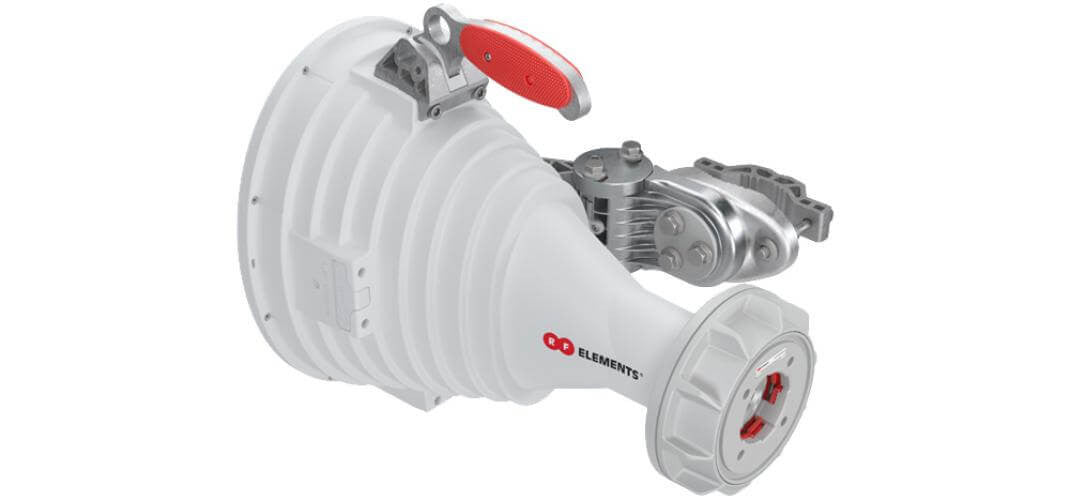

RF elements 30° Asymmetrical Horn Antenna | AH2030-TP
Pickup available at NexGen Computing
Usually ready in 24 hours
Precision Coverage and Noise Rejection for High-Density Networks
The RF Elements 30° Asymmetrical Horn Antenna is engineered for superior performance in high-density and co-located wireless deployments. Its innovative asymmetrical beam shape provides a wide 30° azimuth and a narrow 20° elevation, offering precise coverage and minimizing interference. This antenna boasts a high gain of 20.5 dBi and naturally suppressed side lobes, focusing energy into a single main beam for exceptional noise immunity. The stability of its gain and radiation pattern across the entire 5180 - 6000 MHz frequency range ensures reliable and consistent connectivity.
Revolutionary TwistPort™ Connector and BeamSwitch™ Technology
Featuring the revolutionary patent-pending TwistPort™ connector, this antenna allows for easy, twist-and-lock integration with a wide array of third-party radios using TwistPort™ Adaptors. This virtually lossless connection enhances scalability and simplifies installations. The unique BeamSwitch™ feature enables the antenna to be mounted with a 90° rotation by swapping the handle and bracket positions, providing the flexibility of a 20° azimuth and 30° elevation beamwidth option.
Robust Construction for Demanding Environments
Built to withstand harsh conditions, the RF Elements Asymmetrical Horn Antenna is constructed from durable materials including UV resistant ABS plastic, polycarbonate, HDPE, aluminum, and stainless steel. It is IP55 rated for environmental protection and can survive winds up to 160 km/h (100 mi/h). The robust construction and thoughtful design, including an extruded aluminum ring for improved structural strength, make it a reliable choice for any deployment scenario.
Award-Winning Performance
The exceptional performance and innovative design of the Asymmetrical Horn antennas have been recognized with the WISPA Product of the Year Award in 2019, 2020, and 2021.
| Performance | |
|---|---|
| Frequency Range | 5180 - 6000 MHz |
| Gain | 20.5 dBi |
| Azimuth Beam Width -3 dB | H 21° / V 21° |
| Elevation Beam Width -3 dB | H 15° / V 15° |
| Azimuth Beam Width -6 dB | H 30° / V 30° |
| Elevation Beam Width -6 dB | H 20° / V 20° |
| Beam Efficiency | 95% |
| Front-to-Back Ratio (Min) | 35 dB |
| Physical Specifications | |
| Antenna Connection | TwistPort™ - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel |
| Environmental | IP55 |
| Pole Mounting Diameter | 40-80 mm (1.5-3.1 inch) |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 71/49 N - Front/Side at 160 km/h (100 mi/h) |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 4.2 kg (9.2 lbs) – single unit |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
