RF Elements

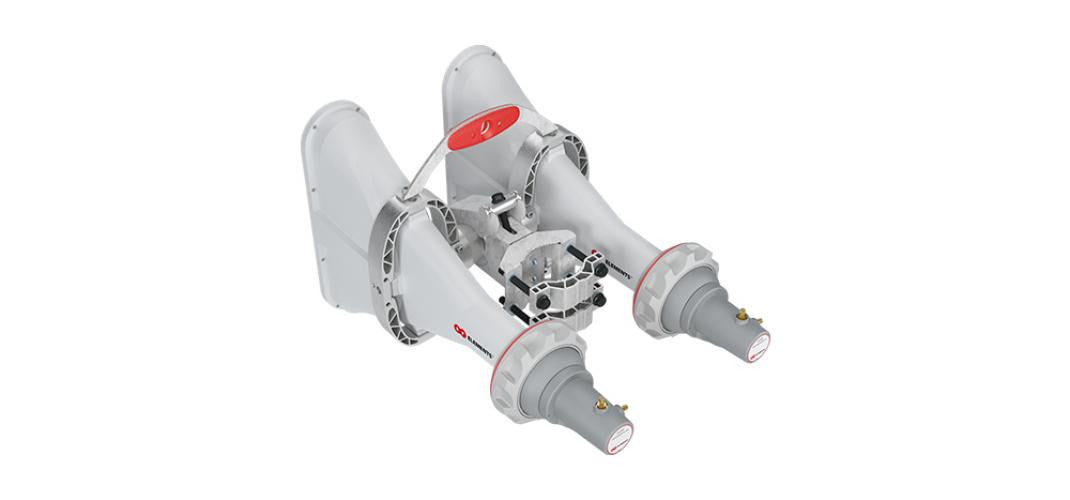

RF Elements 5 GHz 90° Asymmetrical Horn Antenna for 4x4 MU-MIMO
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Unprecedented Network Performance
Elevate your network's capabilities with the RF Elements 5 GHz 90° 4x4 Asymmetrical Horn Antenna. This antenna is engineered for superior performance in 4x4 outdoor deployments utilizing MU-MIMO radios. It delivers exceptional noise rejection, enhances network scalability, and significantly increases throughput. The unique asymmetrical horn design focuses energy into a single main beam, achieving a remarkable beam efficiency of 90-95% while suppressing unwanted side lobes. This fundamental suppression of parasitic side lobes provides outstanding noise immunity and gives you total control over your antenna array's radiation patterns. This award-winning technology, recognized as the WISPA Product of the Year for three consecutive years (2019-2021), is built to deliver best-in-class performance.
Optimized for MU-MIMO and Seamless Integration
Designed to provide ultimate MU-MIMO performance, this asymmetrical horn antenna is perfectly matched for Cambium Networks ePMP 3000 and ePMP 4500 series radios. Its integrated radio mount allows for a direct and seamless installation of these high-performance radios. The package includes high-quality RP-SMA pigtails, ensuring a secure and reliable connection. The stable radiation pattern across the entire 5 GHz frequency band, with balanced Horizontal and Vertical beam patterns, ensures consistent and reliable connectivity.
Robust Construction for Extreme Durability
The RF Elements Asymmetrical Horn Antenna is built to withstand the harshest environmental conditions. Constructed from premium materials including die-cast and extruded aluminum, stainless steel, high-quality ABS plastic, and high-density polyethylene, this antenna is built like a tank. The innovative mounting system, made of massive stainless steel, is separated from the antenna, simplifying the installation and adjustment process. The stainless steel hardware features a black surface coating to prevent galling during installation, ensuring a long and reliable service life.
| Antenna Connection | 4x RP-SMA Female |
| Antenna Type | Horn |
| Frequency Range | 5180 - 6000 MHz |
| Gain | 16 dBi |
| Polarization | Dual Linear H + V |
| Azimuth Beam Width -6dB | H 90° / V 90° |
| Elevation Beam Width -6dB | H 25° / V 25° |
| Front-to-Back Ratio | 35 dB |
| VSWR | < 1.8 |
| Wind Survival | 160 km/h |
| Pole Mounting Diameter | 40 - 80 mm |
| Materials | Die-cast and Extruded Aluminium, Stainless Steel, High-Quality ABS Plastic, High-Density Polyethylene |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Dimensions | 424 x 284 x 205 mm |
| Weight | 5.5 kg |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
