RF Elements

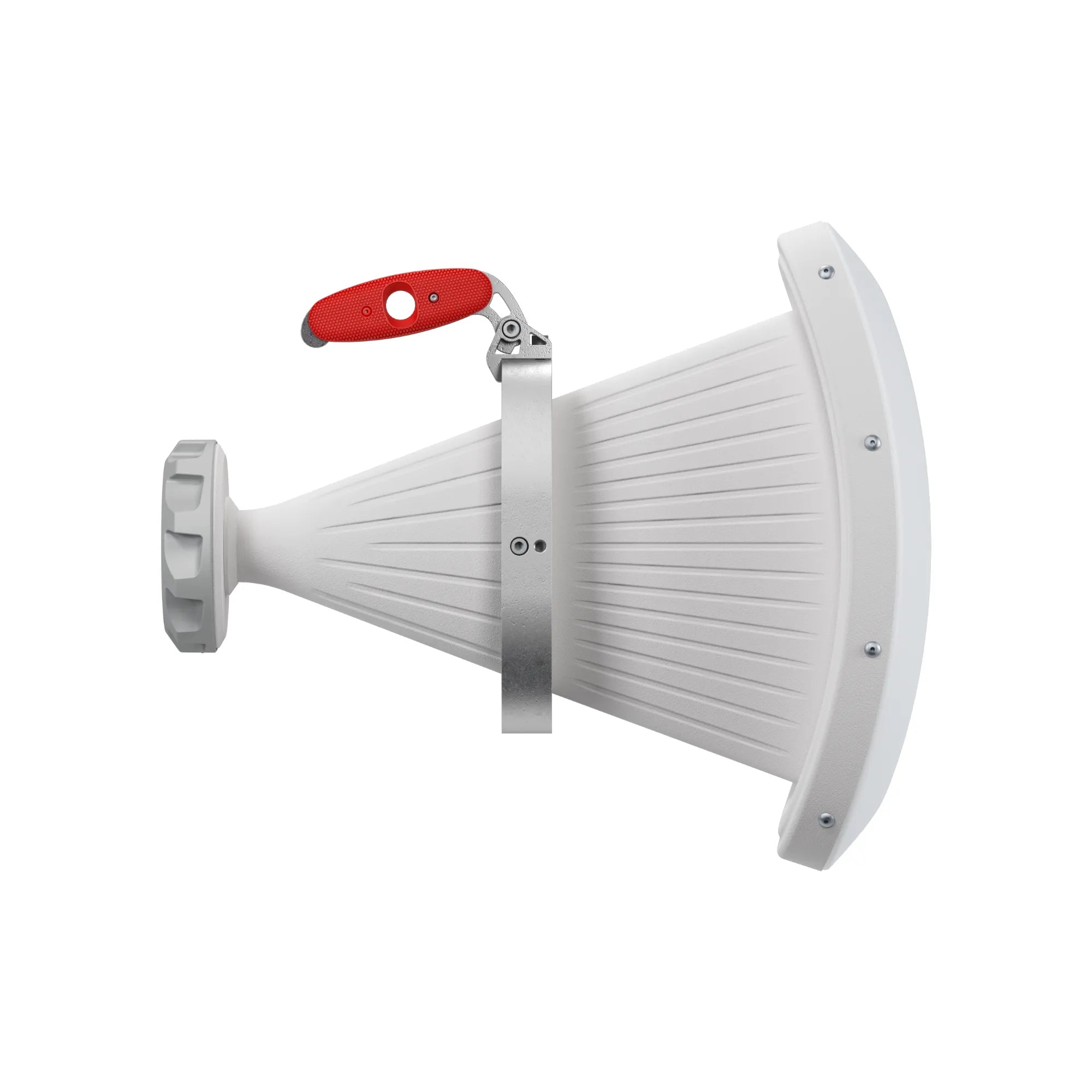

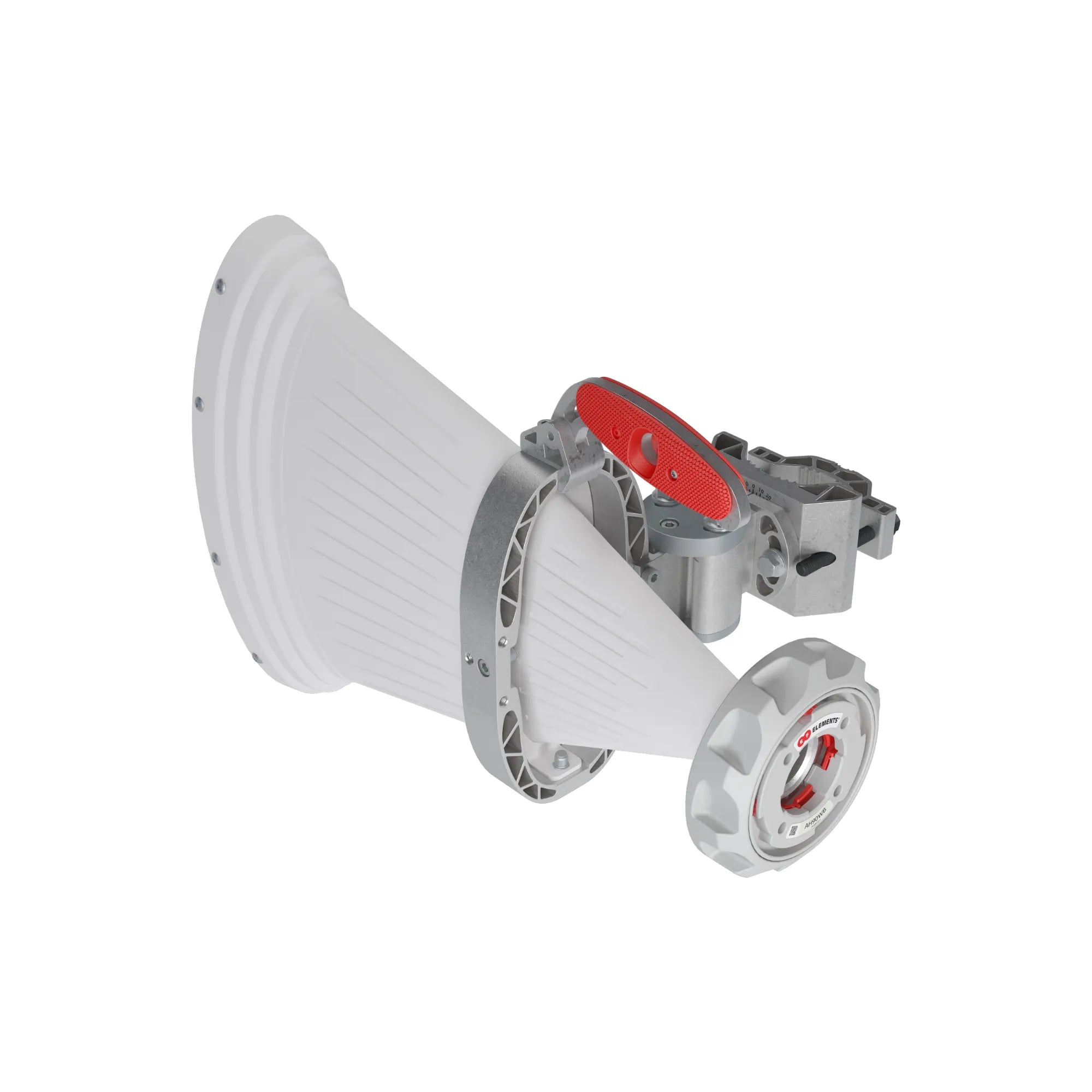

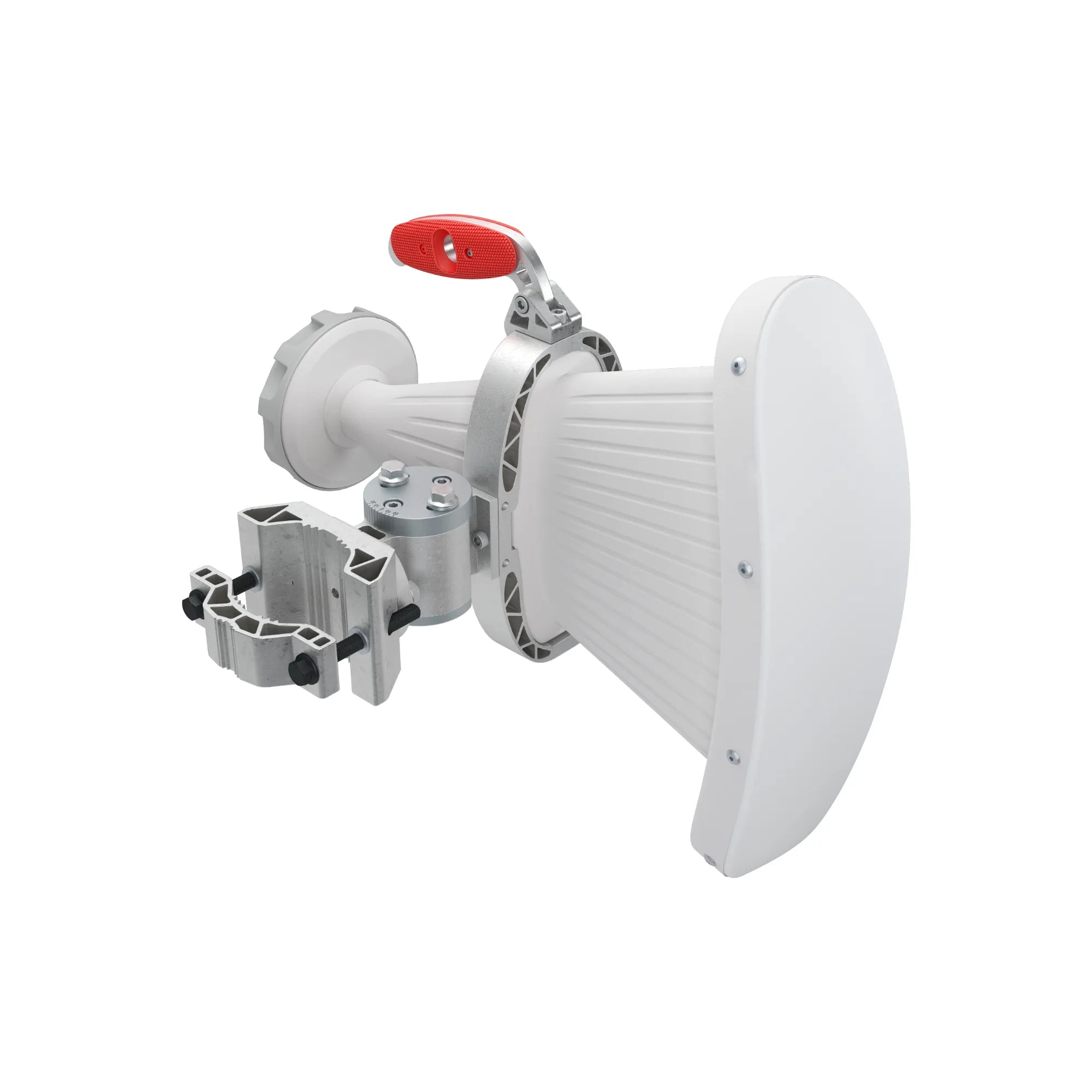

RF Elements 90° Wideband Asymmetrical Horn Antenna, 5 & 6 GHz
Pickup available at NexGen Computing
Usually ready in 24 hours
Eliminate Network Noise with Precision Coverage
Step up your network's performance with the RF Elements 90° Wideband Asymmetrical Horn Antenna. Designed for high-density and co-location deployments, this antenna is the ultimate solution for combating network interference. Its innovative asymmetrical beam pattern provides a wide 90° coverage in the azimuth and a focused 25° in the elevation, ensuring signal is directed only where you need it. By eliminating side lobes, this horn antenna delivers exceptional noise rejection, dramatically improving link stability and throughput.
Future-Proof Wideband Performance
Operate across an expansive frequency range from 4.9 GHz to 7.125 GHz, covering both 5 GHz and 6 GHz unlicensed bands. This ultimate wideband capability ensures your network is ready for the next generation of wireless technology, providing stable gain and consistent radiation patterns across the entire spectrum. The antenna's unique performance makes it a versatile and future-proof investment for any network.
Robust Design & Seamless Integration
Built from high-grade aluminum and stainless steel, the RF-AH-90WB is engineered for extreme outdoor resilience, including harsh salt-water environments. Its lightweight and compact design reduces tower load and wind resistance. Featuring the industry-standard TwistPort™ waveguide connector, this antenna ensures a simple, secure, and lossless connection to TwistPort-compatible radios, making deployment and scalability effortless for any Wireless Internet Service Provider (WISP).
Technical Specifications
| Performance | |
|---|---|
| Frequency Range | 4900 - 7125 MHz |
| Gain | 15 dBi |
| Azimuth Beam Width (-6dB) | H 90° / V 90° |
| Elevation Beam Width (-6dB) | H 25° / V 25° |
| Front-to-Back Ratio | 27 dB |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
| Physical | |
| Antenna Type | Horn |
| Radio Connection | TwistPort™ Waveguide Connector |
| Materials | Aluminium, Stainless Steel, ABS, PMMA, Zinc Alloy |
| Environmental Rating | IP65 |
| Pole Mounting Diameter | 40 - 80 mm (1.5 - 3.1 inches) |
| Operating Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mph) |
| Weight (Unit Only) | 2.8 kg / 6.2 lbs |
| Dimensions (Retail Box) | 514 × 423 × 167 mm (20.2 x 16.6 x 6.6 inches) |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
