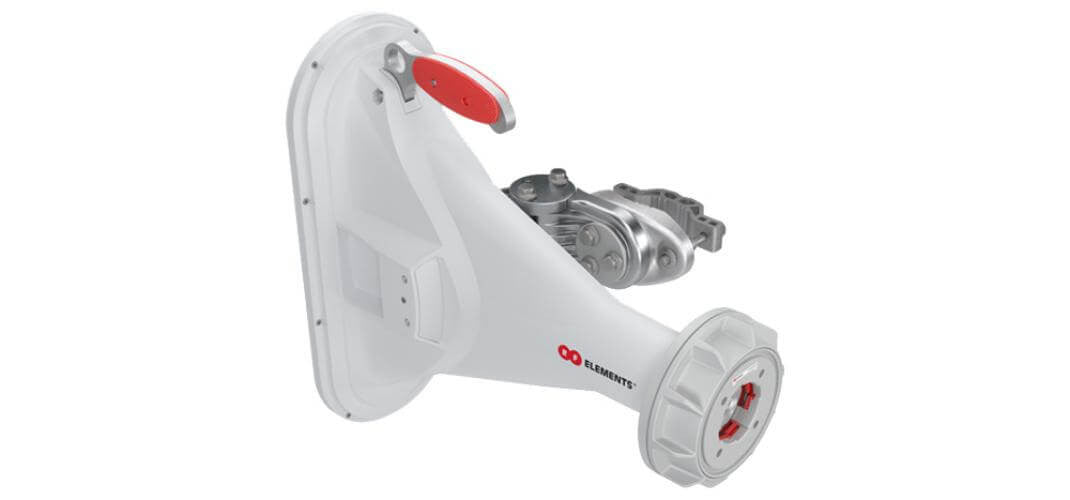

RF elements 90 deg Asymmetrical Horn Antenna
Pickup available at NexGen Computing
Usually ready in 24 hours
Revolutionize Your Network with the RF Elements 90° Asymmetrical Horn Antenna
Experience the perfect fusion of a traditional sector antenna's high gain and a horn's superior noise rejection with the RF Elements 90° Asymmetrical Horn TP Antenna. This game-changing antenna is engineered to deliver unparalleled performance in high-density and co-location environments. Its unique asymmetrical beam pattern, which is wide in the azimuth and narrow in the elevation plane, offers enhanced coverage planning options and significantly reduces interference. The antenna's zero side lobes ensure that you can focus your signal precisely where you need it, eliminating unwanted noise and improving network stability.
Key Features:
- Asymmetrical Beam for Optimal Coverage: The 90° asymmetrical beam provides a wide coverage area horizontally while maintaining a narrow vertical beam, making it ideal for various deployment scenarios.
- TwistPort™ Connector: The revolutionary TwistPort™ quick-locking waveguide port ensures a secure, virtually lossless connection to a wide range of third-party radios with TwistPort™ Adaptors.
- Zero Side Lobes for Interference Rejection: By eliminating side lobes, this antenna excels at rejecting noise, making it perfect for high-density access point clusters and populated areas.
- Wideband Performance: Operate across a broad frequency range of 5180-6000 MHz with a consistent 16 dBi gain and excellent VSWR performance.
- Durable Construction: Built with UV-resistant ABS plastic, polycarbonate, aluminum, and stainless steel, this antenna is designed for demanding outdoor installations with an IP55 environmental rating.
Technical Specifications:
| Antenna Connection | TwistPort™ - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Frequency Range | 5180 - 6000 MHz |
| Gain | 16 dBi |
| Azimuth Beam Width -3 dB | H 90° / V 90° |
| Elevation Beam Width -3 dB | H 25° / V 25° |
| Azimuth Beam Width -6 dB | H 60° / V 60° |
| Elevation Beam Width -6 dB | H 16° / V 16° |
| Beam Efficiency | 90% |
| Front-to-Back Ratio (Min) | 30 dB |
| Materials | UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel |
| Environmental Rating | IP55 |
| Pole Mounting Diameter | 40-80 mm (1.5-3.1 inch) |
| Temperature Range | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 79/82 N - Front/Side at 160 km/h (100 mi/h) |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 5.3 kg (11.6 lbs) – single unit |
| Dimensions (Single Unit) | 510 × 420 × 175 mm (20 x 16.5 x 6.8 inch) |
