Siklu

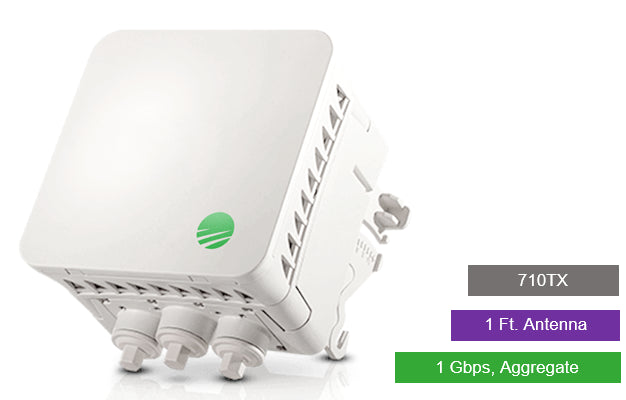

Siklu EtherHaul-710TX 1Gbps E-Band PTP Wireless Bridge with 1ft Antenna

SKU: SK-EH710TX-1000-1FTBarcode: 48505474121968
R 84,617.46
2 in stock
Dispatches from Midrand Warehouse. Fast Nationwide Delivery

Estimated delivery

Get it 000, 000 00 – 000, 000 00

Free delivery Your order qualifies
Visa Mastercard American Express Apple Pay Google Pay Capitec Pay

Unlock Interference-Free, Gigabit Performance

Experience fiber-like speed and rock-solid reliability with the Siklu EtherHaul-710TX Point-to-Point (PTP) wireless bridge. This powerful radio operates in the uncongested 70/80GHz E-band, delivering a full-duplex 1Gbps (aggregate) connection that is immune to the spectral interference plaguing traditional wireless frequencies. Paired with a high-gain 1-foot antenna, this kit is engineered for robust performance, making it an ideal solution for service providers, businesses, and municipalities seeking dependable, high-capacity backhaul.

Key Features & Benefits

  • 1 Gbps Aggregate Throughput: Supports demanding applications with symmetric and asymmetric traffic, ensuring smooth performance for data, voice, and video.
  • Interference-Free E-Band Operation: Utilizes the lightly licensed 71-76 GHz spectrum, featuring narrow, pencil-thin beams that guarantee no interference and high reliability for predictable performance.
  • Robust All-Weather Design: Housed in an IP67-rated sealed enclosure, the EH-710TX is built to withstand the harshest environmental conditions, ensuring carrier-grade availability.
  • Simplified Deployment: With a compact footprint and features like zero-touch turn-up and an intuitive web GUI, installation is fast and does not require specialized telecom expertise.
  • Integrated Networking: Features three Gigabit Ethernet ports, allowing for simple network topologies like ring or daisy-chain and reducing the need for external switching hardware.
  • Advanced Security: Protect your critical data with embedded AES 128-bit and 256-bit encryption.

Versatile High-Speed Applications

The Siklu EtherHaul-710TX is a cost-effective alternative to leased fiber, providing exceptional value and a rapid return on investment. It is the perfect choice for a wide range of verticals:

  • Video Surveillance (CCTV) Backhaul
  • Wi-Fi Hotspot Backhaul
  • Business & Residential Broadband
  • Campus Connectivity
  • Mobile Backhaul

Technical Specifications

Radio & Performance
Frequency Band 71-76 GHz (E-Band)
Duplexing Scheme TDD
Channel Bandwidth 125 / 250 / 500 MHz
Modulation Hitless Adaptive Bandwidth, Coding & Modulation
Throughput Up to 1000 Mbps aggregate
Encryption AES 128-bit & 256-bit
Antenna 1 ft (30 cm) External Antenna
Interface & Management
Ethernet Interface 3x GbE copper ports
Management In-band, Out-of-band, Web GUI, Embedded CLI, SNMPv2/3, RADIUS, TACACS+
Network Topologies Ring, Daisy-Chain, Mesh
Power & Physical
Power Input PoE+ (IEEE 802.3at)
Operating Temperature -45°C to +55°C (-49°F to +131°F)
Ingress Protection IP67
ODU Dimensions (H x W x D) 16.5 x 16.5 x 10 cm (6.5" x 6.5" x 3.9")
ODU Weight 1.8 kg (3.9 lbs)
Regulatory ETSI EN 302 217, USA FCC Part 15.255, IC Canada, EMC
Manufacturer Technical Data
Product Spec Sheet nullDownload
