Acconet

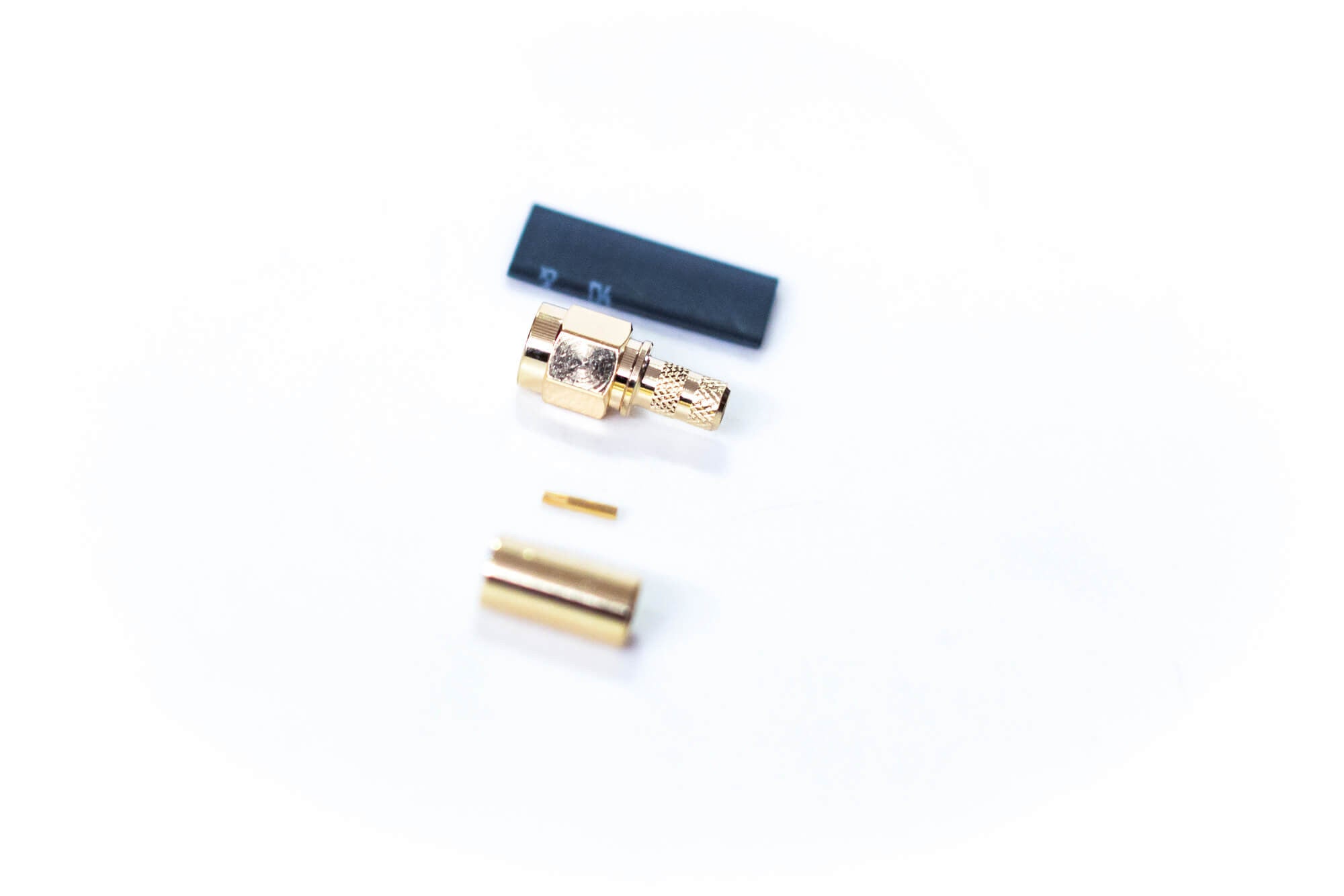

SMA (Male) Rev Polarity Connector for ARF195 Cable

SKU: SMA(M)RP-195Barcode: 48505437061360
R 44.22
658 in stock
Dispatches from Midrand Warehouse. Fast Nationwide Delivery

Estimated delivery

Get it 000, 000 00 – 000, 000 00

R 85 delivery Add R 4,955.78 more for free delivery
Visa Mastercard American Express Apple Pay Google Pay Capitec Pay

Precision Engineered for Superior Connectivity

Achieve optimal signal integrity for your RF applications with the Acconet SMA Male Reverse Polarity (RP-SMA) Connector. Expertly designed for a secure and reliable termination with ARF195, LMR-195, RG58, and equivalent 5mm coaxial cables, this connector is the professional's choice for building custom high-performance cable assemblies. Its reverse polarity configuration is crucial for many Wi-Fi, WLAN, and other RF systems, ensuring compliance and preventing accidental connections with standard SMA interfaces. The crimp-style attachment provides a robust and durable connection, suitable for both field and lab use.

Uncompromising Performance and Durability

Engineered for excellence, this connector boasts a 50 Ohm impedance and is designed to operate seamlessly across a broad frequency range up to 18GHz. With a very low Voltage Standing Wave Ratio (VSWR) of less than 1.1:1 and minimal insertion loss of under 0.15dB/6GHz, it ensures a clean and efficient signal path with minimal interference. Constructed from high-quality materials, including a gold-plated brass body and a gold-plated center pin, this connector offers superior conductivity and resistance to corrosion. The durable design is rated for over 500 mating cycles, guaranteeing a long service life and consistent performance.


Detailed Technical Specifications

Specification Value
Connector Type SMA Male, Reverse Polarity (RP-SMA)
Impedance 50 Ohms
Frequency Range DC - 18 GHz
Compatible Cable Types ARF195, LMR-195, RG58, Belden 9907
Attachment Method Crimp/Solder Pin
VSWR <1.1:1
Insertion Loss <0.15dB @ 6GHz
Body Material Brass
Body Plating Gold
Contact Material Brass / Beryllium-Copper
Contact Plating Gold
Insulator PTFE
Durability >500 Mating Cycles
Operating Temperature -55°C to +155°C
Working Voltage 335V RMS
Dielectric Withstanding Voltage 1000V RMS
Compliance RoHS Compliant, MIL-C-39012
Manufacturer Technical Data
Product Spec Sheet Not available for this product
