Teltonika

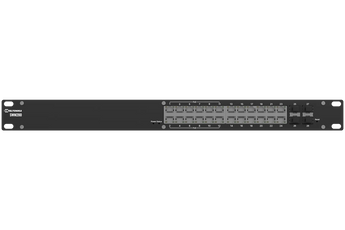

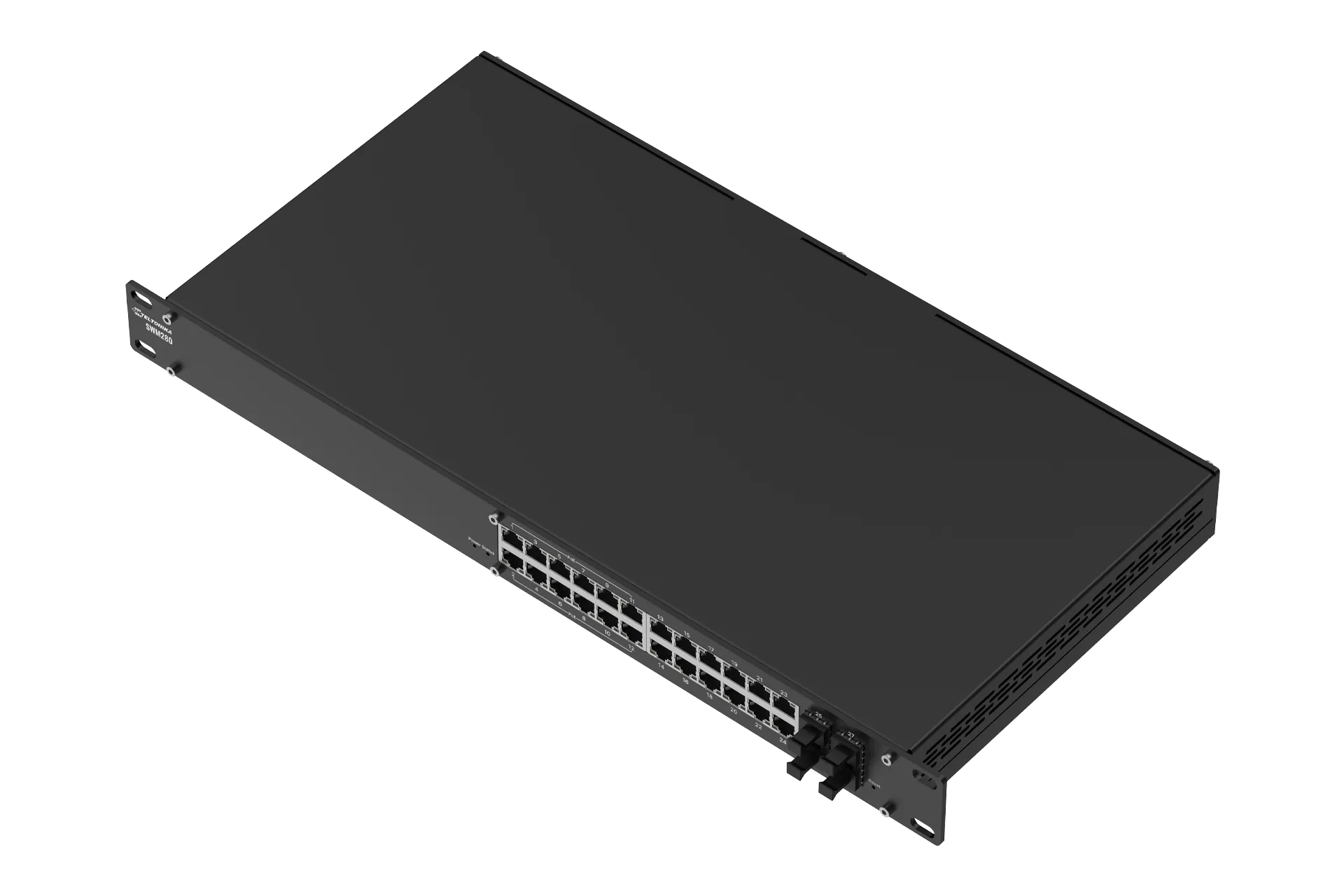

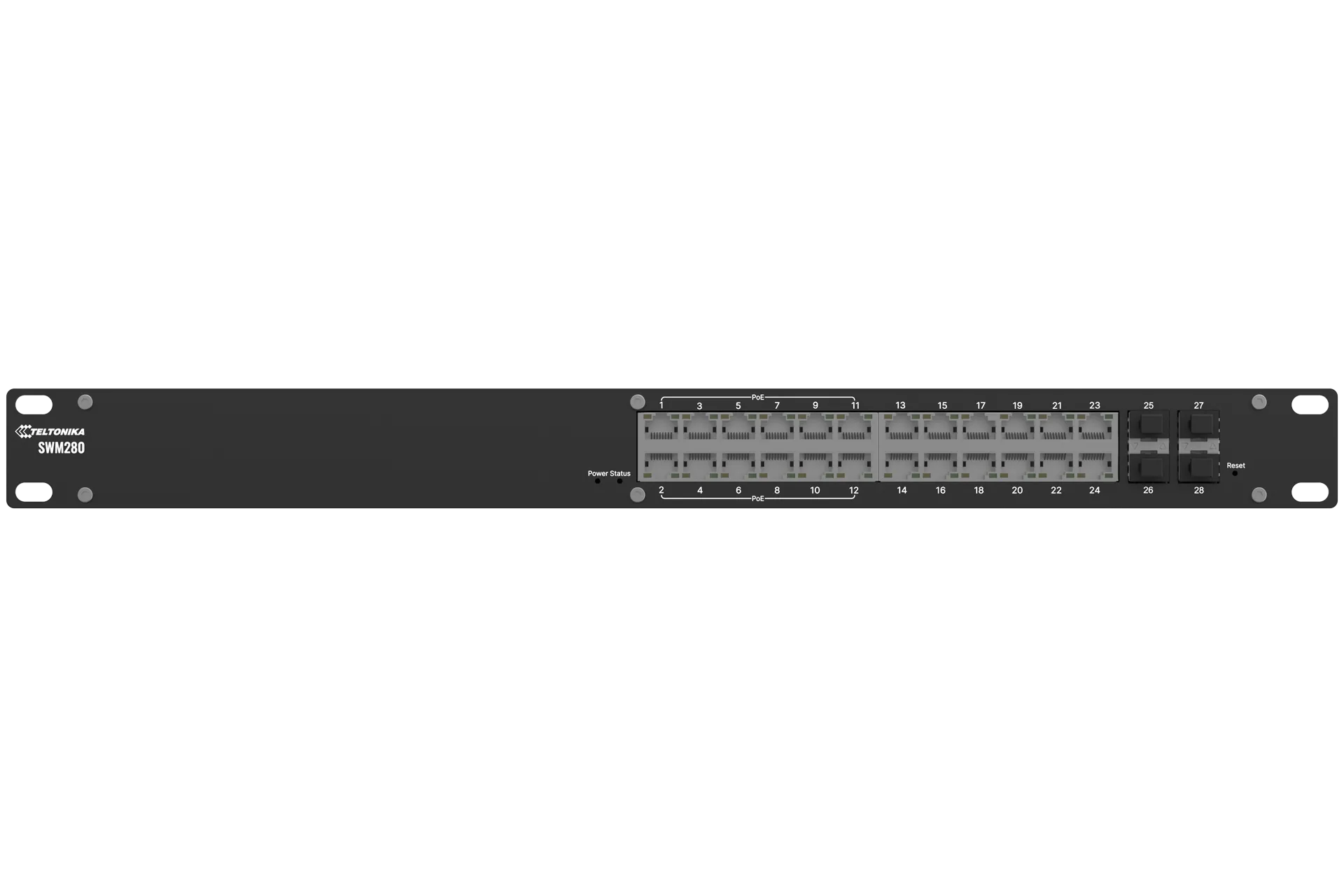

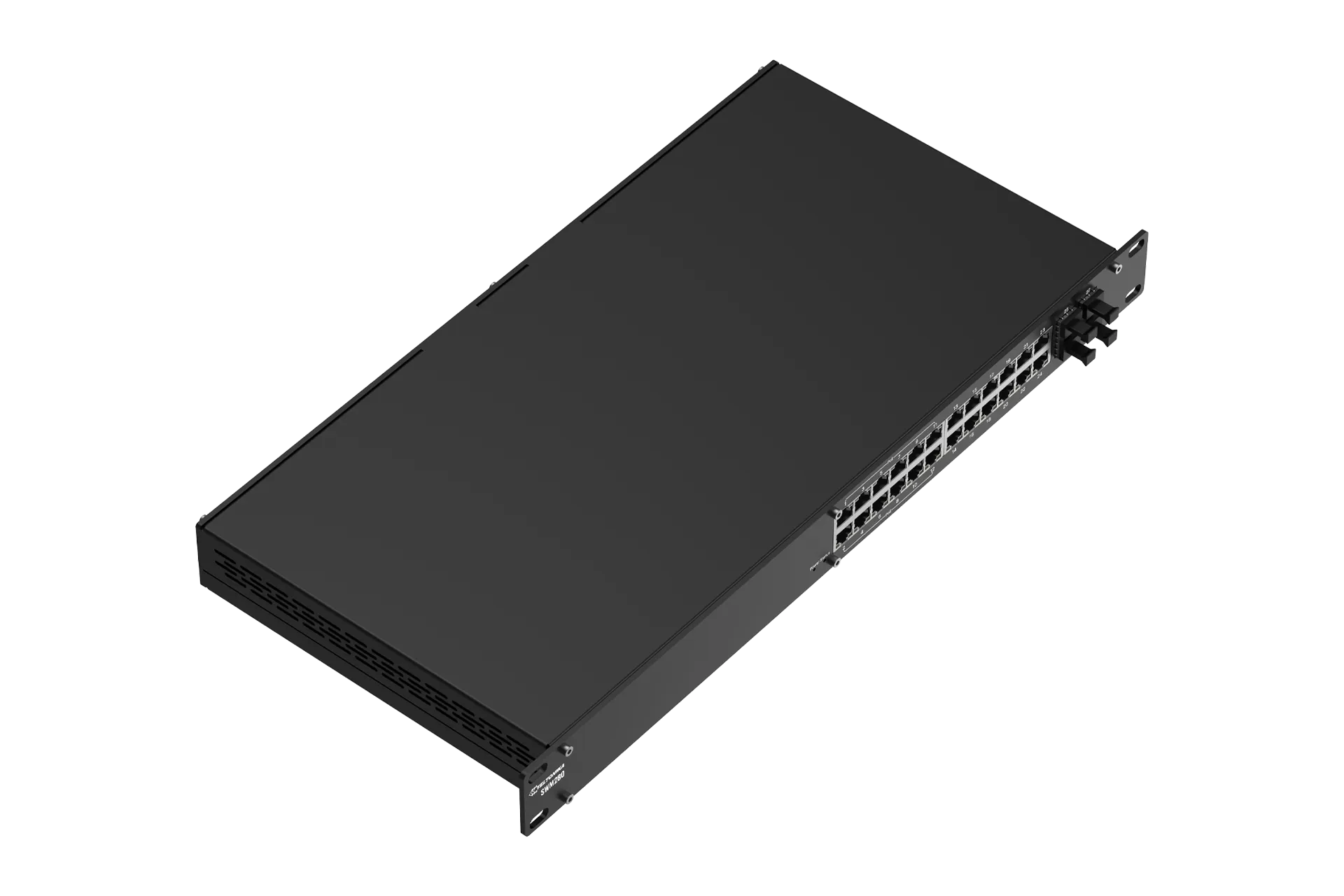

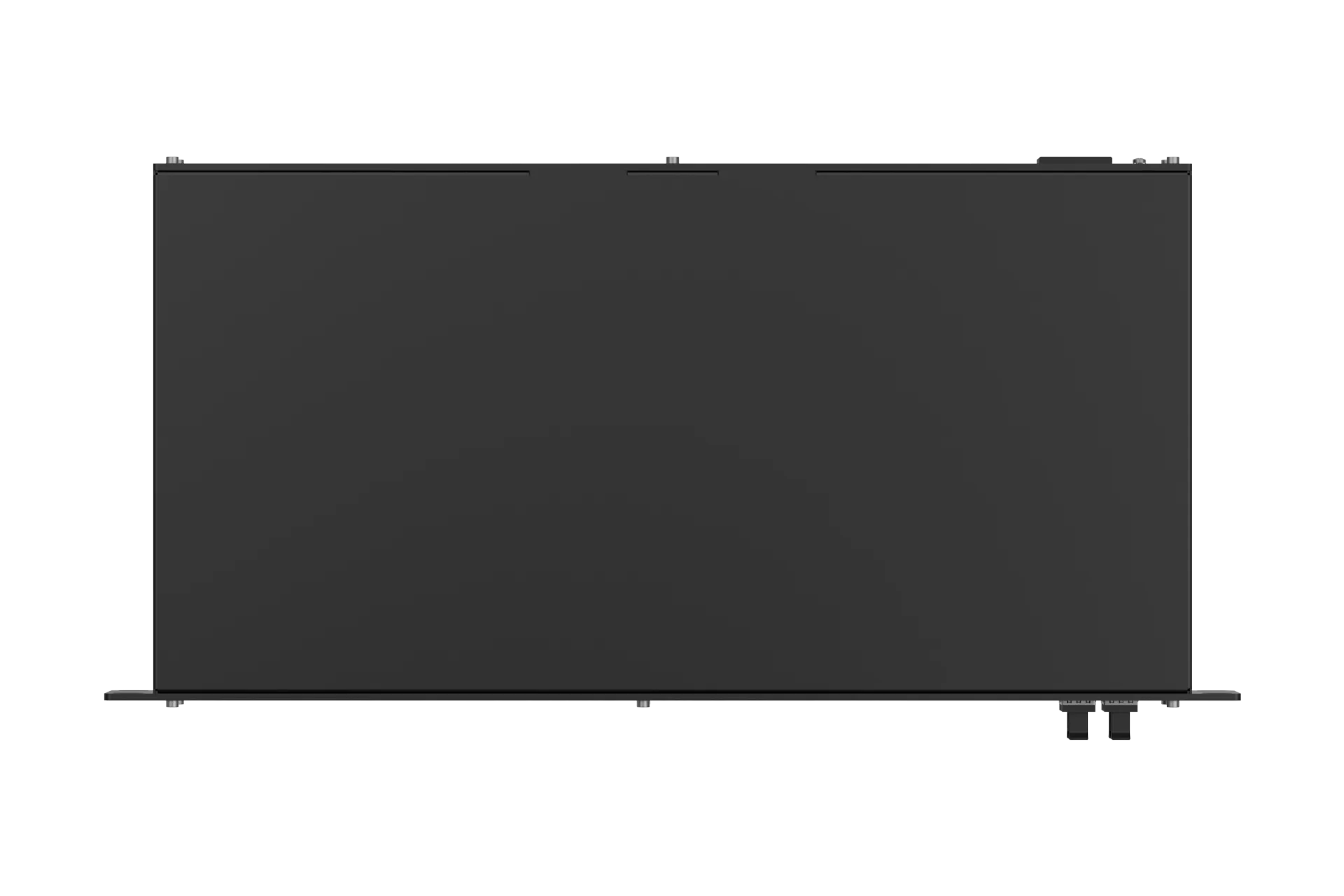

Teltonika SWM280 24-Port Gigabit Managed PoE+ Switch with 4 SFP Uplinks
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance, Flexible Network Control
Elevate your network's capabilities with the Teltonika SWM280, a powerful L2 managed switch with advanced L3 features designed for enterprise-grade performance and reliability. This versatile 24-port switch offers a hybrid connectivity solution, combining 12 PoE+ ports, 12 standard Gigabit Ethernet ports, and 4 SFP fiber uplinks to meet the demands of any modern network environment. It is engineered for superior traffic management, robust security, and seamless integration into industrial systems.
Dynamic Power and Data Distribution
The SWM280 simplifies your infrastructure by delivering both power and data over a single cable. It features 12 PoE+ (IEEE 802.3at/af) ports, providing up to 30W of power per port. With a generous total power budget of 300W, it's perfectly equipped to power IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices. The remaining 12 Gigabit Ethernet ports provide high-speed connectivity for workstations and other critical network devices that have their own power source.
Advanced Management & Industrial Protocol Support
Built with a foundation of Layer 2 features and enhanced with Layer 3 capabilities like static and dynamic routing (BGP, OSPF v2), the SWM280 gives you granular control over your network. It supports critical industrial protocols such as Profinet, EtherNet/IP, and MRP, ensuring seamless integration into mixed industrial environments. For simplified administration, the switch includes a complimentary 2-year subscription to the Teltonika Remote Management System (RMS), allowing for convenient remote monitoring, configuration, and control.
Comprehensive Specifications Table
| Ethernet & Fiber | |
|---|---|
| Ethernet Ports | 24 x RJ45 ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fiber Ports | 4 x SFP ports |
| IEEE Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| PoE (Power over Ethernet) | |
| PoE Ports | 12 ports (Ports 1-12) |
| PoE Standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Max Power per Port | 30 W |
| Total PoE Power Budget | 300 W |
| Network & Management | |
| L2 Features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| L3 Features | Static IPv4/IPv6 routing, DHCPv6 client |
| Dynamic Routing | BGP, OSPF v2, RIP v1/v2, EIGRP |
| Industrial Protocols | Profinet (Class B), EtherNet/IP, MRP (client/manager) |
| Management | WebUI, SNMP V2/V3, LLDP, Teltonika RMS (2 years included) |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 83.33 Mpps |
| System Characteristics | |
| CPU | Realtek, single core, 500MHz, MIPS-4KEc |
| RAM | 128 MB, DDR3 |
| Flash Storage | 16 MB serial flash |
| Power | |

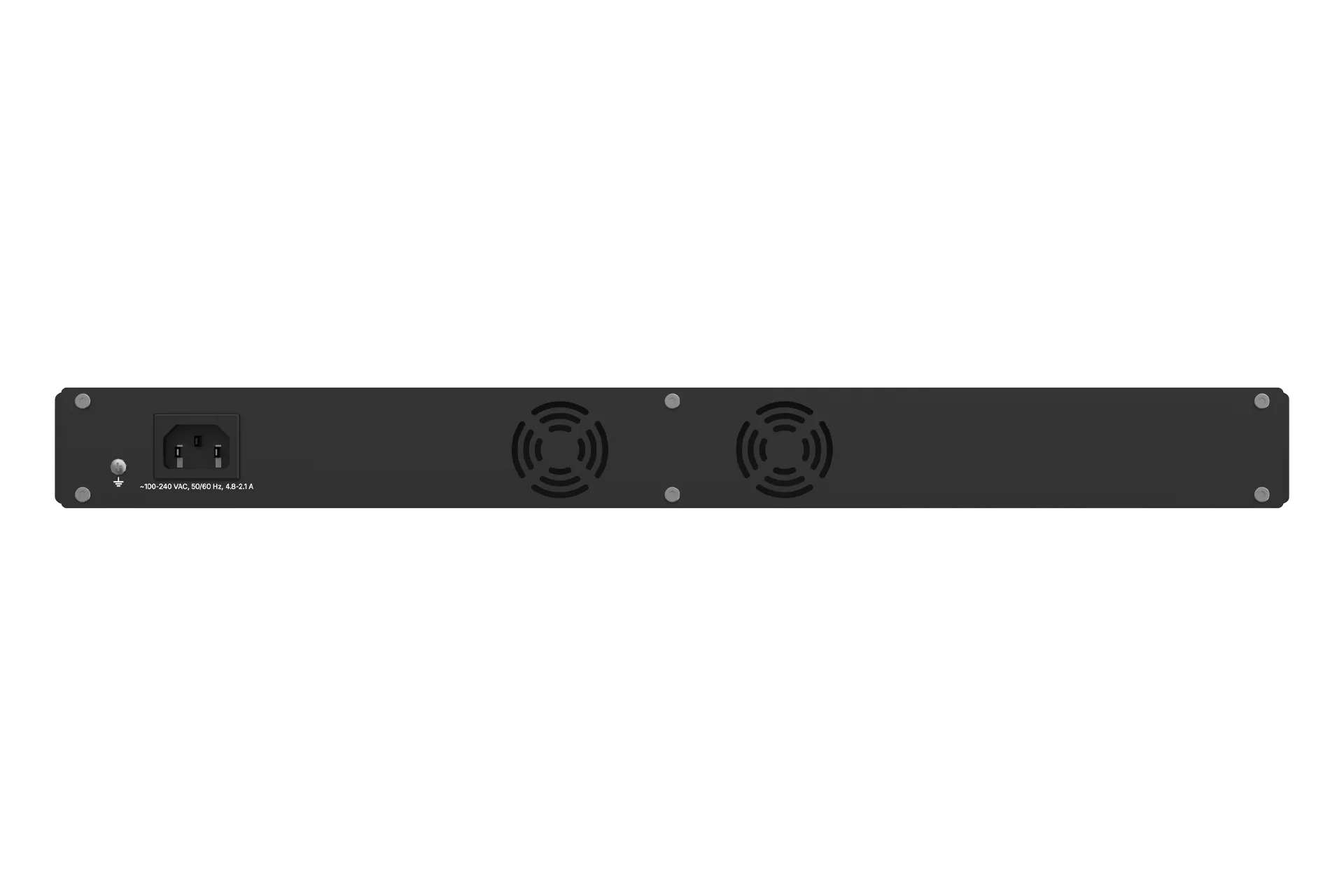

| Connector | C14 |
| Input Voltage Range | 100-240 VAC, 50/60 Hz |
| Power Consumption | Idle: 7.5 W / Max (with PoE): 325 W |
| Physical & Environmental | |
| Mounting | Integrated bracket for Rack mounting (1U size) |
| Operating Temperature | 0 °C to 50 °C |
| Operating Humidity | Up to 90% (non-condensing) |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
