Teltonika

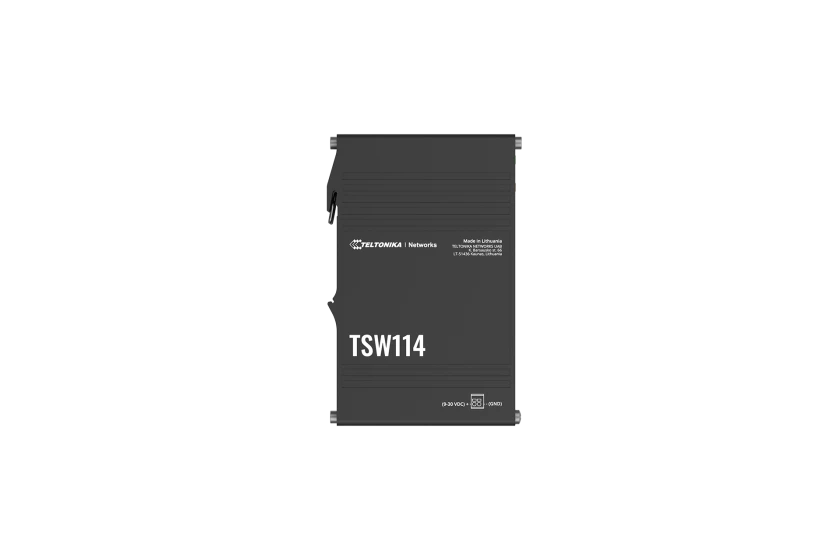

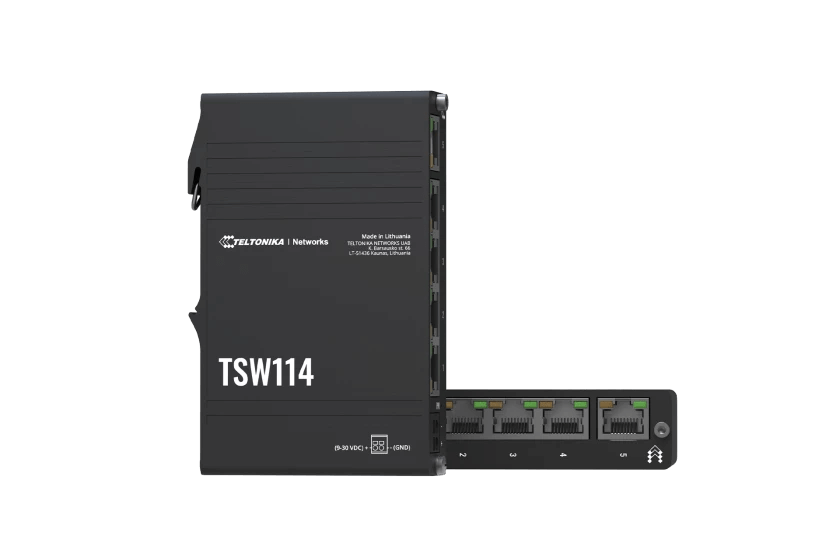

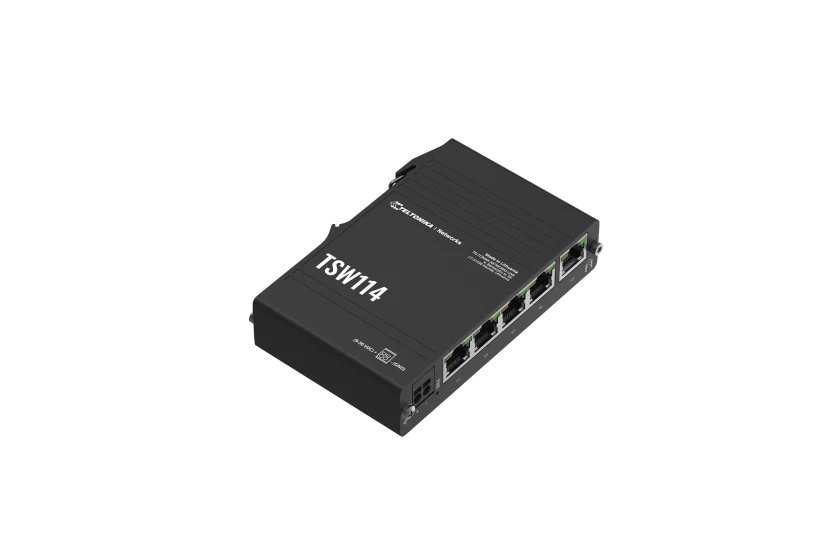

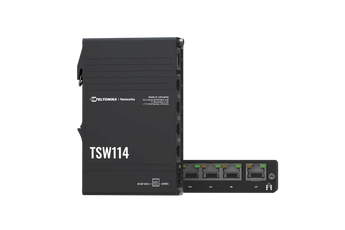

Teltonika TSW114 Industrial 5-Port Gigabit DIN Rail Ethernet Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Rugged, Compact Gigabit Connectivity for Industrial Environments
The Teltonika TSW114 is an unmanaged industrial Ethernet switch designed for high-speed, reliable connectivity in demanding applications. Encased in a durable anodized aluminum housing, this compact switch is built to withstand harsh conditions, with a wide operating temperature range of -40°C to 75°C. Its plug-and-play nature means it requires no configuration, making it an incredibly easy and affordable way to expand your network.
Engineered for Seamless Integration

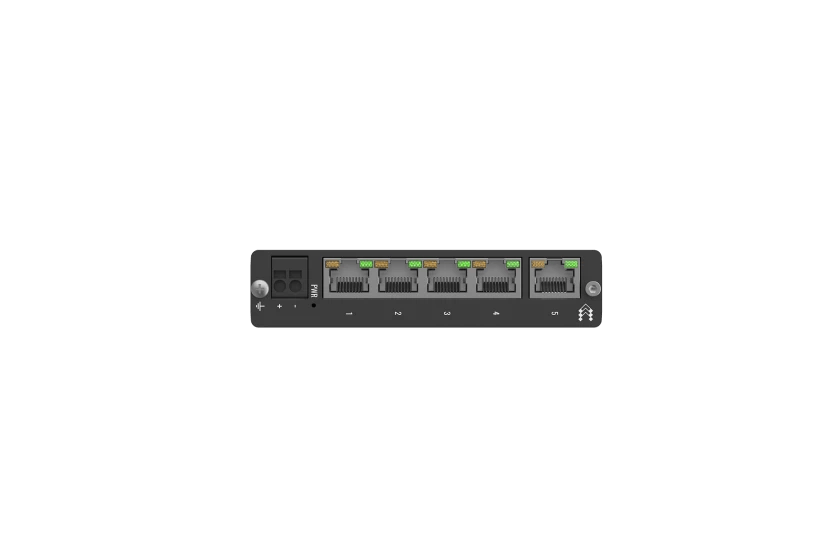

Designed for simplicity and efficiency, the TSW114 features 5 front-facing Gigabit Ethernet ports, allowing for easy installation and cable management in space-constrained control cabinets. The integrated DIN rail bracket ensures a quick and secure mounting process. This switch supports a wide power supply voltage range (9-30 VDC) and offers the flexibility of being powered via a standard 2-pin DC socket or through passive PoE on the first LAN port, simplifying wiring in complex setups.
High-Performance Networking
Don't let its size fool you. The TSW114 delivers robust performance with 5 Gigabit Ethernet ports offering speeds up to 1000 Mbps, a non-blocking bandwidth of 10 Gbps, and a 2K MAC address table. It's an ideal solution for high-bandwidth applications, providing stable and reliable connectivity for multiple Ethernet devices in manufacturing, warehousing, and other industrial settings.
Technical Specifications
| Category | Specification |
| Ethernet | |
| LAN Ports | 5 x RJ45 ports, 10/100/1000 Mbps |
| IEEE Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Features | Auto MDI/MDIX crossover support |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Power | |
| Connector | 1 x 2-pin industrial DC power socket |
| Input Voltage Range | 9 – 30 VDC |
| Power Consumption | Idle: 0.3 W / Max: 2.3 W |
| Passive PoE | Mode B, LAN1 Port, 9 - 30 VDC (Not compatible with IEEE 802.3af/at/bt) |
| Physical Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing Material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
| Weight | 174 g |
| Mounting | Integrated DIN rail bracket, wall mount (additional kit needed) |
| Operating Environment | |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
