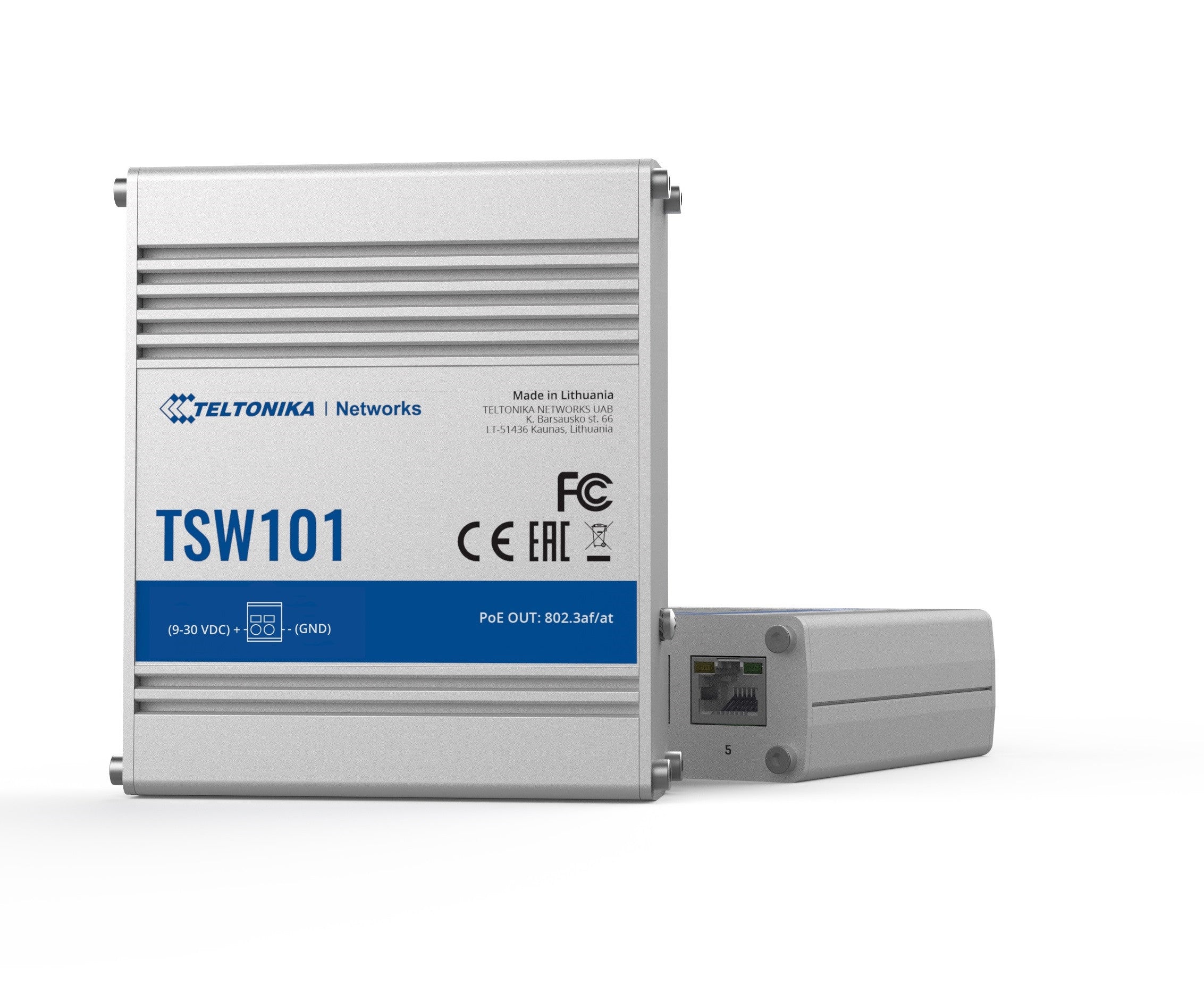

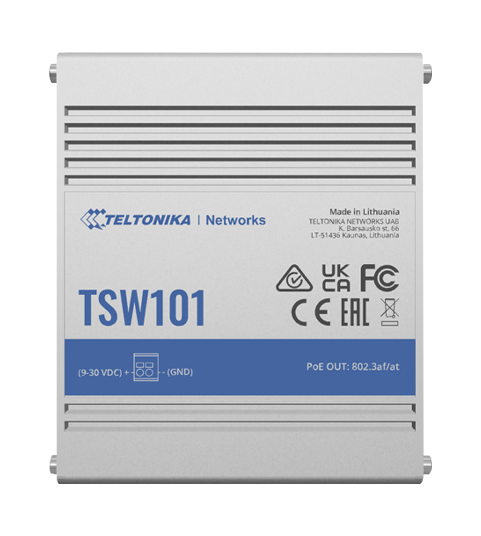

Teltonika TSW101 5-Port Gigabit PoE+ Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Connect Your In-Vehicle and Industrial Devices with a Robust, Compact Solution
The Teltonika TSW101 is a rugged, unmanaged Gigabit Ethernet switch specifically engineered for demanding automotive and industrial environments. This compact powerhouse provides both high-speed data connectivity and power over a single Ethernet cable, simplifying your installations and increasing reliability. It's the ideal solution for powering IP cameras, sensors, and other PoE-compatible devices in vehicles, machinery, and other challenging settings.
Centralized Power and High-Speed Performance
Featuring five Gigabit Ethernet ports, four of which support the IEEE 802.3af and 802.3at PoE+ standards, the TSW101 acts as a centralized power source (PSE). It delivers up to 30 watts of power per port, with a total power budget of 60 watts, making it capable of powering a wide array of devices. The switch boasts a non-blocking bandwidth of 10 Gbps, ensuring smooth and reliable data transmission for high-bandwidth applications.
Built for a Wide Range of Applications
The TSW101's wide power input voltage range of 9-30 VDC makes it perfectly suited for in-vehicle and various industrial applications. Its durable aluminum housing and wide operating temperature range of -40°C to 75°C ensure dependable performance even in the harshest conditions. The plug-and-play design allows for quick and effortless installation, getting your network up and running in no time.
| PoE | |
|---|---|
| PoE Ports | Ports 1-4 |
| PoE Standards | 802.3af and 802.3at |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 60 W |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 9-30 VDC |
| Power Consumption | Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W |
| Physical Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing Material | Anodized aluminum housing |
| Dimensions (W x H x D) | 115 x 32 x 95 mm |
| Mounting Options | DIN rail or wall-mountable (additional kits required), bottom or side |
| Operating Environment | |
| Operating Temperature | -40 °C to 75 °C |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
