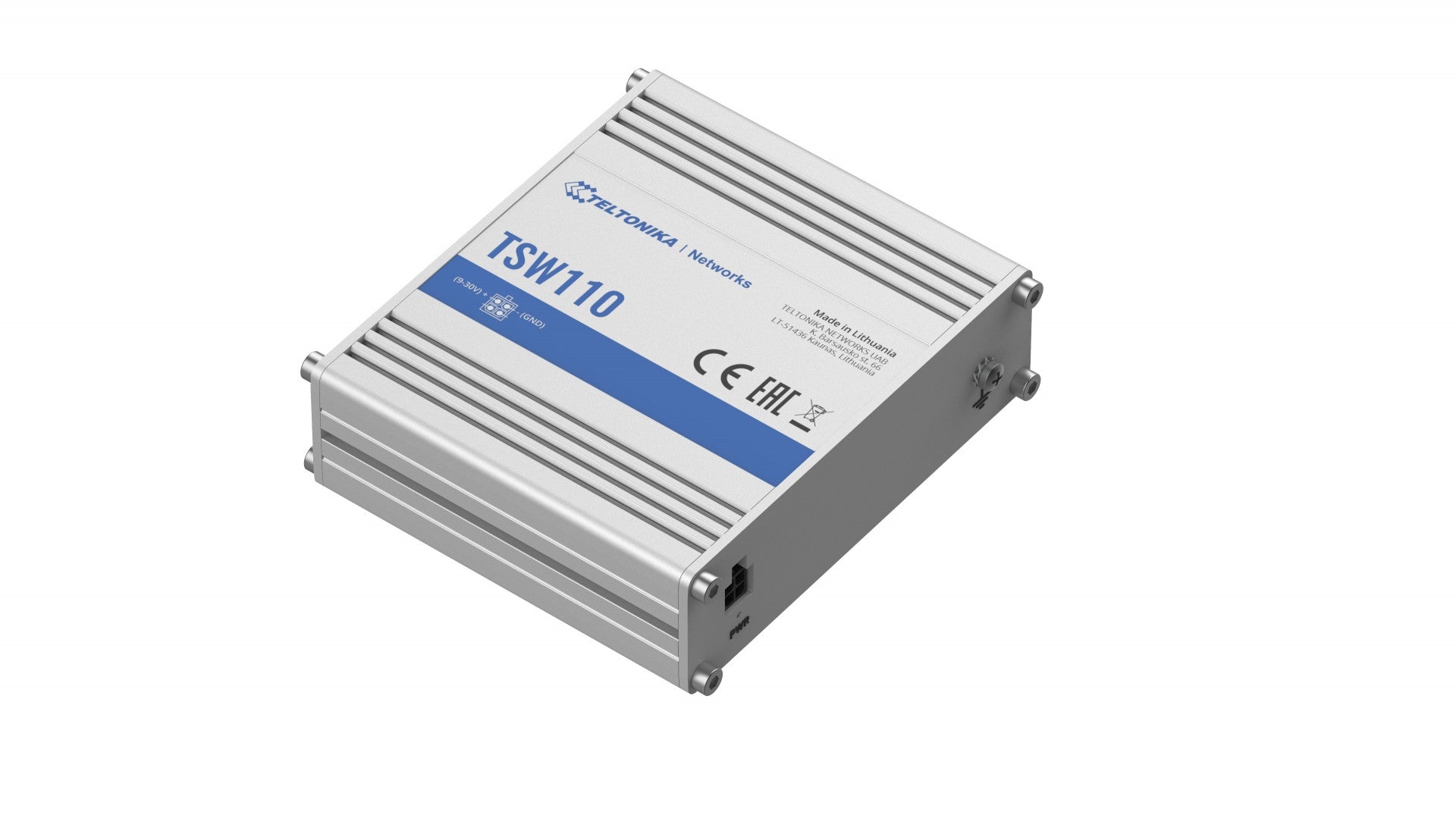

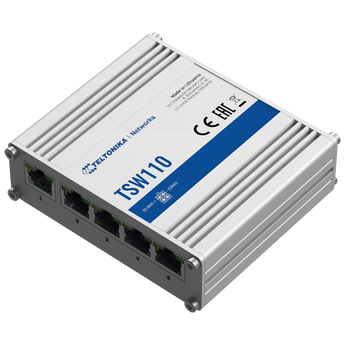

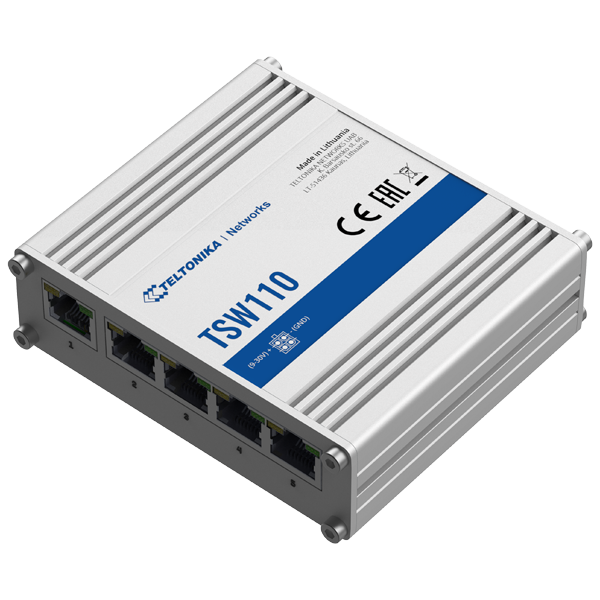

Teltonika TSW110 5-Port Gigabit Ethernet Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Plug-and-Play Gigabit Connectivity for Demanding Environments
The Teltonika TSW110 is a rugged, Layer 2 unmanaged switch designed for high-bandwidth professional applications. It provides a simple and economical solution for expanding your network with five Gigabit Ethernet ports, each offering speeds up to 1000 Mbps. As a plug-and-play device, it requires no configuration, allowing for instant connectivity right out of the box. Simply connect your devices to immediately expand your network capabilities.
Built for Industrial Durability
Engineered for harsh conditions, the TSW110 features a full aluminum housing that ensures durability and resilience in industrial settings. This robust construction, combined with an IP30 ingress protection rating, makes it ideal for factories, control cabinets, warehouses, and other challenging environments. It is designed to withstand extreme temperatures, with an operating range of -40°C to 75°C, and is resistant to vibrations.
Flexible Powering and Mounting Options
The TSW110 offers versatile power options, supporting a wide input voltage range of 9-30 VDC through its 4-pin industrial power socket. For added convenience, it can also be powered via passive PoE through the first LAN port, simplifying installation where power outlets are scarce. Its compact design (100 x 30 x 85 mm) and multiple mounting options, including DIN rail and surface mounting, allow for easy integration into space-constrained locations.
High-Performance Networking
With a non-blocking bandwidth of 10 Gbps, a 2K MAC address table, and support for 9216-byte jumbo frames, the TSW110 ensures smooth and reliable data transmission for high-demand applications. Its energy-efficient design keeps power consumption low, at less than 1.8W under maximum load, making it a cost-effective choice for continuous operation.
Technical Specifications
| Ethernet | |
| LAN | 5 x RJ45 ports, 10/100/1000 Mbps |
| Standards Compliance | IEEE 802.3, IEEE 802.3u, 802.3az |
| Features | Auto MDI/MDIX crossover support |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (Passive) | Passive PoE through LAN port 1 (not compatible with IEEE 802.3af/at/bt) |
| Power Consumption | Idle: < 0.4 W / Max: < 1.8 W |
| Physical Interfaces | |
| Ethernet Ports | 5 x RJ45, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Power | 1 x 4-pin DC connector |
| Ground | 1 x Grounding screw |
| Physical Specification | |
| Casing Material | Full aluminum housing |
| Dimensions (W x H x D) | 100 x 30 x 85 mm |
| Weight | 227 g |
| Mounting Options | DIN rail or wall mounting (additional kit may be needed), flat surface placement |
| Operating Environment | |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
