Teltonika

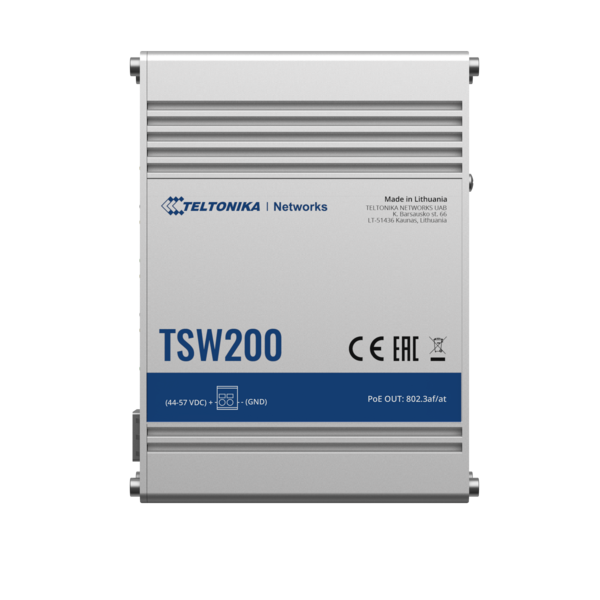

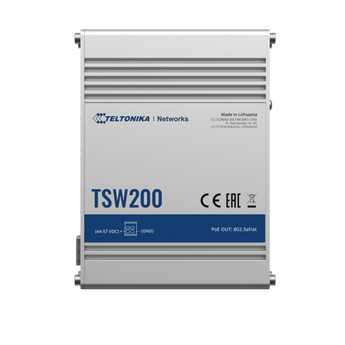

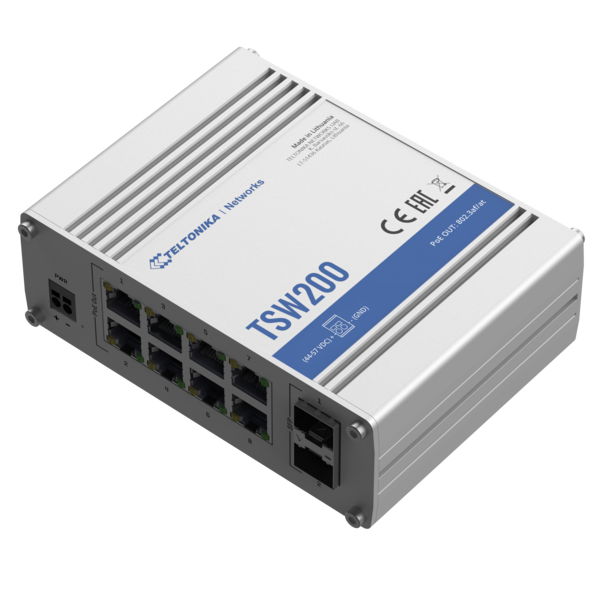

Teltonika TSW200 Industrial Unmanaged 8-Port Gigabit PoE+ Switch with 2 SFP Ports
Pickup available at NexGen Computing
Usually ready in 24 hours
Harness Unyielding Network Power and Flexibility
Experience robust, high-performance connectivity with the Teltonika TSW200, an industrial-grade unmanaged Ethernet switch engineered for demanding environments. This powerhouse device is designed to be the core of your high-bandwidth network, providing both reliable data transmission and intelligent power delivery for a multitude of professional applications. With a formidable 240W total power budget, the TSW200 effortlessly powers devices like IP cameras, VoIP phones, and wireless access points, streamlining your installation and reducing infrastructure complexity.
Built for Industrial Resilience
The TSW200 is not your average network switch. Encased in a rugged, full aluminum housing, it's built to withstand harsh conditions. It boasts a wide operating temperature range of -40°C to 75°C and an IP30 ingress protection rating, ensuring dependable operation in factories, warehouses, and other challenging settings. Its fanless design ensures silent operation, while flexible mounting options, including DIN rail and wall mounting (with an additional kit), allow for seamless integration into any setup.
Gigabit Speeds and Fiber Optic Expansion

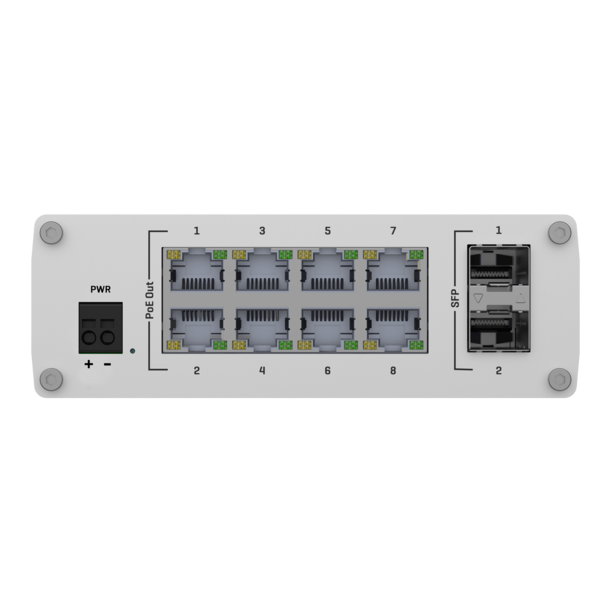

Unleash the full potential of your network with eight Gigabit Ethernet ports, delivering speeds up to 1000 Mbps for an economical, high-bandwidth solution. For long-range communication and enhanced security, the TSW200 is equipped with two SFP ports, offering a reliable fiber-optic interface that is future-proof and ready for higher bandwidth demands. With a non-blocking bandwidth of 20 Gbps, this switch ensures smooth and efficient data flow, even under heavy traffic loads.
Effortless PoE+ Implementation
Classified as Power Source Equipment (PSE), the TSW200 centralizes your power supply. Its eight PoE+ ports support both IEEE 802.3af and 802.3at standards, providing up to 30W of power per port. This plug-and-play solution simplifies the deployment of powered devices, eliminating the need for separate power cables and reducing installation costs.
| Ethernet & Fiber | |
|---|---|
| Ethernet Ports | 8 x RJ45, 10/100/1000 Mbps |
| Fiber Ports | 2 x SFP Ports |
| Power over Ethernet (PoE) | |
| PoE Standards | IEEE 802.3af and 802.3at |
| PoE Ports | 8 x PoE+ Ports |
| Max Power per Port | 30 W |
| Total PoE Power Budget | 240 W |
| Performance Specifications | |
| Bandwidth (Non-Blocking) | 20 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table | 2K Entries |
| Jumbo Frame Support | 9216 bytes |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 7-57 VDC |
| Input Voltage Range for PoE | 44-57 VDC |
| Power Consumption | Idle: <2 W, Max (no PoE): <9 W |
| Physical & Environmental | |
| Housing | Full Aluminum Housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 456 g |
| Mounting | Desktop, Wall, or DIN Rail (additional kit required) |
| Operating Temperature | -40 °C to 75 °C |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
