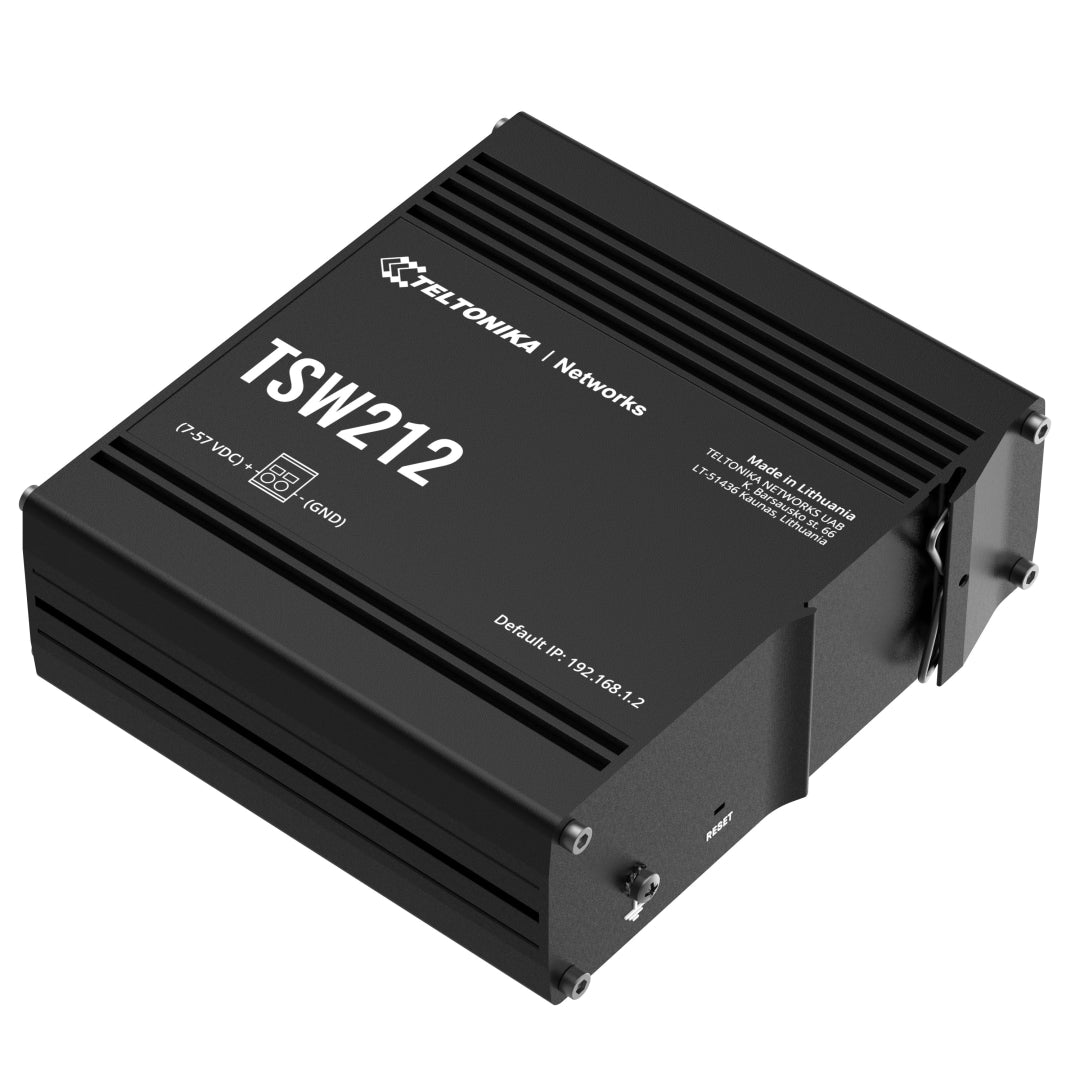

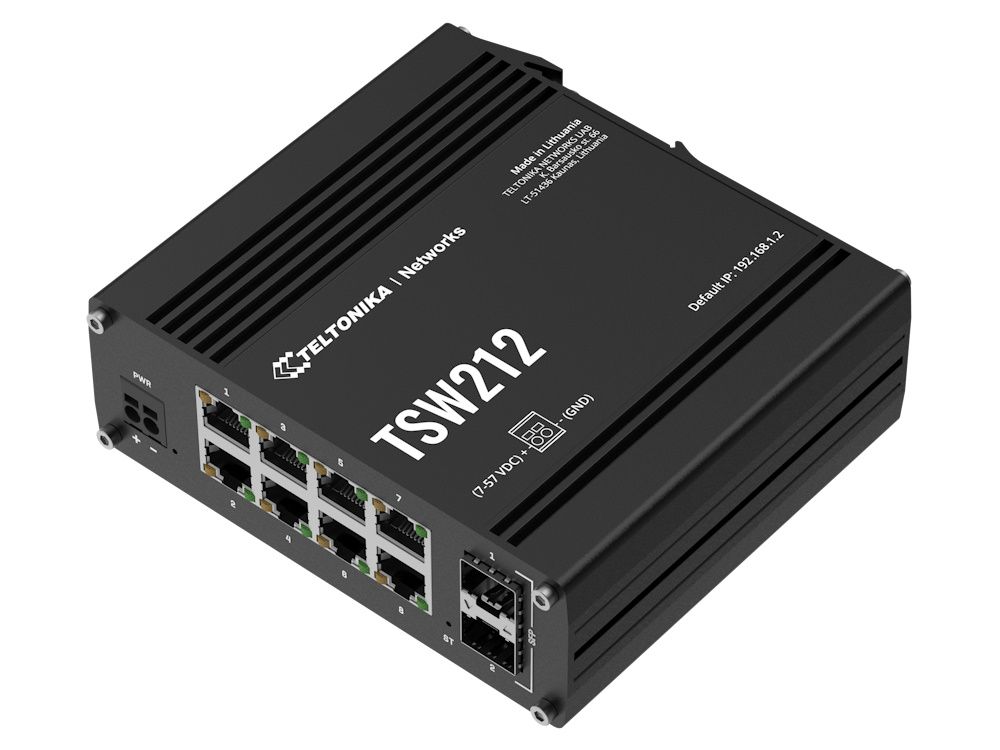

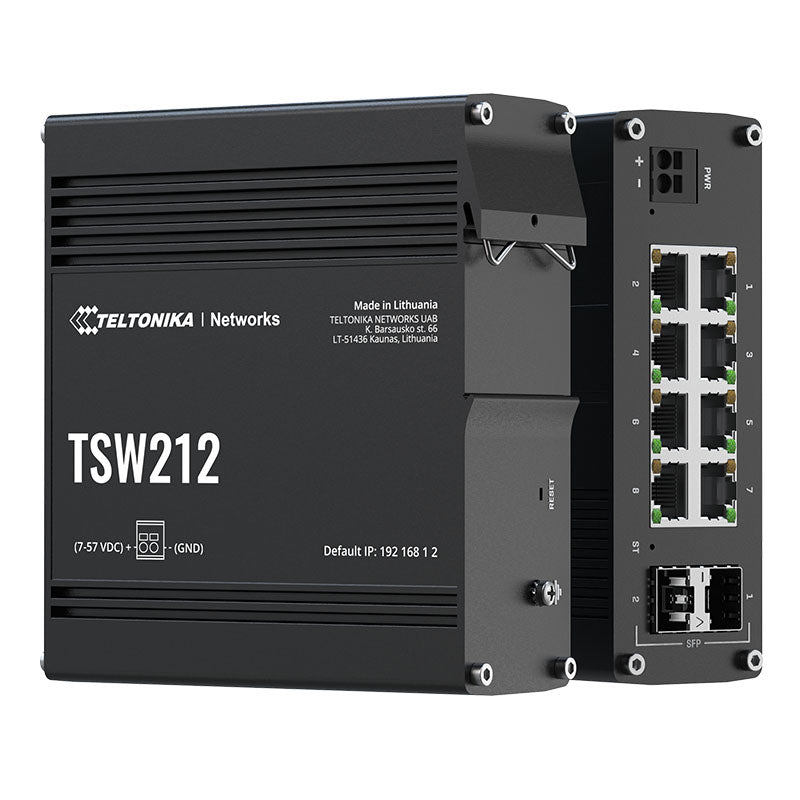

Teltonika TSW212 L2 Managed Switch, 8x GbE, 2x SFP
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Performance Industrial Networking with Advanced Management
The Teltonika TSW212 is a professional-grade, Layer 2 managed Ethernet switch engineered to excel in demanding industrial environments. It provides a robust foundation for your network with 8 Gigabit Ethernet ports for high-speed device connectivity and 2 SFP ports for long-range fiber optic communication. This switch is designed for seamless integration into automation systems, supporting a wide range of industrial protocols including EtherNet/IP, PROFINET (Class B), and Media Redundancy Protocol (MRP). With a non-blocking bandwidth of 20 Gbps and a forwarding rate of 14.88 Mpps, the TSW212 ensures efficient, high-speed data transmission for critical applications.
Built for Harsh Environments
Encased in a rugged, anodized aluminum housing with an IP30 ingress protection rating, the TSW212 is built for durability and reliability. It is designed to operate flawlessly in extreme temperatures, with a wide operating range of -40°C to 75°C, making it a perfect solution for manufacturing, transportation, and energy sector applications. Installation is versatile and straightforward, with an integrated DIN rail bracket and options for wall or flat surface mounting.
Advanced Control and Configuration
The TSW212 is more than just a Layer 2 switch; it includes valuable Layer 3 features like DHCPv6 client support and static IPv6 routing for enhanced network management. It runs on Teltonika's proprietary TSWOS (an OpenWrt-based Linux OS), which provides an intuitive, web-based interface for infinite configuration possibilities. Manage your network with precision using features like VLAN support, Quality of Service (QoS), loop protection, STP/RSTP, and port mirroring to enhance security and efficiency.
Technical Specifications
| Ethernet | |

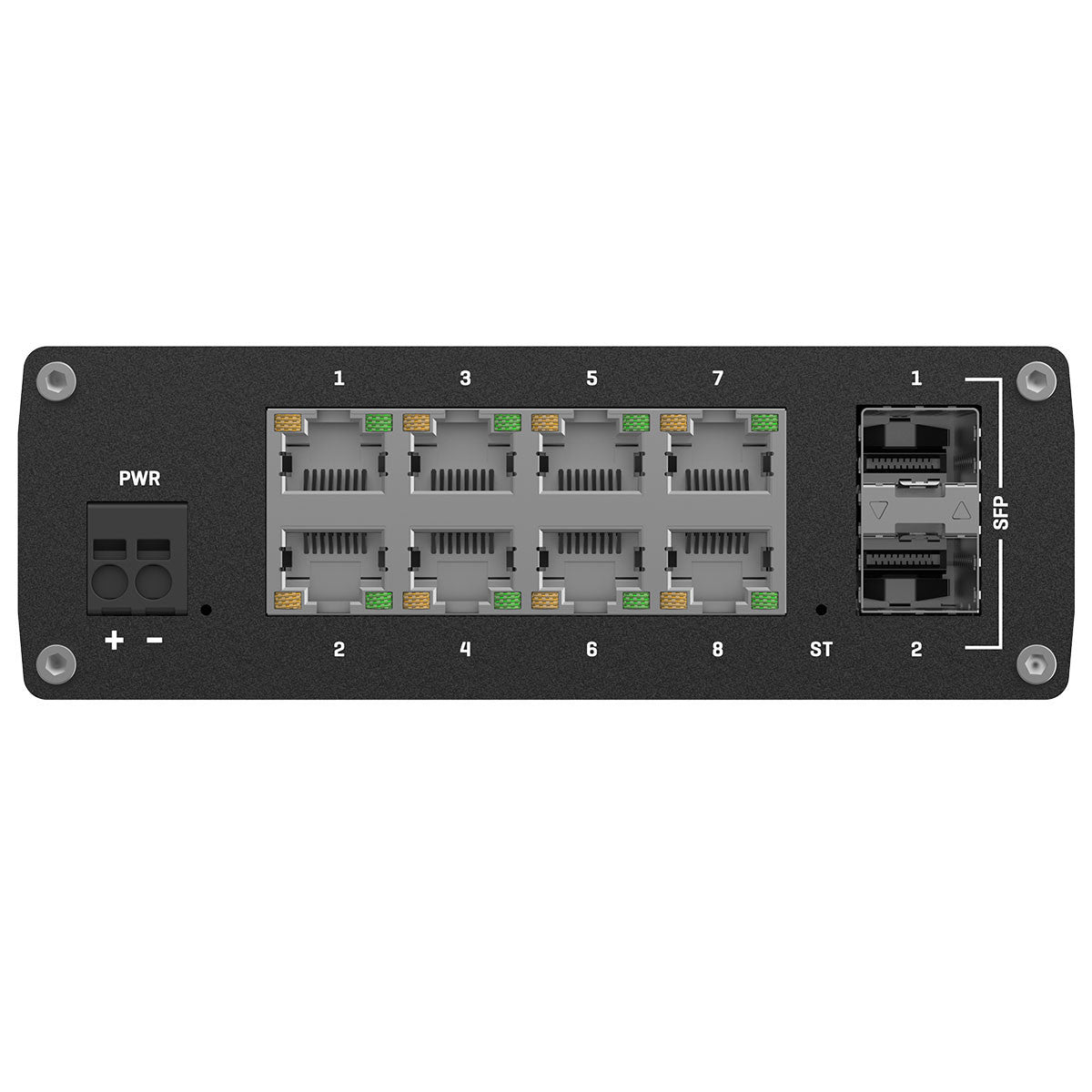

| LAN | 8 x RJ45 ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fiber | 2 x SFP ports |
| IEEE Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p, 802.1Q, 802.3az |
| Performance | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet Buffer | 512 KB |
| MAC Address Table Size | 8K entries |
| Forwarding Rate | 14.88 Mpps |
| Jumbo Frame Support | 10,000 bytes |
| Services & Protocols | |
| Management | Web GUI, SNMP, Telnet, RMS |
| Industrial Protocols | EtherNet/IP, PROFINET (Class B), MRP |
| Network Protocols | VLAN, STP/RSTP, QoS, Port Mirroring, Loop Protection |
| L3 Features | DHCPv6 client, Static IPv4/IPv6 routing |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 7 - 57 VDC |
| Power Consumption | Idle: < 2.5 W, Max: 6 W |
| Physical & Environmental | |
| Casing Material | Anodized aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 615 g |
| Mounting | Integrated DIN rail bracket, wall mountable |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
